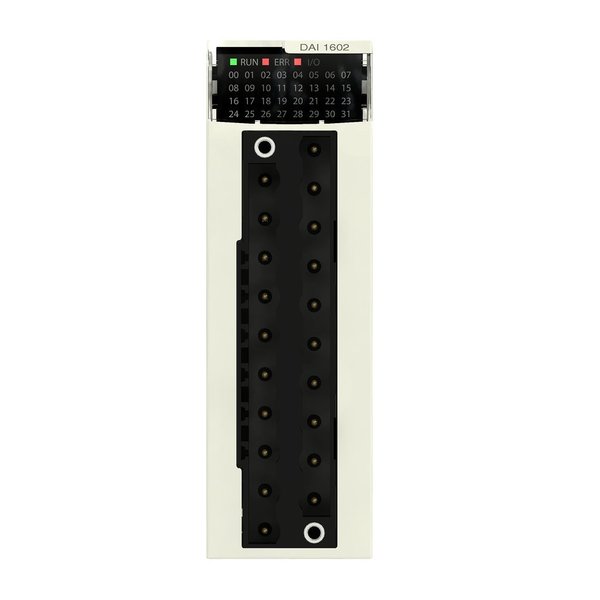

Discrete input module X80-16 inputs-

SKU
Brand Schneider Electric
Categories
Description Discrete input module X80 - 16 inputs -
graingerSKU: , mscSKU: , zoro_no: G700422765, mongo_id: 65bbe92822d7a989a993aee3

Web Price

$577.49 / each

Qty

Product Details

Ac Activation Filtering Time 15 ms

Ac Deactivation Filtering Time 20 ms

Ambient Air Temperature For Operation 0-60 ÃÂ°C

Ambient Air Temperature For Storage -40-85 ÃÂ°C

Country of Origin (subject to change) France

Current State 0 Guaranteed <= 1 mA AC || <= 0.5 mA DC

Current State 1 Guaranteed >= 2 mA AC || >= 2 mA DC

Dielectric Strength 1500 V AC 50/60 Hz 1 minute, primary/secondary

Discrete Input Current 3 mA 24 V AC || 3.9 mA 24 V DC

Discrete Input Number 16

Discrete Input Type isolated

Discrete Input Voltage 24 V DC positive or negative || 24 V AC

Height 2.2

Input Compatibility with 2-wire/3-wire proximity sensors IEC 60947-5-2 || with 2-wire/3-wire proximity sensors AC IEC 61131-2 Type 1

Input Impedance 6 kOhm

Input Type resistive

Insulation Resistance > 10 MOhm 500 V DC

Ip Degree Of Protection IP20

Length 4.7

Mtbf Reliability 1125000 H

Network Frequency 50/60 Hz

Network Frequency Limits 47-63 Hz

Operating Altitude 0 to 6561.68 ft (0 to 2000 m) || 2000 to 5000 m with derating factor

Package Quantity 1

Paralleling Of Inputs no

Power Dissipation In W 3 W

Product Or Component Type discrete input module

Protection Type 1 external fuse per group of channel 0.5 A fast blow

Relative Humidity 5-95 % 55-55 ÃÂ°C without condensation

Shock Resistance 30 gn

Status Led 1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O

Typical Current Consumption 76 mA 3.3 V DC

Vibration Resistance 3 gn

Voltage Detection Threshold < 14 V AC/DC sensor fault || > 18 V AC/DC sensor OK

Voltage Range 20 to 26 V AC || 19 to 30 V DC

Width 4.4
