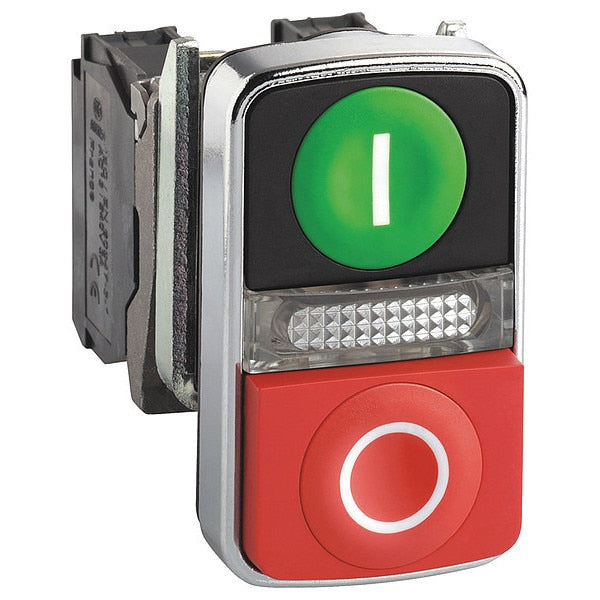

Double Headed Push Button, 22 mm, 1 NO/1 NC, Rectangle

SKU
Brand Schneider Electric
Categories
Description Double Headed Push Button, Basic Material Metal, Number of Heads 2, Legend/Background Color White/Green, White/Red, Lamp Voltage 240V AC, Lamp Type LED, Type of Operator (1) Flush Button, (1) Projecting, Contact Form 1 NO/1 NC, Size 22 mm, Legend I, O, Action Momentary / Momentary, Contact Rating 0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC, NEMA Contact Rating Designation A600/Q600, Lamp Module Voltage 230 to 240V AC, Shape Rectangle
graingerSKU: , mscSKU: , zoro_no: G3465945, mongo_id: 65bbe5af3aaddbd5a9fdc0ed

Web Price

$148.74 / each

Qty

Product Details

Action Momentary / Momentary

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Material chromium plated metal

Bulb Base integral LED

Colour Of Marking black marking when white caps || white marking when green, red or black caps

Compatibility Code XB4

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 1 NO/1 NC

Contact Operation slow-break

Contact Rating 0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO + 1 NC

Contacts Usage standard contacts

Country of Origin (subject to change) France

Current Consumption 14 mA

Device Presentation complete product

Device Short Name XB4

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4

Electrical Shock Protection Class class I IEC 60536

Electromagnetic Emission class B IEC 55011

Fixing Collar Material zamak

Head Type standard

Ik Degree Of Protection IK06 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP69K IEC 60529 || IP69 IEC 60529

IP Rating 66, 69, 69K

Lamp Module Voltage 230 to 240V AC

Lamp Type LED

Lamp Voltage 240V AC

Legend I, O

Legend/Background Color White/Green, White/Red

Light Source protected LED

Light Source Colour white

Mechanical Durability 1000000 cycles

Mounting Diameter 22 mm

NEMA Contact Rating Designation A600/Q600

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 13, 4X

Number of Heads 2

Operating Force 3.5 N NC changing electrical state || 3.8 N NO changing electrical state

Operating Travel 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Operator Profile green flush, I white) || red projecting, O white), 1 flush - 1 projecting push-buttons - 1 central pilot light

Operators Description green ''I'' - red ''O''

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications DNV || LROS (Lloyds register of shipping) || UL Listed || GL || CSA || BV

Product Or Component Type illuminated double-headed push-button

Protective Treatment TH

Resistance To Electromagnetic Fields 10 V/m IEC 61000-4-3

Resistance To Electrostatic Discharge 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Resistance To Fast Transients 2 kV IEC 61000-4-4

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Rectangle

Shape Of Screw Head cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head rectangular

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Signalling Type steady

Size 22 mm

Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508

Supply Voltage Limits 195-264 V AC

Surge Withstand 1 kV IEC 61000-4-5

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator (1) Flush Button, (1) Projecting

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1

[Us] Rated Supply Voltage 230 to 240 V AC 50/60 Hz
