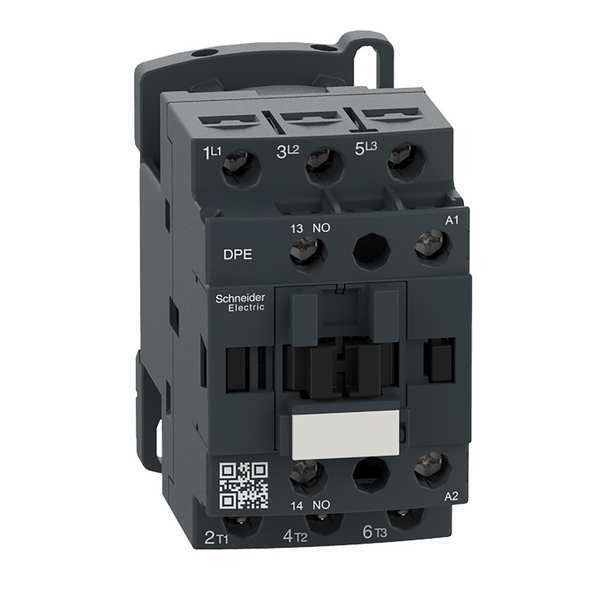

Easy TeSys, 3 Poles, 24 V AC, 12 A, Reversing: No

Easy TeSys, 3 Poles, 24 V AC, 12 A, Reversing: No

  • Schneider Electric
  • IEC Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V AC, Number of Poles 3, Full Load Current - Inductive 12 A, Full Load Current - Resistive 12 A, Reversing Capability Non-Reversing, Overall Height 3.03 in, Overall Width 1.77 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys Easy, Number of Auxillary Contacts 1, Contactor Style IEC, Horsepower @ Three Phase - 240V AC 2 hp

    graingerSKU: 787P14, mscSKU: , zoro_no: G803481133, mongo_id: 65bbe8219a749db822776304

Web Price
$41.11 / each
Qty

Product Details

Motor Control, Resistive Load
1NO
1NO
24V AC
24 V AC
IEC
Drop-Out: 0.3 to 0.6 Uc (at 70°C 50/60 Hz); Operational: 0.8 to 1.1 Uc (at 60°C 50 Hz 0.85 to 1.1 Uc (at 60°C 60 Hz), 1 to 1.1 Uc (at 70°C 50/60 Hz)
Indonesia
3.39 in
Screw Clamp Terminals
0.6 Mcycles (25 A, AC-1, Less than 440 V); 1 Mcycles (12 A, AC-3, Less than 440 V)
1,000,000, 600,000
No
3R; 4
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Without Built-In Suppressor Module
TeSys
50/60 Hz
12 A
12 A
12 A
12 A
10 A (Signalling Circuit), 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit)
3.03 in
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
1/3 hp
1 hp
2 hp
2 hp
5 hp
7 1/2 hp
33/100 hp
1 hp
2 hp
2 hp
5 hp
7 1/2 hp
50/60 Hz
2.5 mOhm
6 kV
Not Applicable
Yes
70 VA
Greater Than 10 MOhms (Signalling Circuit)
IP20
3 kW (at 220 to 230V AC 50/60 Hz), 5.5 kW (at 380 to 400V AC 50/60 Hz), 5.5 kW (at 415V AC 50/60 Hz), 5.5 kW (at 440V AC 50/60 Hz), 7.5 kW (at 500V AC 50/60 Hz), 7.5 kW (at 660 to 690V AC 50/60 Hz)
850°C
140 Degrees F
690V AC
10 Mcycles
10,000,000
-40 Degrees F
DIN Rail, Plate
Plate, Rail
No Enclosure
Not Applicable
0.32 kg
1.5 ms
1
3
3
3600 cycles per hr
12 to 22 ms (Closing), 4 to 19 ms (Opening)
3.39 in
3.03 in
1.77 in
CAT III
1
250 A @ 440V
600/690V
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
690V AC, 300V DC
Fire Resistant, Insulation Resistant
No
Non-Reversing
TeSys Easy
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
25 to 400 Hz
Overvoltage Category III; Minimum Switching Voltage 17 V Signalling Circuit; Insulation Resistance 10 MOhm Signalling Circuit
CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL Listed, UL 60947-4-1
5 mA (Signalling Circuit)
17 V (Signalling Circuit)
Screw Clamp Terminals
25 A (at 60°C Power Circuit), 10 A (at 60°C Signalling Circuit)
1.7 Nm
4 G (Contactor Closed), 2 G (Contactor Open)
2 to 3W
1.77 in
Up to 6561.68 ft
