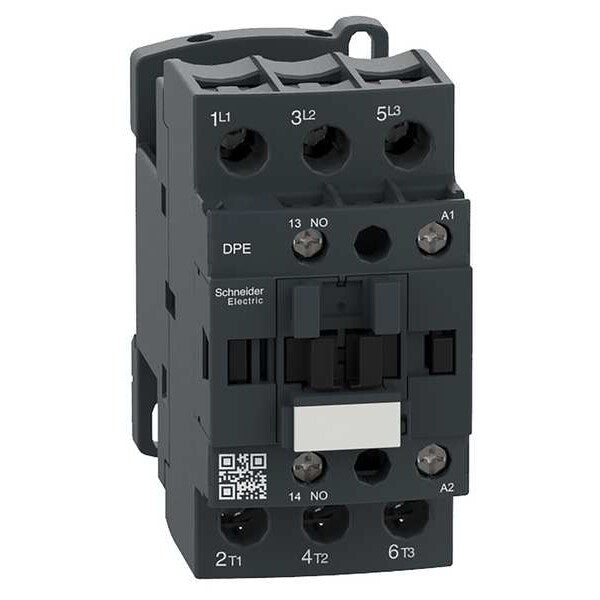

Easy TeSys, 3 Poles, 24 V AC, 32 A, Reversing: No

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V AC, Number of Poles 3, Full Load Current - Inductive 32 A, Reversing Capability Non-Reversing, Overall Height 3.35 in, Overall Width 1.77 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys Easy, Number of Auxillary Contacts 1, Contactor Style IEC, Horsepower @ Three Phase - 240V AC 7 1/2 hp
graingerSKU: 787P26, mscSKU: , zoro_no: G203481092, mongo_id: 65bbe6673aaddbd5a9029db8

Web Price

$76.44 / each

Qty

Product Details

Ambient Air Temperature For Operation -40 to 140ÃÂ°F (-40 to 60ÃÂ°C)

Ambient Air Temperature For Storage -76 to 176ÃÂ°F (-60 to 80ÃÂ°C)

Application Motor Control, Resistive Load

Associated Fuse Rating 10 A gG for signalling circuit conforming to IEC 60947-5-1; 63 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 40 A gG at Less than or Equal to 690 V coordination type 2 for power circuit

Aux. Contact Configuration 1NO

Auxiliary Contact Composition 1 NO

Auxiliary Contact Form 1NO

Auxiliary Contacts Type Mechanically linked 1 NO IEC 60947-5-1

Average Impedance 2 mOhm - Ith 40 A 50 Hz for power circuit

Coil Voltage 24V AC

Coil Volts 24 V AC

Connections - Terminals Control circuit: screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 0.00 to 0.00 inÃÂ² (1 to 2.5 mmÃÂ²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 inÃÂ² (2.5 to 10 mmÃÂ²) - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 0.00 to 0.02 inÃÂ² (2.5 to 10 mmÃÂ²) - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 inÃÂ² (1 to 10 mmÃÂ²) - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1.5 to 6 mmÃÂ²) - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 inÃÂ² (1.5 to 10 mmÃÂ²) - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 2 0.00 to 0.02 inÃÂ² (2.5 to 10 mmÃÂ²) - cable stiffness: solid without cable end

Contactor Application Resistive load; Motor control

Contactor Style IEC

Control Circuit Type AC 50/60 Hz

Control Circuit Voltage 24 V AC 50/60 Hz

Control Circuit Voltage Limits Drop-Out: 0.3 to 0.6 Uc (at 70ÃÂ°C 50/60 Hz); Operational: 0.8 to 1.1 Uc (at 60ÃÂ°C 50 Hz 0.85 to 1.1 Uc (at 60ÃÂ°C 60 Hz), 1 to 1.1 Uc (at 70ÃÂ°C 50/60 Hz)

Conventional Free Air Thermal Current 10 A (at 140ÃÂ°F (60ÃÂ°C)) for signalling circuit; 40 A (at 140ÃÂ°F (60ÃÂ°C)) for power circuit

Country of Origin (subject to change) Indonesia

Depth 3.62 in

Electrical Connection Screw Clamp Terminals

Electrical Durability 1 Mcycles (32 A, AC-3, Less than 440 V); 0.6 Mcycles (40 A, AC-1, Less than 440 V)

Electrical Operating Durability 1,000,000, 600,000

Embedded Surge Suppressor No

Enclosure NEMA Rating 3R; 4

Environmental Attributes Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3

Features Without Built-In Suppressor Module

Fire Resistance 1562ÃÂ°F (850ÃÂ°C) IEC 60695-2-1

Frame / Series / Class / Code TeSys

Frequency 50/60 Hz

Full Load Amps-Inductive 32 A

Full Load Amps-Resistive 32 A

Full Load Current - Inductive 32 A

Fuse Amps 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit)

Heat Dissipation 2 to 3 W 50/60 Hz

Height 3.35 in

Hold VA 7.5 VA (at 60 Hz 20ÃÂ°C), 7 VA (at 50 Hz 20ÃÂ°C)

Hold-In Power Consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 68ÃÂ°F (20ÃÂ°C)); 7 VA 50 Hz cos phi 0.3 (at 68ÃÂ°F (20ÃÂ°C))

Horsepower @ Single Phase - 120V AC 2 hp

Horsepower @ Single Phase - 240V AC 3 hp

Horsepower @ Three Phase - 208V AC 7 1/2 hp

Horsepower @ Three Phase - 240V AC 7 1/2 hp

Horsepower @ Three Phase - 480V AC 15 hp

Horsepower @ Three Phase - 600V AC 20 hp

HP @ 1 Phase - 120V 2 hp

HP @ 1 Phase - 240V 3 hp

HP @ 3 Phase - 208V 7 1/2 hp

HP @ 3 Phase - 240V 7 1/2 hp

HP @ 3 Phase - 480V 15 hp

HP @ 3 Phase - 575V 20 hp

Hz_ 50/60 Hz

Impedance 2 mOhm

Impulse Withstand Voltage 6 kV

Includes Not Applicable

Includes Auxiliary Contacts Yes

Inrush Power in VA 70 VA 60 Hz cos phi 0.75 (at 68ÃÂ°F (20ÃÂ°C)); 70 VA 50 Hz cos phi 0.75 (at 68ÃÂ°F (20ÃÂ°C))

Inrush VA 70 VA

Insulation Resistance Greater than 10 MOhm for signalling circuit

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

IP Degree Of Protection IP20 front face IEC 60529

IP Rating IP20

IRMS Rated Making Capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 450 A at 440 V for power circuit conforming to IEC 60947

Max. Operating Watts 7.5 kW (at 220 to 230V AC 50/60 Hz), 15 kW (at 380 to 400V AC 50/60 Hz), 15 kW (at 415V AC 50/60 Hz), 15 kW (at 440V AC 50/60 Hz), 18.5 kW (at 500V AC 50/60 Hz), 18.5 kW (at 660 to 690V AC 50/60 Hz)

Max. Temperature 850ÃÂ°C

Maximum Horse Power Rating 2 hp at 115 V AC 50/60 Hz for 1 phase motors; 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors; 7.5 hp at 200/208 V AC 50/60 Hz for 3 phase motors; 7.5 hp at 230/240 V AC 50/60 Hz for 3 phase motors; 15 hp at 460/480 V AC 50/60 Hz for 3 phase motors; 20 hp at 575/600 V AC 50/60 Hz for 3 phase motors

Maximum Operating Rate 3600 cyc/h 140ÃÂ°F (60ÃÂ°C)

Maximum Operating Temperature 140 Degrees F

Maximum Operational Voltage Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC

Maximum Voltage Rating 690V AC

Mechanical Durability 10 Mcycles

Mechanical Operating Durability 10,000,000

Mechanical Robustness Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor open 10 Gn for 11 ms); Shocks contactor closed 15 Gn for 11 ms)

Minimum Operating Temperature -40 Degrees F

Minimum Switching Current 5 mA for signalling circuit

Minimum Switching Voltage 17 V for signalling circuit

Motor Power KW 7.5 kW 220 to 230 V AC 50/60 Hz; 15 kW 380 to 400 V AC 50/60 Hz; 15 kW 415 V AC 50/60 Hz; 15 kW 440 V AC 50/60 Hz; 18.5 kW 500 V AC 50/60 Hz; 18.5 kW 660 to 690 V AC 50/60 Hz

Mounting Style DIN Rail, Plate

Mounting Support Rail; Plate

Mounts On Plate, Rail

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Net Weight 0.37 kg

Non-Overlap Time 1.5 ms

Number of Auxillary Contacts 1

Number of Normally Open Main Contacts 3

Number of Poles 3

Operating Altitude 0 to 6561.68 ft (0 to 2000 m)

Operating Speed 3600 cycles per hr

Operating Time 12 to 22 ms (Closing), 4 to 19 ms (Opening)

Overall Depth 3.62 in

Overall Height 3.35 in

Overall Width 1.77 in

Overvoltage Category CAT III

Package Quantity 1

Pole Contact Composition 3 NO

Poles Description 3P

Pollution Degree 3

Power Dissipation Per Pole 3.2 W AC-1; 1.25 W AC-3

Product Certifications UL; CSA

Product Name Easy TeSys DPE

Product Or Component Type Contactor

Rated Breaking Capacity 450 A @ 440V

Rated Impulse Withstand Voltage 6 kV IEC 60947

Rated Insulation Voltage Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL

Rated Insulation Volts 600/690V

Rated Making Capacity 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit)

Rated Operational Current 32 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 40 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-1 for power circuit

Rated Voltage 690V AC, 300V DC

Resistance Properties Fire Resistant, Insulation Resistant

Reversing No

Reversing Capability Non-Reversing

Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Series TeSys Easy

Shock Resistance 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)

Signalling Circuit Frequency 25 to 400 Hz

Special Features Overvoltage Category III; Minimum Switching Voltage 17 V Signalling Circuit; Insulation Resistance 10 MOhm Signalling Circuit

Standards CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL Listed, UL 60947-4-1

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Terminal Connection Type Screw Clamp Terminals

Thermal Amperage 10 A (at 60ÃÂ°C Signalling Circuit), 40 A (at 60ÃÂ°C Power Circuit)

Tightening Torque 1.7 Nm

Utilisation Category AC-4; AC-1; AC-3

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)
