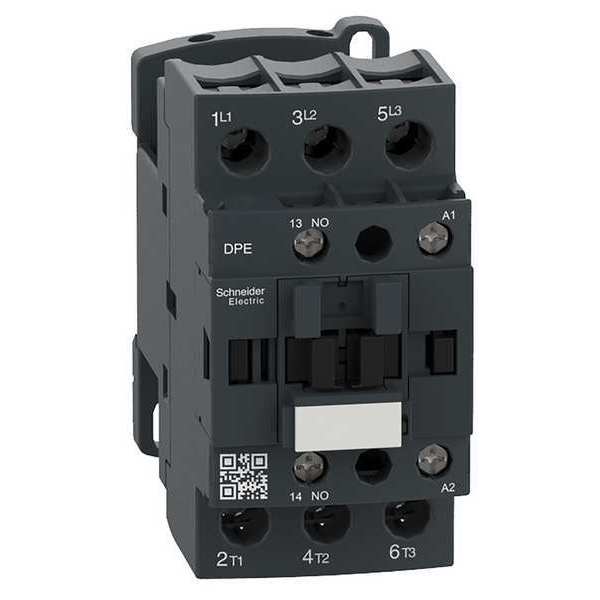

Home / Easy TeSys, 3 Poles, 24 V AC, 38 A, Reversing: No
Easy TeSys, 3 Poles, 24 V AC, 38 A, Reversing: No

Easy TeSys, 3 Poles, 24 V AC, 38 A, Reversing: No

  • Schneider Electric
  • IEC Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V AC, Number of Poles 3, Full Load Current - Inductive 38 A, Full Load Current - Resistive 38 A, Reversing Capability Non-Reversing, Overall Height 3.35 in, Overall Width 1.77 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys Easy, Number of Auxillary Contacts 0, Contactor Style IEC

    graingerSKU: 787P30, mscSKU: , zoro_no: G903481125, mongo_id: 65bbee3c526e052139afbd6d

Web Price
$76.44 / each
Qty

Product Details

Motor Control, Resistive Load
1NO
Auxiliary Contacts Not Included
24V AC
24 V AC
IEC
Drop-Out: 0.3 to 0.6 Uc (at 70°C 50/60 Hz); Operational: 0.8 to 1.1 Uc (at 60°C 50 Hz 0.85 to 1.1 Uc (at 60°C 60 Hz), 1 to 1.1 Uc (at 70°C 50/60 Hz)
Indonesia
3.62 in
Screw Clamp Terminals
1 Mcycles (38 A, AC-3, Less than 440 V); 0.6 Mcycles (52 A, AC-1, Less than 440 V)
1,000,000, 600,000
No
3R; 4
Mercury Free, Toxic Heavy Metal Free, Pollution Degree 3
Without Built-In Suppressor Module
TeSys
50/60 Hz
38 A
38 A
38 A
38 A
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit)
3.35 in
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
2 hp
5 hp
10 hp
10 hp
20 hp
25 hp
2 hp
5 hp
7 1/2 hp
10 hp
20 hp
30 hp
50/60 Hz
2 mOhm
6 kV
Not Applicable
No
70 VA
Greater Than 10 MOhms (Signalling Circuit)
IP20
9 kW (at 220 to 230V AC 50/60 Hz), 18.5 kW (at 380 to 400V AC 50/60 Hz), 18.5 kW (at 415V AC 50/60 Hz), 18.5 kW (at 440V AC 50/60 Hz), 18.5 kW (at 500V AC 50/60 Hz), 18.5 kW (at 660 to 690V AC 50/60 Hz)
850°C
140 Degrees F
690V AC
10 Mcycles
10,000,000
-40 Degrees F
DIN Rail, Plate
Plate, Rail
No Enclosure
Not Applicable
0.375 kg
1.5 ms
0
0
3
3
3600 cycles per hr
12 to 22 ms (Closing), 4 to 19 ms (Opening)
3.62 in
3.35 in
1.77 in
CAT III
1
550 A @ 440V
600/690V
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit)
690V AC, 300V DC
Fire Resistant, Insulation Resistant
No
Non-Reversing
TeSys Easy
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
25 to 400 Hz
Overvoltage Category III; Minimum Switching Voltage 17 V Signalling Circuit; Insulation Resistance 10 MOhm Signalling Circuit
CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL Listed, UL 60947-4-1
5 mA (Signalling Circuit)
17 V (Signalling Circuit)
Screw Clamp Terminals
10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit)
1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)
4 G (Contactor Closed), 2 G (Contactor Open)
2 to 3W
1.77 in
Up to 6561.68 ft
