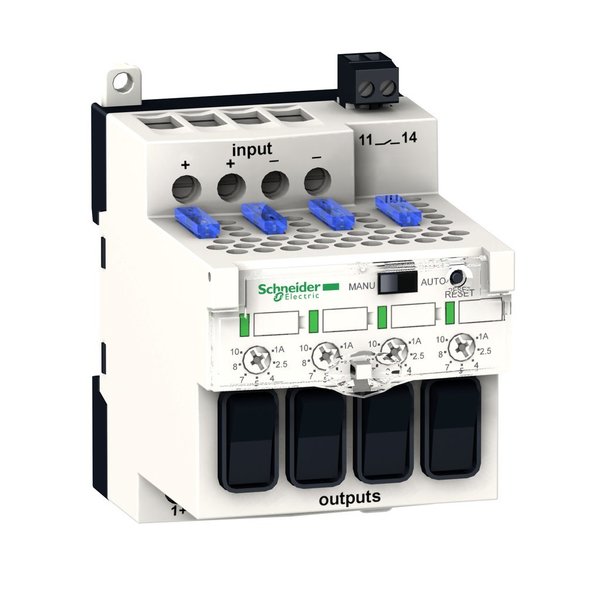

Electronic protection module-28..28.8

SKU
Brand Schneider Electric
Categories
Description Electronic protection module - 28..28.8

Web Price

$444.99 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-60 DegC

Ambient Air Temperature For Storage -40-85 DegC

Breaking Capacity 1000 A 32 V DC by fuse

Complementary Function 2-pole breaking by channel

Connections - Terminals input connection screw type terminals 4 x 0.5...4 x 10 mmÃÂ² AWG 20...AWG 8 || diagnostic relay removable screw terminal block 1 x 2.5 mmÃÂ² AWG 14 || output connection screw type terminals 8 x 0.5...8 x 4 mmÃÂ² AWG 20...AWG 10

Country of Origin (subject to change) China

Dielectric Strength 500 V between input and ground || 500 V between output and ground

Environmental Characteristic EMC EN 61000-6-3 || EMC EN/IEC 61000-6-2 || safety EN/IEC 60950-1 || safety EN/IEC 61204-3

Fixing Mode by clips 35 mm symmetrical DIN rail vertical || on panel

Input Current 40 A

Input Voltage 24...28.8 V DC

Input Voltage Limits 19...32 V

Ip Degree Of Protection IP20 conforming to EN/IEC 60529

Local Signalling for channel status 1 LED per channel (green/red) || for channel status 1 relay

Marking CE

Maximum Output Current 10 A per channel, rating: 1/2.5/4/5/7/8/10

Name Of Test electrostatic discharges EN/IEC 61000-4-2 || emission EN 61000-6-3 || induced electromagnetic field EN/IEC 61000-4-6 level 3 || radiated electromagnetic field EN/IEC 61000-4-3 level 3 || rapid transient IEC 61000-4-4 level 3 || surge EN/IEC 61000-4-5 level 2 || conducted/radiated emissions EN 55022 Class B || emission EN 50081-1

Number Of Output Channels 4

Operating Altitude 6561.68 ft (2000 m)

Output Protection Type against overload 1.3 x In || against short-circuits automatic reset || line protection 1 x 15 A integrated fuse per channel

Output Voltage (Uin-0.3) V DC

Overvoltage Category class II VDE 0106-1

Package Quantity 1

Product Certifications RCM || EAC

Product Or Component Type electronic protection module

Relative humidity 0-90 % during operation || 0-95 % during storage

Standards UL 508 || CSA C22.2 No 60950-1

Vibration Resistance 2 gn 11.9-150 Hz)EN/IEC 61131-2 || 3.5 mm 3-11.9 Hz)EN/IEC 61131-2
