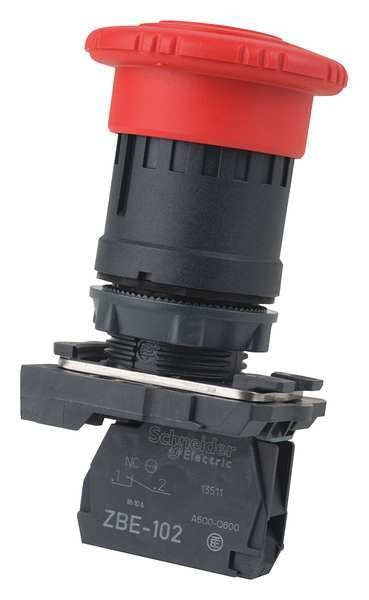

Emergency Stop Push Button, 22 mm, 1NC, Red

SKU
Brand Schneider Electric
Categories
Description Emergency Stop Push Button, 22 mm, Maintained Push / Turn To Release Action, 40mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NC, Bezel Plastic, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating 66, Legend No Legend
graingerSKU: 33HP37, mscSKU: 69676922, zoro_no: G8581447, mongo_id: 65bbe80f9a749db822770382

Web Price

$118.11 / each

Product Details

Action Maintained Push / Turn To Release

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Plastic

Bezel Material dark grey plastic

Color Red

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÃÂ² without cable end EN 60947-1

Contact Form 1NC

Contact Operation slow-break

Contact Rating 10A @ 600V AC

Contacts Material silver alloy (Ag/Ni)

Contacts Usage standard contacts

Country of Origin (subject to change) Czechia

Depth 82 mm

Device Presentation complete product

Device Short Name XB5

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4

Fixing Collar Material plastic

Head Material Plastic

Head Type standard

Height 43 mm

Ik Degree Of Protection IK03 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K

IP Rating 66

Legend No legend

Material Plastic

Mechanical Durability 300000 cycles

Mounting Diameter 22 mm

NEMA Contact Rating Designation A600/Q600

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 1, 12, 13, 2, 3, 4, 4X

Number of Operators 1

Operating Travel 1.5 mm NC changing electrical state) || 4.3 mm total travel)

Operator Profile red mushroom ÃÂ 40 mm, unmarked

Overvoltage Category class II IEC 60536

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications GL || LROS (Lloyds register of shipping) || DNV || UL Listed || CSA || BV

Product Or Component Type emergency switching off push-button || emergency stop push-button

Protective Treatment TH

Reset turn to release

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Size 22 mm

Standards CSA C22.2 N.14, EN/IEC 60204-1, EN/IEC 60364-5-53, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, JIS C 4520, UL508

Terminal Connection Screw Clamp

Terminals Description Iso NÃÂ°1 (11-12)NC

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator 40mm Mushroom Head

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

Width 40 mm

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
