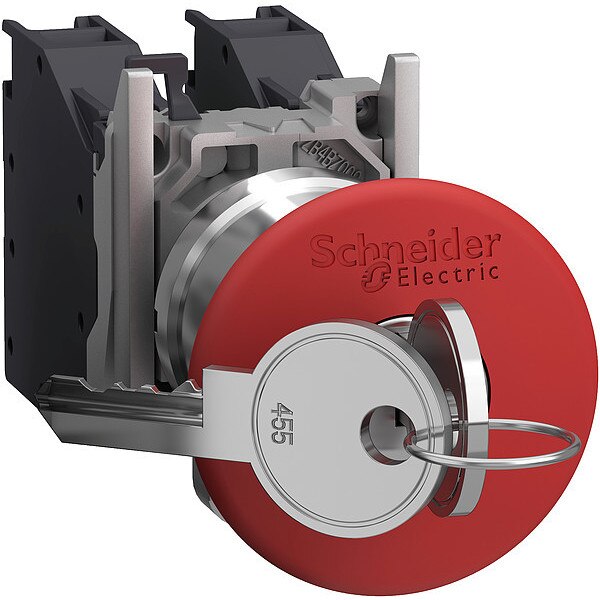

Emergency Stop Push Button, 22 mm, 1NO/1NC, Red

SKU
Brand Schneider Electric
Categories
Description Emergency Stop Push Button, 22 mm, 2 Position, Maintained / Maintained Action, 1NO/1NC Contact Form, Type of Operator Push Button, Color Red, Center Key Removal, Operator Head Material Metal, Basic Material Metal, Bezel Material Metal, Contact Rating 1.9 A @ 380 V AC, 3 A @ 240 V AC, 6 A @ 120 V AC, 0.27 A @ 250 V DC, 0.55 A @ 125 V DC, 2.87 A @ 24 V DC, IP Rating 65
graingerSKU: null, mscSKU: null, zoro_no: G0200754, mongo_id: 65bbe67b3aaddbd5a903157e

Web Price

$423.74 / each

Qty

Product Details

Action Maintained / Maintained

Ambient Air Temperature For Operation -20-65ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Material Metal

Color Red

Connections - Terminals screw clamp terminals, 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 1NO/1NC

Contact Operation slow-break

Contact Rating 1.9 A @ 380 V AC, 3 A @ 240 V AC, 6 A @ 120 V AC, 0.27 A @ 250 V DC, 0.55 A @ 125 V DC, 2.87 A @ 24 V DC

Contacts Type And Composition 1 NO + 1 NC

Contacts Usage standard

Conventional Free Air Thermal Current 10 A IEC 60947-5-1

Country of Origin (subject to change) France

Depth 119.5 mm

Device Mounting fixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1

Device Short Name XB4

Dust Zone zone 21 - 22

Embedding Depth 58 mm

Fixing Center >= 30 x 40 mm support panel) 1-6 mm

Fixing Collar Material zamak

Gas Zone zone 1 - 2

Height 30 mm

Ip Degree Of Protection IP65 IEC 60529

IP Rating 65

Key Number 455

Key Removal Center

Key Withdrawal Position center

Marking II 2 GD || Ex tb IIIC Db || Ex db eb IIC Gb

Mechanical Durability 5000000 cycles

Mounting Diameter 22 mm

Operator Head Material Metal

Operator Profile red mushroom ÃÂ 40 mm

Package Quantity 1

Position 2

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications INERIS 04ATEX9004U

Product Or Component Type complete emergency stop push-button

Protective Treatment TH

Rated Operational Current 1.9 A 380 V, AC, A600 IEC 60947-5-1; 3 A 240 V, AC, A600 IEC 60947-5-1; 6 A 120 V, AC, A600 IEC 60947-5-1; 0.27 A 250 V, DC, Q300 IEC 60947-5-1; 0.55 A 125 V, DC, Q300 IEC 60947-5-1; 2.87 A 24 V, DC, Q300 IEC 60947-5-1

Reset key release

Safety Rating ANSI/ISA 12.12.01, CSA C22.2 No 213, EN/IEC 60079-0:2009, EN/IEC 60079-1:2009, EN/IEC 60079-7:2009, EN/IEC 60079-31:2009, UL 60079-0, UL 60079-1, UL 60079-31

Shape Of Signaling Unit Head round

Size 22 mm

Standards ANSI/ISA, CSA, IEC, UL

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator Push Button

Width 46.2 mm

[Ie] Rated Operational Current 1.9 A 380 V, AC, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC, A600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 EN/IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage 415 V
