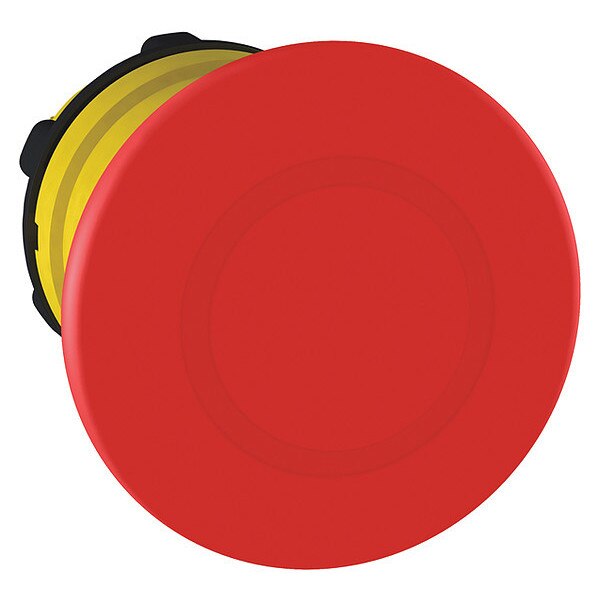

Emergency stop push-button, 22 mm, Red

SKU
Brand Schneider Electric
Categories
Description Emergency stop push-button, 22 mm, Maintained Push / Maintained Pull, Type of Operator 40mm Mushroom Head, Basic Material Plastic, Bezel Material Plastic, Color Red, NEMA Rating 13, 4X, IP Rating 66, 67, 69, 69K, Legend No Legend, Legend/Background Color No Legend, Standards CSA C22.2 No 14, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, GB 14048.5, IEC 60364-5-53, JIS C8201-1, JIS C8201-5-1, UL 508
graingerSKU: , mscSKU: , zoro_no: G3456775, mongo_id: 65bbe6393aaddbd5a90159eb

Web Price

$42.44 / each

Qty

Product Details

Action Maintained Push / Maintained Pull

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Material Plastic

Cad Overall Depth 56 mm

Cad Overall Height 40 mm

Cad Overall Width 40 mm

Color Red

Compatibility Code ZB5

Country of Origin (subject to change) Czechia

Device Short Name ZB5

Electrical Composition Code C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting

Features Green Premium product, Mercury free, Pro-active compliance, Toxic heavy metal free

Head Type standard

Ik Degree Of Protection IK03 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K

IP Rating 66, 67, 69, 69K

Legend No Legend

Legend/Background Color No Legend

Mechanical Durability 300000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 13, 4X

Operator Profile red mushroom ÃÂ 40 mm, unmarked

Overvoltage Category class II IEC 60536

Package Quantity 1

Product Certifications UL Listed || GL || BV || CSA || LROS (Lloyds register of shipping) || DNV

Product Destination emergency stop push-button

Product Or Component Type head for emergency stop push-button

Protective Treatment TH

Reset push-pull

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Size 22 mm

Standards CSA C22.2 No 14, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, GB 14048.5, IEC 60364-5-53, JIS C8201-1, JIS C8201-5-1, UL 508

Station Name XALD 1 cut-out || XALK 1 cut-out

Type of Operator 40mm Mushroom Head

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
