Home / Emergency Stop Push-Button, 22mm, 1NO/1NC, Red

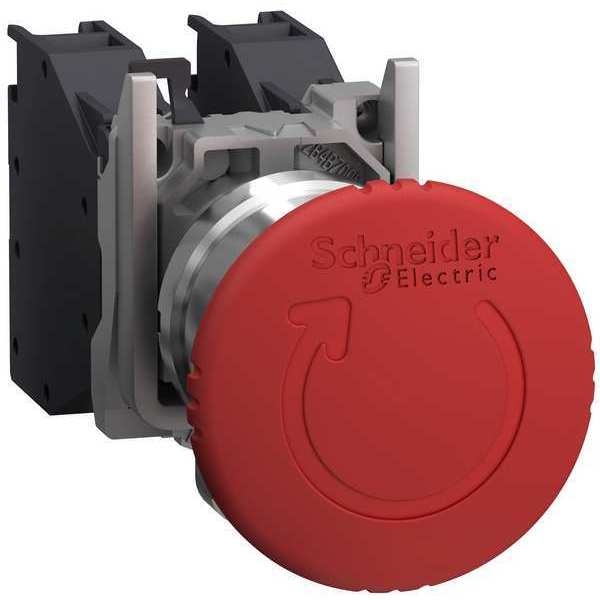

Emergency Stop Push-Button, 22mm, 1NO/1NC, Red

SKU
Brand Schneider Electric
Categories
Description Emergency Stop Push-Button, 22mm, Type of Operator 40 mm Mushroom Head, Contact Form 1NO/1NC, Bezel Chrome Plated Metal, Color Red, Contact Rating 1.9 A @ 380V AC, 3 A @ 240V AC, 6 A @ 120V AC, 0.27 A @ 250V DC, 0.55 A @ 125V DC, 2.87 A @ 24V DC, Number of Operators 1, IP Rating 65, Legend No Legend, Standards EN/IEC 60079-0:2009, EN/IEC 60079-1:2009, EN/IEC 60079-7:2009, EN/IEC 60079-31:2009, UL 60079-0, UL 60079-1, UL 60079-31, ANSI/ISA 12.12.01, CSA C22.2 No 213
graingerSKU: null, mscSKU: null, zoro_no: G3463985, mongo_id: 65bbe5d13aaddbd5a9fea6fe

Web Price

$309.99 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-65ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Chrome Plated Metal

Bezel Material chromium plated metal

Color Red

Connections - Terminals screw clamp terminals, 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 1NO/1NC

Contact Operation slow-break

Contact Rating 1.9 A @ 380V AC, 3 A @ 240V AC, 6 A @ 120V AC, 0.27 A @ 250V DC, 0.55 A @ 125V DC, 2.87 A @ 24V DC

Contacts Type And Composition 1 NO + 1 NC

Contacts Usage standard

Country of Origin (subject to change) France

Depth 119.5 mm

Device Mounting fixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1

Device Short Name XB4

Dust Zone zone 21 - 22

Embedding Depth 58 mm

Fixing Center >= 30 x 40 mm support panel) 1-6 mm

Fixing Collar Material zamak

Gas Zone zone 1 - 2

Height 30 mm

Ip Degree Of Protection IP65 IEC 60529

IP Rating 65

Legend No Legend

Marking Ex tb IIIC Db || Ex db eb IIC Gb || II 2 GD

Mechanical Durability 5000000 cycles

Mounting Diameter 22 mm

Number of Operators 1

Operator Profile red mushroom ÃÂ 40 mm

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications INERIS 04ATEX9004U

Product Or Component Type complete emergency stop push-button

Protective Treatment TH

Reset turn to release

Safety Rating Class 1 Div 2, Class 2 Div 2, Class 3

Shape Of Signaling Unit Head round

Size 22mm

Standards EN/IEC 60079-0:2009, EN/IEC 60079-1:2009, EN/IEC 60079-7:2009, EN/IEC 60079-31:2009, UL 60079-0, UL 60079-1, UL 60079-31, ANSI/ISA 12.12.01, CSA C22.2 No 213

Terminal Connection Screw Clamp

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator 40 mm Mushroom Head

Width 46.2 mm

[Ie] Rated Operational Current 1.9 A 380 V, AC, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC, A600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 EN/IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage 415 V
