Home / Enclosed Power Relay, 4 Pin, 24VAC, SPST-NO

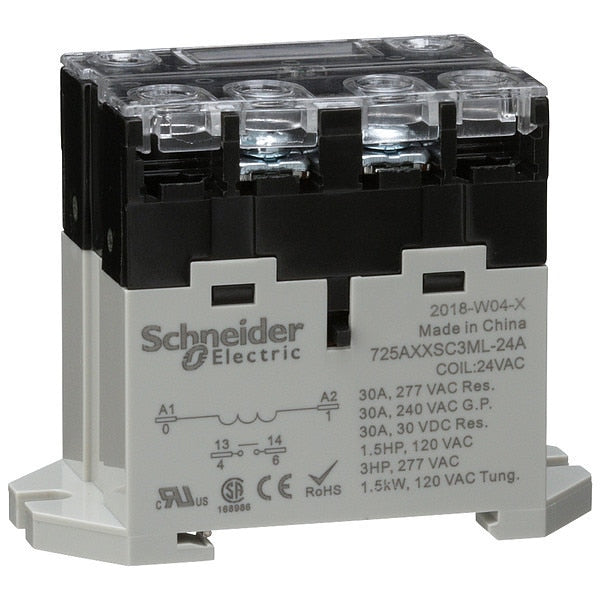

Enclosed Power Relay, 4 Pin, 24VAC, SPST-NO

SKU
Brand Schneider Electric
Categories
Description Enclosed Power Relay, Coil Voltage 24V AC, Contact Form SPST-NO, Current Rating 30 A, Electrical Connection Screw Terminal, Number of Pins 4, Status Indicator LED Indicator, Contact Rating (AC) 30 A @ 240/277V, Contact Rating (DC) 30 A @ 28/30V, Horsepower @ 120V AC 1 1/2 hp, Horsepower @ 240V AC 3 hp, Mounting Style DIN Rail & Top Flange, Push-To-Test Method Test Button, Body Depth 1.64 in, Body Height 1.3 in, Body Width 2.67 in, Coil Resistance 275 ohm, Contact Material Silver Alloy
graingerSKU: 6CVG7, mscSKU: , zoro_no: G1159776, mongo_id: 65bbe7649a749db822734831

Web Price

$33.19 / each

Qty

Product Details

AC Contact Rating - Relay 30A @ 277V

Ambient Air Temperature for Storage -67 to 212ÃÂ°F (-55 to 100ÃÂ°C)

ambient temperature range - operational -4 to 131ÃÂ°F (-20 to 55ÃÂ°C)

Average Coil Consumption 2.50 VA

Base Type DIN, Flange

Body Depth 1.64 in

Body Depth - Relay 1.3 in

Body Height 1.3 in

Body Height - Relay 2.09 in

Body Width 2.67 in

Body Width - Relay 2.67 in

Coil Rating 2.5VA, 1.9W

Coil Resistance 275 ohm

Coil Voltage 24V AC

Coil Voltage Type AC

Coil Volts 24V AC

Connections - terminals Screw coil terminal M3.5; Screw contact terminal M4

Contact Amp Rating (Resistive) 30A @ 277VAC/30VDC

Contact Composition 1 NO

Contact Form SPST-NO

Contact Form - Relay SPST-NO

Contact Material Silver Alloy

Contact Rating (AC) 30 A @ 240/277V

Contact Rating (DC) 30 A @ 28/30V

Contacts Material Silver alloy contacts

Country of Origin (subject to change) China

Current Rating 30 A

DC Contact Rating - Relay 30A @ 28V

Depth 2.12 in (53.9 mm)

Dielectric Strength 4,000V AC Between Coil and Contact

Dimensions 2.09H, 2.67W, 1.30D

Electrical Connection Screw Terminal

Electrical Connection - Power Relay Screw

Electrical Connection Type Screw

Electrical Durability 100000 cycles resistive IEC

Electrical Operating Durability 100,000

Features 3hp @ 277V AC, LED & Button

Frequency 50/60 Hz

Height 2.67 in (67.7 mm)

Horsepower @ 120V AC 1 1/2 hp

Horsepower @ 240V AC 3 hp

HP @ 120V 1 1/2

HP @ 240V 3

Hz - Electrical 50/60 Hz

Hz_ 50/60

Input Voltage 20.4 to 26.4V AC

IP Rating IP20

Item - Relay Enclosed Power Relay

Local Signalling LED indicator test button

Maximum Operating Temperature 131 Degrees F

Maximum Switching Voltage 240V, 277V

Mechanical Durability 5000000 cycles

Mechanical Operating Durability 5,000,000

Minimum Operating Temperature -4 Degrees F

Minimum Switching Current 100 mA

Motor Rated Yes

Mounting Flange, Bottom/Din Rail

Mounting - Relay Bottom Flange, DIN Rail

Mounting Style DIN Rail & Top Flange

Nominal input voltage 20.4...26.4 V AC 50/60 Hz

Number of Pins 4

Number of Pins - Relay 4

Number of Poles 1

Operating Current 30 A at 240V AC (General Purpose), 30 A at 240V AC (Resistive Load), 30 A at 277V AC (Resistive Load), 30 A at 28V DC (Resistive Load), 30 A at 30V DC (Resistive Load)

Overall Depth 2.12 in

Overall Height - Relay 2.09 in

Package Quantity 1

Pins 4

Power Consumption 2.5 VA

Power Consumption - Relay 2.5 VA

Product Certifications UL; CSA; CE

Product Range Harmony Electromechanical Relays

Product Type DIN rail/panel mount relay

Push-To-Test Button Manual Push Test Button

Push-To-Test Method Test Button

Rated Power in HP 3 hp 277 V AC; 1.5 hp 120 V AC

Rated power in W 1.5 kW 120 V tungsten

Relay Mounting Style DIN-Rail & Surface

Response Time 30 msec

Series Harmony(TM) 725 Power Series

Series name Power

Socket Code Configurator DIN-Rail & Surface / 4

Standards CE Certified, CSA Certified, IEC 60947-1, UL60947-4-1A

Status Indicator LED Indicator

Tightening Torque 10.6...15 lb.in; 1.2...1.7 N.m

Weight 4.23 oz

Width 1.37 in (34.9 mm)

[Ie] rated operational current 30 A at 277 V AC (on resistive load) conforming to UL; 30 A at 240 V AC (general purpose) conforming to UL; 30 A at 30 V DC (on resistive load) conforming to UL; 30 A at 240 V AC (on resistive load) conforming to IEC; 30 A at 28 V DC (on resistive load) conforming to IEC

[Uc] control circuit voltage 24 V
