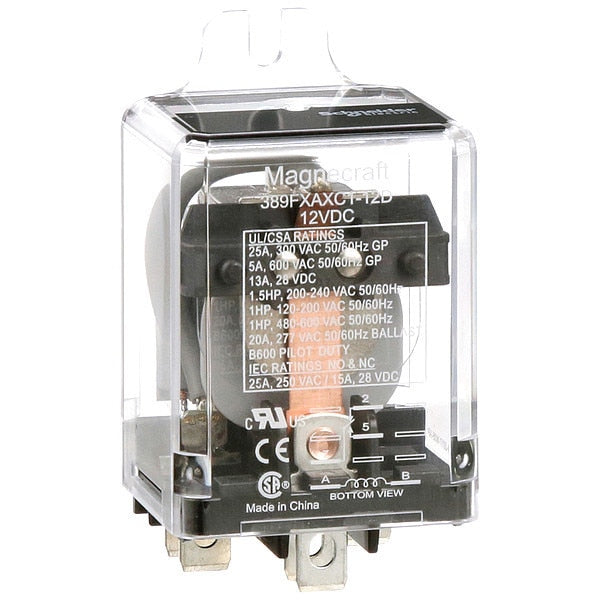

Enclosed Power Relay, 5 Pin, 12VDC, SPDT

SKU
Brand Schneider Electric
Categories
Description Enclosed Power Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form SPDT, Current Rating 25 A, Electrical Connection Quick-Connect, Number of Pins 5, Status Indicator Mechanical Flag, Contact Rating (AC) 20 A @ 277V, 22 A @ 120V, 25 A @ 250/300V, 5 A @ 600V, Contact Rating (DC) 13 A @ 28V, 15 A @ 28V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 1 1/2 hp, Mounting Style Flange, Body Depth 1.07 in, Body Height 1.57 in, Body Width 0.83 in, Coil Resistance 100 ohm
graingerSKU: 6CUY8, mscSKU: , zoro_no: G1527976, mongo_id: 65bbe96a22d7a989a9952c83

Web Price

$39.56 / each

Qty

Product Details

AC Contact Rating - Relay 25A @ 300V

Ambient Air Temperature for Operation -22 to 131ÃÂ°F (-30 to 55ÃÂ°C)

Ambient Air Temperature for Storage -22 to 185ÃÂ°F (-30 to 85ÃÂ°C)

Base Shape Square

Base Type Flange

Body Depth 1.07 in

Body Depth - Relay 1.4 in

Body Height 1.57 in

Body Height - Relay 2.9 in

Body Width 0.83 in

Body Width - Relay 1.53 in

Coil Rating 3.5VA, 1.4W

Coil Resistance 100 ohm

Coil Voltage 12V DC

Coil Voltage Type DC

Coil Volts 12V DC

Connections Terminals Quick

Contact Amp Rating (Resistive) 25A @ 300VAC, 13A @ 28VDC

Contact Composition 1 NC + 1 NO

Contact Form SPDT

Contact Form - Relay SPDT

Contact Material Silver Alloy

Contact Rating (AC) 20 A @ 277V, 22 A @ 120V, 25 A @ 250/300V, 5 A @ 600V

Contact Rating (DC) 13 A @ 28V, 15 A @ 28V

Contacts Material Silver alloy contacts

Country of Origin (subject to change) China

Current Rating 25 A

DC Contact Rating - Relay 13A @ 28V

Dielectric Strength 1,600V AC Between Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles

Dimensions 2.90H, 1.53W, 1.40D

Drop-out Voltage Threshold >= 0.1 Uc AC/DC

Electrical Connection Quick-Connect

Electrical Connection - Power Relay 1/4 in Tab Terminal

Electrical Connection Type Tab

Electrical Durability 100000 cycles resistive load; 50000 cycles resistive DC load

Electrical Operating Durability 100,000

Features 1hp @ 480-600V, Flag Indicator

Frequency 50/60 Hz

Horsepower @ 120V AC 1 hp

Horsepower @ 240V AC 1 1/2 hp

HP @ 120V 1 1/2

HP @ 240V 1 1/2

Hz - Electrical 50/60 Hz

Hz_ 50/60

Input Voltage 12V DC

Item - Relay Enclosed Power Relay

Maximum Operating Temperature 131 Degrees F

Maximum Switching Voltage 600V AC

Mechanical Durability 5000000 cycles

Mechanical Operating Durability 5,000,000

Minimum Operating Temperature -22 Degrees F

Minimum Switching Current 100 mA

Motor Power HP 1.5 hp 200/240 V AC 50/60 Hz; 1 hp 120...200V AC 50/60 Hz; 1 hp 600 V AC 50/60 Hz

Motor Rated Yes

Mounting Flange, Side

Mounting - Relay Side Flange

Mounting Style Flange

Number of Pins 5

Number of Pins - Relay 5

Number of Poles 1

Operating Current 13 A at 28V DC (Resistive Load), 15 A at 28V DC-1 (NO/NC), 20 A at 277V AC (Ballast), 22 A at 120V AC (Full Load), 25 A at 250V AC-1 (NO/NC), 25 A at 300V AC (Resistive Load), 5 A at 600V AC (Resistive Load)

Overall Depth 2.9 in

Overall Height - Relay 2.9 in

Package Quantity 1

Pins 5

Power Consumption 1.3 W, 2 VA

Power Consumption - Relay 3.5 W

Power consumption in VA 2 VA AC

Power consumption in W 1.3 W DC

Product Certifications cURus; CSA; CE

Product Type Power relay

Rated Operational Current 25 A at 300 V AC (on resistive load) conforming to UL; 5 A at 600 V AC (on resistive load) conforming to UL; 13 A at 28 V DC (on resistive load) conforming to UL; 22 A at 120 V AC (full load) conforming to UL; 20 A at 277 V AC (ballast) conforming to UL; 25 A at 250 V AC-1 (NO/NC) conforming to IEC; 15 A at 28 V DC-1 (NO/NC) conforming to IEC

Relay Mounting Style Surface (Side Flange)

Response Time 20 msec

Series 389F Power Series

Socket Code Configurator Surface (Side Flange) / Square / 5

Standards CE Certified, CSA Certified, cURus

Status Indicator Mechanical Flag

Voltage Range 0.8...1.1 Uc DC

Weight 2.96 oz
