Home / Enclosed Power Relay, 6 Pin, 24VDC, DPST-NO

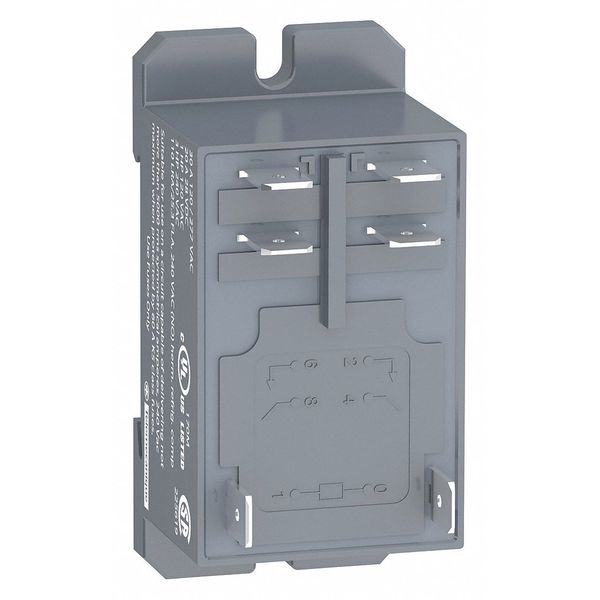

Enclosed Power Relay, 6 Pin, 24VDC, DPST-NO

Enclosed Power Relay, 6 Pin, 24VDC, DPST-NO

  • Schneider Electric
  • Enclosed Power Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form DPST-NO, Current Rating 30 A, Electrical Connection 1/4 in Tab Terminal, Flat Pin Width 0.25 in, Number of Pins 6, Sealing Sealed, Status Indicator No Indicator, Contact Rating (AC) 30 A @ 250/277V (NO), Contact Rating (DC) 20 A @ 28V (NO), 25 A @ 28V (NO), Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 3 hp, Mounting Style DIN Rail & Top Flange, Push-To-Test Method No Button, Body Depth 1.18 in, Body Height 1.33 in

    graingerSKU: 1YAC2, mscSKU: , zoro_no: G0571295, mongo_id: 65bbe7943aaddbd5a90a26fe

Web Price
$16.81 / each
Qty

Product Details

30A @ 277V
-40 to 131°F (-40 to 55°C)
-40 to 185°F (-40 to 85°C)
350 Ohm at 68°F (20°C) +/- 10%
Square
Square
1.18 in
2.68 in
1.33 in
1.65 in
2.7 in
1.34 in
4.0VA, 1.7W
350 Ohm at 20°C +/- 10 %
24V DC
DC
24V DC
30A @ 277VAC, 20A @ 28VDC
DPST-NO
DPST-NO
Silver Tin Oxide
30 A @ 250/277V (NO)
20 A @ 28V (NO), 25 A @ 28V (NO)
2 NO
24 V DC
19.2 to 26.4 V
Without lockable test button
25 A -40 to 131°F (-40 to 55°C) relays side by side without a gap; 30 A -40 to 131°F (-40 to 55°C) 13 mm gap between two relays
China
30 A
20A @ 28V
Complete product
1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Poles with Basic, 4,000V AC Between Coil and Contact with Reinforced
2000 V AC between poles with basic || 4000 V AC between coil and contact with reinforced || 1500 V AC between contacts with micro disconnection
1.65H, 1.34W, 2.68D
Greater than or Equal to 0.1 Uc
1/4 in Tab Terminal
1/4 in Tab Terminal
Tab
100000 cycles resistive
100,000
Sealed
Sealed Construction
0.25 in
Hard-Wired Logic Automated Systems
50/60 Hz
1 hp
3 hp
1
3
50/60 Hz
50/60
19.2 to 26.4V
IP40 conforming to IEC 60529
IP40
Enclosed Power Relay
131 Degrees F
7500 VA/700 W
250V AC
5000000 cycles
5,000,000
-40 Degrees F
6000 mW 500 mA / 12 V NO
Yes
Flange, Bottom/Din Rail
Bottom Flange, DIN Rail
DIN Rail & Top Flange
DIN rail; Panel
DIN rail || panel
6
6
2
25 ms
20 A at 28V DC (NO UL), 25 A at 28V DC (NO IEC), 30 A at 250V AC (NO IEC), 30 A at 77V AC (NO UL)
Any position
Less than or Equal to 1200 cycles/hour under load; Less than or Equal to 18000 cycles/hour no-load
-40-55°C
1.54 in
1.54 in
1
6
3
1.7 W
4.0 W
CSA; CE; GOST; UL
DIN rail/panel mount relay
RT II
No Test Button
No Button
4 kV 1.2/50 µs
250 V IEC; 300 V UL
30 A 277 V AC) NO UL; 20 A 28 V DC) NO UL; 30 A 250 V AC) NO IEC; 25 A 28 V DC) NO IEC
DIN-Rail & Surface
25 ms
Shock-Resistant, Vibration-Resistant
25 A 28 V DC; 30 A 250 V AC
25 msec
Sealed
Harmony(TM) RPF Power Series
Power
Flat
10 gnin operation; 30 gnnot operating
DIN-Rail & Surface / Square / 6 / 0.25 in
CE Certified, CSA C22.2 No 14, EN/IEC 61810-1, GOST, UL 508
None
250 V IEC
Level A group mounting
0.1
3 gn +/- 1 mm 10 to 150 Hz)5 cycles in operation; 10 gn +/- 1 mm 10 to 150 Hz)5 cycles not operating
2.88 oz
