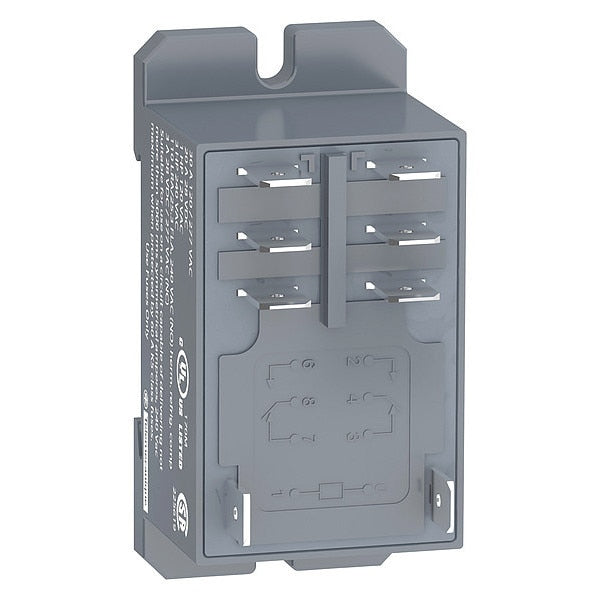

Enclosed Power Relay, DIN-Rail & Surface Mounted, DPDT, 230V AC, 8 Pins, 2 Poles

SKU
Brand Schneider Electric
Categories
Description Enclosed Power Relay, Base Shape Square, Coil Voltage 230V AC, Contact Form DPDT, Current Rating 30 A, Electrical Connection 1/4 in Tab Terminal, Flat Pin Width 0.25 in, Number of Pins 8, Sealing Sealed, Status Indicator No Indicator, Contact Rating (AC) 3 A @ 250/277V (NC), 30 A @ 250/277V (NO), Contact Rating (DC) 20 A @ 28V (NO), 25 A @ 28V (NO), 3 A @ 28V (NC), Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 3 hp, Mounting Style DIN Rail & Top Flange, Push-To-Test Method No Button
graingerSKU: 1DPR2, mscSKU: , zoro_no: G0351897, mongo_id: 65bbe7ba3aaddbd5a90b0d2a

Web Price

$16.81 / each

Qty

Product Details

AC Contact Rating - Relay 30A @ 277V (NO), 3A @ 277V (NC)

Ambient Air Temperature For Operation -40 to 131ÃÂ°F (-40 to 55ÃÂ°C)

Ambient Air Temperature For Storage -40 to 185ÃÂ°F (-40 to 85ÃÂ°C)

Average Coil Consumption 4 VA 60 Hz

Average Resistance 15600 Ohm at 68ÃÂ°F (20ÃÂ°C) +/- 15%

Base Shape Square

Base Type Square

Body Depth 1.38 in

Body Depth - Relay 2.68 in

Body Height 1.33 in

Body Height - Relay 1.61 in

Body Width 2.7 in

Body Width - Relay 1.35 in

CAD Available Yes

Coil Rating 4.0VA, 1.7W

Coil Resistance 15600 Ohm at 20ÃÂ°C +/- 15 %

Coil Voltage 230V AC

Coil Voltage Type AC

Coil Volts 230V AC

Contact Amp Rating (Resistive) 30A @ 277VAC (NO), 3A @ 277VAC (NC)

Contact Form DPDT

Contact Form - Relay DPDT

Contact Material Silver Tin Oxide

Contact Rating (AC) 3 A @ 250/277V (NC), 30 A @ 250/277V (NO)

Contact Rating (DC) 20 A @ 28V (NO), 25 A @ 28V (NO), 3 A @ 28V (NC)

Contact Type and Composition 2 C/O

Control Circuit Voltage 230 V AC 50/60 Hz

Control Circuit Voltage Limits 184 to 253 V

Control Type Without lockable test button

Conventional Enclosed Thermal Current 25 A -40 to 131ÃÂ°F (-40 to 55ÃÂ°C) relays side by side without a gap; 30 A -40 to 131ÃÂ°F (-40 to 55ÃÂ°C) 13 mm gap between two relays

Country of Origin (subject to change) China

Current Rating 30 A

DC Contact Rating - Relay 20A @ 28V

Device Presentation Complete product

Dielectric Strength 1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Poles with Basic, 4,000V AC Between Coil and Contact with Reinforced

Dielectric Voltage 2000 V AC between poles with basic || 4000 V AC between coil and contact with reinforced || 1500 V AC between contacts with micro disconnection

Dimensions 1.65H, 1.34W, 2.68D

Drop-Out Voltage Threshold Greater than or Equal to 0.15 Uc

Electrical Connection 1/4 in Tab Terminal

Electrical Connection - Power Relay 1/4 in Tab Terminal

Electrical Connection Type Tab

Electrical Durability 100000 cycles resistive

Electrical Operating Durability 100,000

Environmental Protection Sealed

Features Sealed Construction

Flat Pin Width 0.25 in

For Use With Hard-Wired Logic Automated Systems

Frequency 50/60 Hz

Horsepower @ 120V AC 1 hp

Horsepower @ 240V AC 3 hp

HP @ 120V 1

HP @ 240V 3

Hz - Electrical 50/60 Hz

Hz_ 50/60

Input Voltage 184 to 253V

IP Degree Of Protection IP40 conforming to IEC 60529

IP Rating IP40

Item - Relay Enclosed Power Relay

Maximum Operating Temperature 131 Degrees F

Maximum Switching Capacity 7500 VA/700 W

Maximum Switching Voltage 250V AC

Mechanical Durability 5000000 cycles

Mechanical Operating Durability 5,000,000

Minimum Operating Temperature -40 Degrees F

Minimum Recommended Switching Capacity 6000 mW 500 mA / 12 V NO; 170 mW 10 mA / 6 V NC

Motor Rated Yes

Mounting Flange, Bottom/Din Rail

Mounting - Relay Bottom Flange, DIN Rail

Mounting Style DIN Rail & Top Flange

Mounting Support Panel; DIN rail

Mounting Type panel || DIN rail

Number of Pins 8

Number of Pins - Relay 8

Number of Poles 2

Operate Time 25 ms

Operating Current 20 A at 28V DC (NO UL), 25 A at 28V DC (NO IEC), 3 A at 250V AC (NC IEC), 3 A at 277V AC (NC UL), 3 A at 28V DC (NC IEC), 3 A at 28V DC (NC UL), 30 A at 250V AC (NO IEC), 30 A at 277V AC (NO UL)

Operating Position Any position

Operating Rate Less than or Equal to 1200 cycles/hour under load; Less than or Equal to 18000 cycles/hour no-load

Operating Temp. Range -40-55ÃÂ°C

Overall Depth 1.73 in

Overall Height - Relay 1.54 in

Package Quantity 1

Pins 8

Pollution Degree 3

Power Consumption 4 VA

Power Consumption - Relay 4.0 VA

Product Certifications UL; CE; CSA; GOST

Product Or Component Type DIN rail/panel mount relay

Protection Category RT II

Push-To-Test Button No Test Button

Push-To-Test Method No Button

Rated Impulse Withstand Voltage 4 kV 1.2/50 ÃÂµs

Rated Insulation Voltage 250 V IEC; 300 V UL

Rated Operational Current 30 A 277 V AC) NO UL; 20 A 28 V DC) NO UL; 30 A 250 V AC) NO IEC; 25 A 28 V DC) NO IEC; 3 A 277 V AC) NC UL; 3 A 28 V DC) NC UL; 3 A 250 V AC) NC IEC; 3 A 28 V DC) NC IEC

Relay Mounting Style DIN-Rail & Surface

Release Time 25 ms

Resistance Properties Shock-Resistant, Vibration-Resistant

Resistive Rated Load 25 A 28 V DC; 30 A 250 V AC

Response Time 25 msec

Sealing Sealed

Series Harmony(TM) RPF Power Series

Series Name Power

Shape Of Pin Flat

Shock Resistance 10 gnin operation; 30 gnnot operating

Socket Code Configurator DIN-Rail & Surface / Square / 8 / 0.25 in

Standards CE Certified, CSA C22.2 No 14, EN/IEC 61810-1, GOST, UL 508
