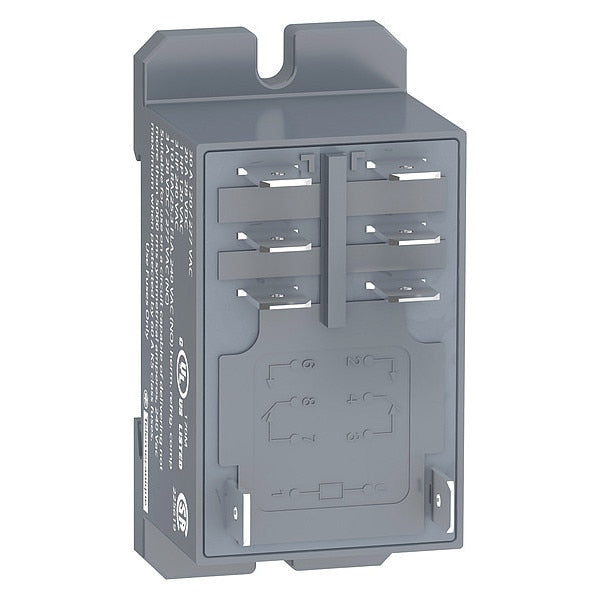

Enclosed Power Relay, DIN-Rail & Surface Mounted, DPDT, 24V AC, 8 Pins, 2 Poles

SKU
Brand Schneider Electric
Categories
Description Enclosed Power Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form DPDT, Current Rating 30 A, Electrical Connection 1/4 in Tab Terminal, Flat Pin Width 0.25 in, Number of Pins 8, Sealing Sealed, Status Indicator No Indicator, Contact Rating (AC) 3 A @ 250/277V (NC), 30 A @ 250/277V (NO), Contact Rating (DC) 20 A @ 28V (NO), 25 A @ 28V (NO), 3 A @ 28V (NC), Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 3 hp, Mounting Style DIN Rail & Top Flange, Push-To-Test Method No Button
graingerSKU: 1DPP9, mscSKU: , zoro_no: G0628817, mongo_id: 65bbe8d122d7a989a991961c

Web Price

$18.19 / each

Qty

Product Details

AC Contact Rating - Relay 30A @ 277V (NO), 3A @ 277V (NC)

Base Shape Square

Base Type Square

Body Depth 1.38 in

Body Depth - Relay 2.68 in

Body Height 1.33 in

Body Height - Relay 1.61 in

Body Width 2.7 in

Body Width - Relay 1.35 in

CAD Available Yes

Coil Rating 4.0VA, 1.7W

Coil Resistance 170 Ohm at 20ÃÂ°C +/- 15 %

Coil Voltage 24V AC

Coil Voltage Type AC

Coil Volts 24V AC

Contact Amp Rating (Resistive) 30A @ 277VAC (NO), 3A @ 277VAC (NC)

Contact Form DPDT

Contact Form - Relay DPDT

Contact Material Silver Tin Oxide

Contact Rating (AC) 3 A @ 250/277V (NC), 30 A @ 250/277V (NO)

Contact Rating (DC) 20 A @ 28V (NO), 25 A @ 28V (NO), 3 A @ 28V (NC)

Country of Origin (subject to change) China

Current Rating 30 A

DC Contact Rating - Relay 20A @ 28V

Dielectric Strength 1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Poles with Basic, 4,000V AC Between Coil and Contact with Reinforced

Dielectric Voltage 2000 V AC between poles with basic || 4000 V AC between coil and contact with reinforced || 1500 V AC between contacts with micro disconnection

Dimensions 1.65H, 1.34W, 2.68D

Electrical Connection 1/4 in Tab Terminal

Electrical Connection - Power Relay 1/4 in Tab Terminal

Electrical Connection Type Tab

Electrical Operating Durability 100,000

Environmental Protection Sealed

Features Sealed Construction

Flat Pin Width 0.25 in

For Use With Hard-Wired Logic Automated Systems

Frequency 50/60 Hz

Horsepower @ 120V AC 1 hp

Horsepower @ 240V AC 3 hp

HP @ 120V 1

HP @ 240V 3

Hz - Electrical 50/60 Hz

Hz_ 50/60

Input Voltage 19.2 to 26.4V

IP Rating IP40

Item - Relay Enclosed Power Relay

Maximum Operating Temperature 131 Degrees F

Maximum Switching Voltage 250V AC

Mechanical Operating Durability 5,000,000

Minimum Operating Temperature -40 Degrees F

Motor Rated Yes

Mounting Flange, Bottom/Din Rail

Mounting - Relay Bottom Flange, DIN Rail

Mounting Style DIN Rail & Top Flange

Mounting Type DIN rail || panel

Number of Pins 8

Number of Pins - Relay 8

Number of Poles 2

Operating Current 20 A at 28V DC (NO UL), 25 A at 28V DC (NO IEC), 3 A at 250V AC (NC IEC), 3 A at 277V AC (NC UL), 3 A at 28V DC (NC IEC), 3 A at 28V DC (NC UL), 30 A at 250V AC (NO IEC), 30 A at 277V AC (NO UL)

Operating Temp. Range -40-55ÃÂ°C

Overall Depth 1.73 in

Overall Height - Relay 1.54 in

Package Quantity 1

Pins 8

Power Consumption 4 VA

Power Consumption - Relay 4.0 VA

Protection Category RT II

Push-To-Test Button No Test Button

Push-To-Test Method No Button

Relay Mounting Style DIN-Rail & Surface

Resistance Properties Shock-Resistant, Vibration-Resistant
