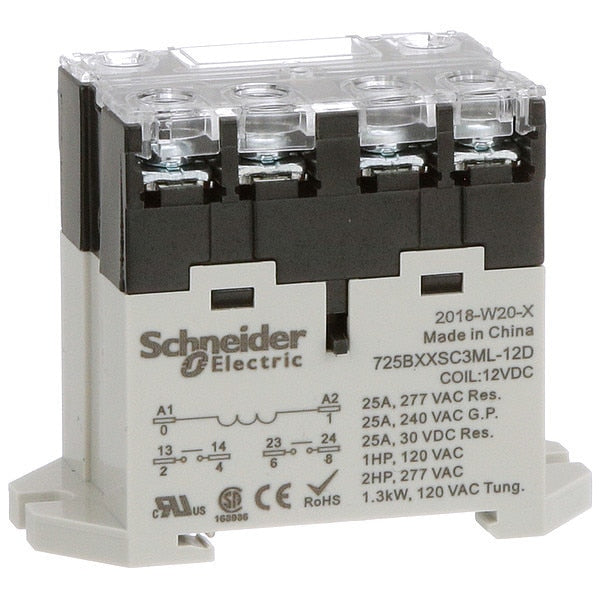

Enclosed Power Relay, DIN-Rail & Surface Mounted, DPST-NO, 12V DC, 6 Pins, 2 Poles

SKU
Brand Schneider Electric
Categories
Description Enclosed Power Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form DPST-NO, Current Rating 25 A, Electrical Connection Screw Terminal, Number of Pins 6, Status Indicator LED Indicator, Contact Rating (AC) 25 A @ 240/277V, Contact Rating (DC) 25 A @ 28/30V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 2 hp, Mounting Style DIN Rail & Top Flange, Push-To-Test Method Test Button, Body Depth 1.3 in, Body Height 1.3 in, Body Width 2.67 in, Coil Resistance 75 ohm
graingerSKU: 6CVJ0, mscSKU: , zoro_no: G3200714, mongo_id: 65bbe91d22d7a989a993607f

Web Price

$40.94 / each

Qty

Product Details

AC Contact Rating - Relay 25A @ 277V

Ambient Air Temperature for Storage -67 to 212ÃÂ°F (-55 to 100ÃÂ°C)

ambient temperature range - operational -4 to 131ÃÂ°F (-20 to 55ÃÂ°C)

Average Coil Consumption 1.90 W

Base Shape Square

Base Type DIN, Flange

Body Depth 1.3 in

Body Depth - Relay 1.3 in

Body Height 1.3 in

Body Height - Relay 2.09 in

Body Width 2.67 in

Body Width - Relay 2.67 in

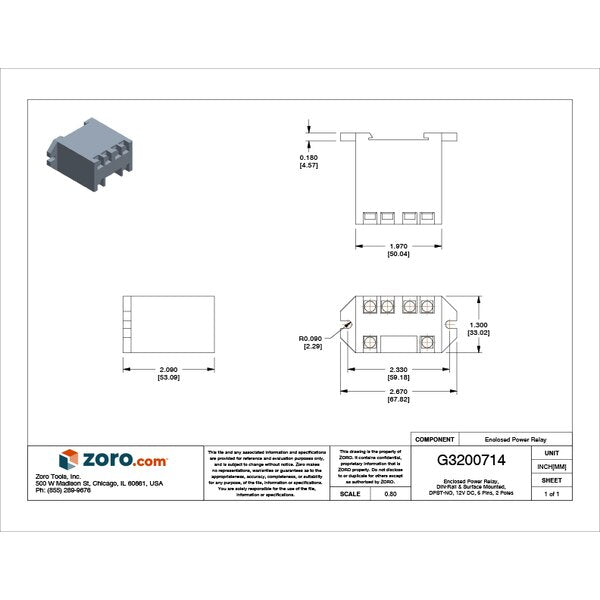

CAD Available Yes

Coil Rating 2.5VA, 1.9W

Coil Resistance 75 ohm

Coil Voltage 12V DC

Coil Voltage Type DC

Coil Volts 12V DC

Connections - terminals Screw coil terminal M3.5; Screw contact terminal M4

Contact Amp Rating (Resistive) 25A @ 277VAC/30VDC

Contact Composition 2 NO

Contact Form DPST-NO

Contact Form - Relay DPST-NO

Contact Material Silver Alloy

Contact Rating (AC) 25 A @ 240/277V

Contact Rating (DC) 25 A @ 28/30V

Contacts Material Silver alloy contacts

Country of Origin (subject to change) China

Current Rating 25 A

DC Contact Rating - Relay 25A @ 28V

Depth 2.12 in (53.9 mm)

Dielectric Strength 2,000V AC Between Poles, 4,000V AC Between Coil and Contact

Dimensions 2.09H, 2.67W, 1.30D

Electrical Connection Screw Terminal

Electrical Connection - Power Relay Screw

Electrical Connection Type Screw

Electrical Durability 100000 cycles resistive IEC

Electrical Operating Durability 100,000

Features 2hp @ 277V AC, LED & Button

Frequency 50/60 Hz

Height 2.67 in (67.7 mm)

Horsepower @ 120V AC 1 hp

Horsepower @ 240V AC 2 hp

HP @ 120V 1

HP @ 240V 2

Hz - Electrical 50/60 Hz

Hz_ 50/60

Input Voltage 9.6 to 13.2V DC

IP Rating IP20

Item - Relay Enclosed Power Relay

Local Signalling LED indicator test button

Maximum Operating Temperature 131 Degrees F

Maximum Switching Voltage 240V, 277V

Mechanical Durability 5000000 cycles

Mechanical Operating Durability 5,000,000

Minimum Operating Temperature -4 Degrees F

Minimum Switching Current 100 mA

Motor Rated Yes

Mounting Flange, Bottom/Din Rail

Mounting - Relay Bottom Flange, DIN Rail

Mounting Style DIN Rail & Top Flange

Nominal input voltage 9.6...13.2 V DC

Number of Pins 6

Number of Pins - Relay 6

Number of Poles 2

Operating Current 25 A at 240V AC (General Purpose), 25 A at 240V AC (Resistive Load), 25 A at 277V AC (Resistive Load), 25 A at 28V DC (Resistive Load), 25 A at 30V DC (Resistive Load)

Overall Depth 2.12 in

Overall Height - Relay 2.09 in

Package Quantity 1

Pins 6

Power Consumption 1.9 W

Power Consumption - Relay 2.5 W

Product Certifications UL; CSA; CE

Product Range Harmony Electromechanical Relays

Product Type DIN rail/panel mount relay

Push-To-Test Button Manual Push Test Button

Push-To-Test Method Test Button

Rated Power in HP 1 hp 120 V AC; 2 hp 277 V AC

Rated power in W 1.3 kW 120 V tungsten

Relay Mounting Style DIN-Rail & Surface

Response Time 30 msec

Series Harmony(TM) 725 Power Series

Series name Power

Socket Code Configurator DIN-Rail & Surface / Square / 6

Standards CE Certified, CSA Certified, IEC 60947-1, UL60947-4-1A

Status Indicator LED Indicator

Tightening Torque 10.6...15 lb.in; 1.2...1.7 N.m

Weight 4.23 oz

Width 1.37 in (34.9 mm)

[Ie] rated operational current 25 A at 277 V AC (on resistive load) conforming to UL; 25 A at 240 V AC (general purpose) conforming to UL; 25 A at 30 V DC (on resistive load) conforming to UL; 25 A at 240 V AC (on resistive load) conforming to IEC; 25 A at 28 V DC (on resistive load) conforming to IEC

[Uc] control circuit voltage 12 V
