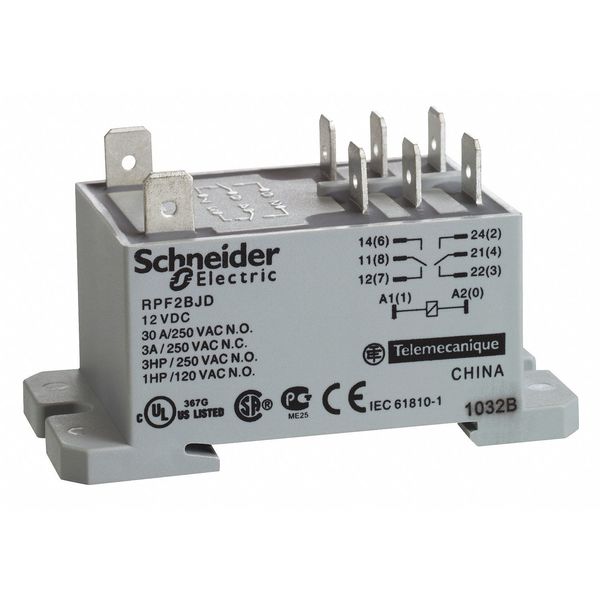

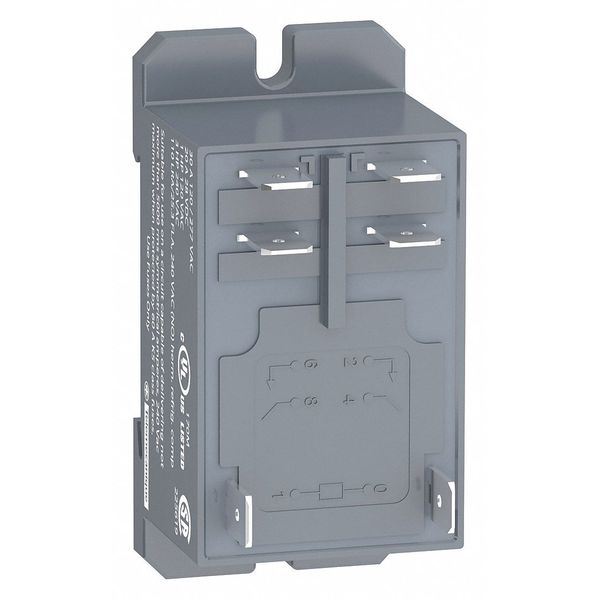

Enclosed Power Relay, DIN-Rail & Surface Mounted, DPST-NO, 12V DC, 6 Pins, 2 Poles
Enclosed Power Relay, DIN-Rail & Surface Mounted, DPST-NO, 12V DC, 6 Pins, 2 Poles

Enclosed Power Relay, DIN-Rail & Surface Mounted, DPST-NO, 12V DC, 6 Pins, 2 Poles

  • Schneider Electric
  • Enclosed Power Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form DPST-NO, Current Rating 30 A, Electrical Connection 1/4 in Tab Terminal, Flat Pin Width 0.25 in, Number of Pins 6, Sealing Sealed, Status Indicator No Indicator, Contact Rating (AC) 30 A @ 250/277V (NO), Contact Rating (DC) 20 A @ 28V (NO), 25 A @ 28V (NO), Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 3 hp, Mounting Style DIN Rail & Top Flange, Push-To-Test Method No Button, Body Depth 1.18 in, Body Height 1.33 in

    graingerSKU: 1YAC1, mscSKU: , zoro_no: G0716152, mongo_id: 65bbe7379a749db822726236

Web Price
$21.49 / each
Qty

Product Details

30A @ 277V
Square
Square
1.18 in
2.68 in
1.33 in
1.61 in
2.7 in
1.35 in
Yes
4.0VA, 1.7W
86 Ohm at 20°C +/- 10 %
12V DC
DC
12V DC
30A @ 277VAC, 20A @ 28VDC
DPST-NO
DPST-NO
Silver Tin Oxide
30 A @ 250/277V (NO)
20 A @ 28V (NO), 25 A @ 28V (NO)
China
30 A
20A @ 28V
1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Poles with Basic, 4,000V AC Between Coil and Contact with Reinforced
2000 V AC between poles with basic || 4000 V AC between coil and contact with reinforced || 1500 V AC between contacts with micro disconnection
1.65H, 1.34W, 2.68D
1/4 in Tab Terminal
1/4 in Tab Terminal
Tab
100,000
Sealed
Sealed Construction
0.25 in
Hard-Wired Logic Automated Systems
50/60 Hz
1 hp
3 hp
1
3
50/60 Hz
50/60
9.6 to 13.2V
IP40
Enclosed Power Relay
131 Degrees F
250V AC
5,000,000
-40 Degrees F
Yes
Flange, Bottom/Din Rail
Bottom Flange, DIN Rail
DIN Rail & Top Flange
DIN rail || panel
6
6
2
20 A at 28V DC (NO UL), 25 A at 28V DC (NO IEC), 30 A at 250V AC (NO IEC), 30 A at 77V AC (NO UL)
-40-55°C
1.54 in
1.54 in
1
6
1.7 W
4.0 W
RT II
No Test Button
No Button
DIN-Rail & Surface
Shock-Resistant, Vibration-Resistant
25 msec
Sealed
Harmony(TM) RPF Power Series
DIN-Rail & Surface / Square / 6 / 0.25 in
CE Certified, CSA C22.2 No 14, EN/IEC 61810-1, GOST, UL 508
None
250 V IEC
2.88 oz
