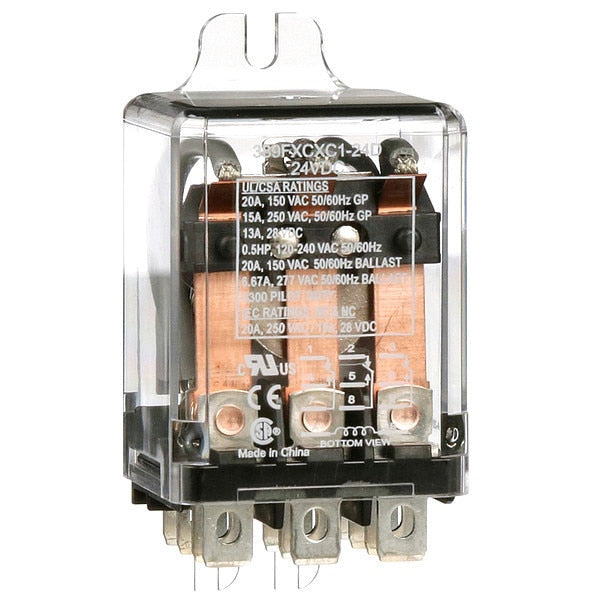

Enclosed Power Relay, Surface (Side Flange) Mounted, 3PDT, 24V DC, 11 Pins, 3 Poles

SKU
Brand Schneider Electric
Categories
Description Enclosed Power Relay, Base Shape Octal, Coil Voltage 24V DC, Contact Form 3PDT, Current Rating 20 A, Electrical Connection Quick-Connect, Number of Pins 11, Status Indicator Mechanical Flag, Contact Rating (AC) 15 A @ 250V, 20 A @ 150/250V, 6.67 A @ 277V, Contact Rating (DC) 13 A @ 28V, 15 A @ 28V, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Flange, Body Depth 1.4 in, Body Height 2.9 in, Body Width 1.53 in, Coil Resistance 400 ohm, Contact Material Silver Alloy
graingerSKU: 6CVA1, mscSKU: , zoro_no: G3267345, mongo_id: 65bbe7ba3aaddbd5a90b0d2b

Web Price

$52.19 / each

Qty

Product Details

AC Contact Rating - Relay 20A @ 150V

Ambient Air Temperature for Operation -22 to 131ÃÂ°F (-30 to 55ÃÂ°C)

Ambient Air Temperature for Storage -22 to 185ÃÂ°F (-30 to 85ÃÂ°C)

Base Shape Octal

Base Type Flange

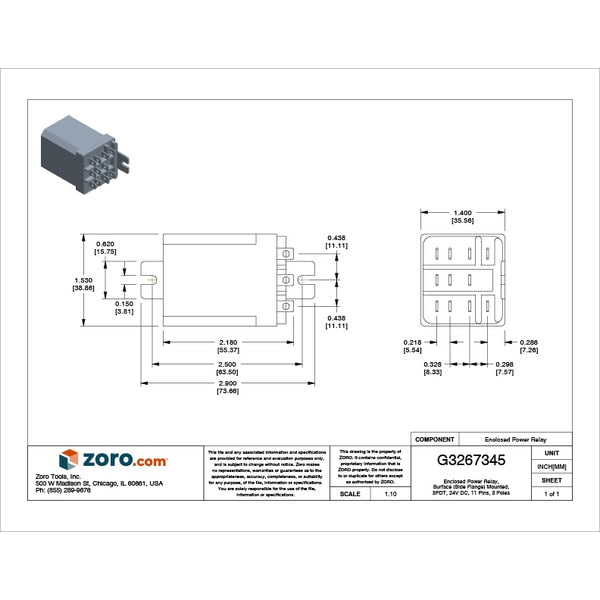

Body Depth 1.4 in

Body Depth - Relay 1.4 in

Body Height 2.9 in

Body Height - Relay 2.9 in

Body Width 1.53 in

Body Width - Relay 1.53 in

CAD Available Yes

Coil Resistance 400 ohm

Coil Voltage 24V DC

Coil Voltage Type DC

Coil Volts 24V DC

Connections Terminals Quick

Contact Amp Rating (Resistive) 20A @ 150VAC

Contact Composition 3 NO + 3 NC

Contact Form 3PDT

Contact Form - Relay 3PDT

Contact Material Silver Alloy

Contact Rating (AC) 15 A @ 250V, 20 A @ 150/250V, 6.67 A @ 277V

Contact Rating (DC) 13 A @ 28V, 15 A @ 28V

Contacts Material Silver alloy contacts

Country of Origin (subject to change) China

Current Rating 20 A

DC Contact Rating - Relay 13A @ 28V

Dielectric Strength 1,600V AC Between Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles

Drop-out Voltage Threshold >= 0.1 Uc AC/DC

Electrical Connection Quick-Connect

Electrical Connection - Power Relay 1/4 in Tab Terminal

Electrical Connection Type Tab

Electrical Durability 100000 cycles resistive load; 50000 cycles resistive DC load

Electrical Operating Durability 100,000

Features Flag Indicator

Frequency 50/60 Hz

Horsepower @ 120V AC 1/2 hp

Horsepower @ 240V AC 1/2 hp

HP @ 120V 1/2

HP @ 240V 1/2

Hz - Electrical 50/60 Hz

Hz_ 50/60

Input Voltage 24V DC

Item - Relay Enclosed Power Relay

Maximum Operating Temperature 131 Degrees F

Maximum Switching Voltage 300V AC

Mechanical Durability 5000000 cycles

Mechanical Operating Durability 5,000,000

Minimum Operating Temperature -22 Degrees F

Minimum Switching Current 100 mA

Motor Power HP 0.5 hp 120/240 V AC 50/60 Hz

Motor Rated Yes

Mounting Side

Mounting - Relay Side Flange

Mounting Style Flange

Number of Pins 11

Number of Pins - Relay 11

Number of Poles 3

Operating Current 13 A at 28V DC (Resistive Load), 15 A at 250V AC (Resistive Load), 15 A at 28V DC (NO/NC), 20 A at 150V AC (Ballast), 20 A at 150V AC (Resistive Load), 20 A at 250V AC (NO/NC), 6.67 A at 277V AC (Ballast)

Overall Depth 2.9 in

Overall Height - Relay 2.9 in

Package Quantity 1

Pins 11

Power Consumption 1.3 W, 2 VA

Power Consumption - Relay 3.5 W

Power consumption in VA 2 VA AC

Power consumption in W 1.3 W DC

Product Certifications cURus; CSA; CE

Product Type Power relay

Rated Operational Current 20 A at 150 V AC (on resistive load) conforming to UL; 15 A at 250 V AC (on resistive load) conforming to UL; 13 A at 28 V DC (on resistive load) conforming to UL; 20 A at 150 V AC (ballast) conforming to UL; 6.67 A at 277 V AC (ballast) conforming to UL; 20 A at 250 V AC (NO/NC) conforming to IEC; 15 A at 28 V DC (NO/NC) conforming to IEC

Relay Mounting Style Surface (Side Flange)

Response Time 20 msec

Series 389F Power Series

Socket Code Configurator Surface (Side Flange) / Octal / 11

Standards CE Certified, CSA Certified, cURus

Status Indicator Mechanical Flag

Voltage Range 0.8...1.1 Uc DC

Weight 2.96 oz
