Home / Enclosed Power Relay, Surface (Top Flange) Mounted, SPDT, 24V AC, 5 Pins, 1 Poles

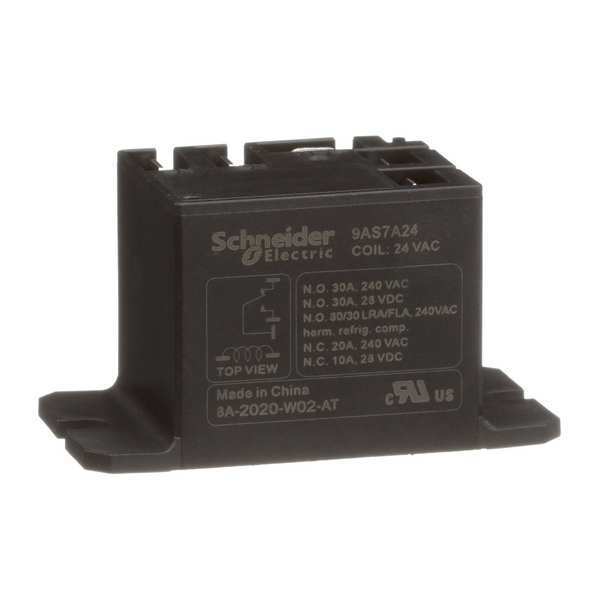

Enclosed Power Relay, Surface (Top Flange) Mounted, SPDT, 24V AC, 5 Pins, 1 Poles

SKU
Brand Schneider Electric
Categories
Description Enclosed Power Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form SPDT, Electrical Connection Faston Terminal, Number of Pins 5, Sealing Sealed, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 277V-5a (NO), 10 A @ 277V-8a (NC), 12 A @ 240V-8a (NC), 20 A @ 240V-1 (NC), 22 A @ 120V-8a (NO), 3 A @ 277V-5a (NC), 30 A @ 240V (NO), 30 A @ 240V-8a (NC), 30 A @ 240V-8a (NO), 33 A @ 277V-8a (NC), 80 A @ 240V-8a (NO), 98 A @ 120V-8a (NO)
graingerSKU: 6CWZ2, mscSKU: , zoro_no: G2398401, mongo_id: 65bbe76d3aaddbd5a90940a3

Web Price

$12.49 / each

Qty

Product Details

AC Contact Rating - Relay 15A @ 240V (NC), 30A @ 240V (NO)

ambient temperature range - operational -40 to 104ÃÂ°F (-40 to 40ÃÂ°C)

Ambient Temperature Range - Storage -40 to 185ÃÂ°F (-40 to 85ÃÂ°C)

Average Resistance 100 Ohm at 73ÃÂ°F (23ÃÂ°C) +/- 10 %

Base Shape Square

Base Type Flange

Body Depth 0.11 in

Body Depth - Relay 1.976 in

Body Height 1.97 in

Body Height - Relay 1.094 in

Body Width 1.08 in

Body Width - Relay 1.083 in

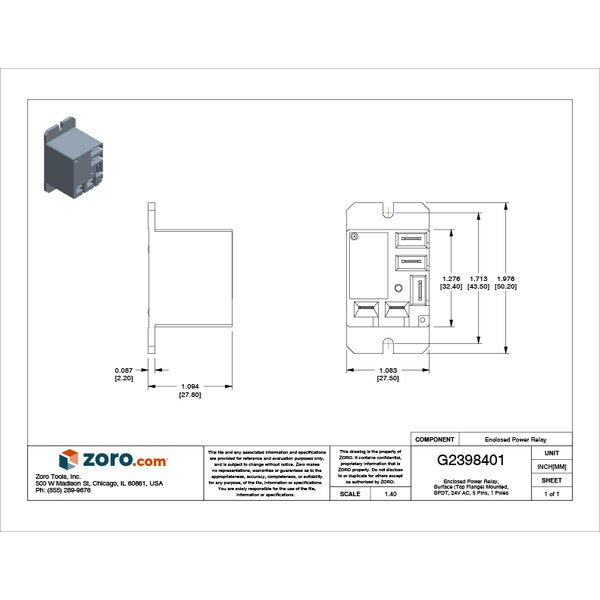

CAD Available Yes

Coil Rating 2.8VA, 1.0W

Coil Resistance 100 ohm

Coil Voltage 24V AC

Coil Voltage Type AC

Coil Volts 24V AC

Connections Terminals Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm; Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm

Contact Amp Rating (Inductive) 22A @ 120V AC-8a (NO), 30A @ 240V AC-8a (NO), 12A @ 240 V AC-8a (NC), 10A @ 277 V AC-8a (NC)

Contact Amp Rating (Resistive) 30A @ 240VAC (NO), 15A @ 240VAC (NC)

Contact Form SPDT

Contact Form - Relay SPDT

Contact Material Silver Alloy

Contact Rating (AC) 10 A @ 277V-5a (NO), 10 A @ 277V-8a (NC), 12 A @ 240V-8a (NC), 20 A @ 240V-1 (NC), 22 A @ 120V-8a (NO), 3 A @ 277V-5a (NC), 30 A @ 240V (NO), 30 A @ 240V-8a (NC), 30 A @ 240V-8a (NO), 33 A @ 277V-8a (NC), 80 A @ 240V-8a (NO), 98 A @ 120V-8a (NO)

Contact Rating (DC) 10 A @ 28V (NC), 30 A @ 28V (NO)

Contacts Material Silver alloy contacts

Control Circuit Voltage Limits 0.85...1.1 Uc

Country of Origin (subject to change) China

DC Contact Rating - Relay 10A @ 28V (NC), 30A @ 28V (NO)

Depth 1.09 in (27.8 mm)

Dielectric Strength 1,500V Between Contacts with Micro Disconnection, 2,500V AC Between Coil and Contact

Dielectric Voltage 2500 V AC between coil and contact || 1500 V between contacts with micro disconnection

Dimensions 1.10H, 1.06W, 1.95D

Drop-out Voltage Threshold >= 0.2 Uc

Electrical Connection Faston Terminal

Electrical Connection - Power Relay 1/4 in Tab Terminal

Electrical Connection Type Tab

Electrical Durability 100000 cycles, 30 A at 240 V, AC-1 NO; 50000 cycles for resistive load, 30 A at 28 V, DC NO; 30000 cycles for full load, 22 A at 120 V, AC-8a NO; 30000 cycles for full load, 30 A at 240 V, AC-8a NO; 1000 cycles for motor load NO; 6000 cycles for ballast load, 10 A at 277 V, AC-5a NO; 100000 cycles, 20 A at 240 V, AC-1 NC; 100000 cycles for resistive load, 10 A at 28 V, DC NC; 30000 cycles for full load, 12 A at 240 V, AC-8a NC; 30000 cycles for full load, 10 A at 277 V, AC-8a NC; 1000 cycles for motor load NC; 6000 cycles for ballast load, 3 A at 277 V, AC-5a NC

Electrical Operating Durability 100,000

Environmental Protection Sealed

Features Ballast Load Ratings, Class F Coil Insulation

For Use With Alarm Systems, HVAC Equipment, Motor Controls

Frequency 50/60 Hz

Height 1.97 in (50 mm)

Horsepower @ 120V AC 1 hp

Horsepower @ 240V AC 2 hp

HP @ 120V 1

HP @ 240V 2

Hz - Electrical 50/60 Hz

Hz_ 50/60

Input Voltage 24V AC

Item - Relay Enclosed Power Relay

Load Current 30 A NO; 20 A NC

Maximum Operating Temperature 104 Degrees F

Maximum Switching Voltage 277V AC, 28V DC

Mechanical Durability 10000000 cycles

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -40 Degrees F

Minimum Switching Capacity 5 W at 1 A, 5 V DC; 12 VA at 1 A, 12 V AC

Motor Rated Yes

Mounting Flange, Bottom

Mounting - Relay Bottom Flange

Mounting Style Panel Flange

Mounting Type panel flange

Network Frequency 50-60 Hz

Number of Pins 5

Number of Pins - Relay 5

Number of Poles 1

Operate Time 20 ms

Operating Current 10 A at 277V AC-5a (NO Ballast), 10 A at 277V AC-8a (NC Full Load), 10 A at 28V DC (NC Resistive Load), 12 A at 240V AC-8a (NC Full Load), 20 A at 240V AC-1 (NC), 22 A at 120V AC-8a (NO Full Load), 3 A at 277V AC-5a (NC Ballast), 30 A at 240V AC (NO), 30 A at 240V AC-8a (NC Locked Rotor), 30 A at 240V AC-8a (NO Full Load), 30 A at 28V DC (NO Resistive Load), 33 A at 277V AC-8a (NC Locked Rotor), 80 A at 240V AC-8a (NO Locked Rotor), 98 A at 120V AC-8a (NO Locked Rotor)

Operating Position Any position

Operating Temp. Range -40-40ÃÂ°C

Overall Depth 1.09 in

Overall Height - Relay 1.1 in

Package Quantity 1

Pins 5

Pollution Degree 3

Power Consumption 2.6 VA

Power Consumption - Relay 2.8 VA

Product Certifications UL

Product Range Harmony

Product Type Power relay

Protection Category RT III

Rated Impulse Withstand Voltage 4 kV 1.2/50ÃÂµs

Rated Insulation Voltage 320 V

Rated Operational Current 30 A at 240 V AC-1 (NO); 20 A at 240 V AC-1 (NC); 30 A at 28 V DC (NO) (on resistive load); 10 A at 28 V DC (NC) (on resistive load); 22 A at 120 V AC-8a (NO) (full load); 98 A at 120 V AC-8a (NO) (locked rotor); 30 A at 240 V AC-8a (NO) (full load); 80 A at 240 V AC-8a (NO) (locked rotor); 12 A at 240 V AC-8a (NC) (full load); 30 A at 240 V AC-8a (NC) (locked rotor); 10 A at 277 V AC-8a (NC) (full load); 33 A at 277 V AC-8a (NC) (locked rotor); 10 A at 277 V AC-5a (NO) (ballast); 3 A at 277 V AC-5a (NC) (ballast)

Rated Power in HP 1 hp at 125 V AC, NO; 2 hp at 250 V AC, NO; 0.25 hp at 125 V AC, NC; 0.5 hp at 250 V AC, NC

Rated Power in VA 470 VA at 240 V, NO on pilot duty; 275 VA at 240 V, NC on pilot duty

Relay Mounting Style Surface (Top Flange)

Release Time 10 ms

Resistance Properties Shock-Resistant, Vibration-Resistant

Response Time 20 msec

Sealing Sealed

Series 9A Power Series

Shock Resistance 10 gn operating; 100 gn not operating

Socket Code Configurator Surface (Top Flange) / Square / 5

Standards UL60947-4-1

Switching Voltage 277 V AC || 28 V DC
