Enclosed Power Relay, Surface (Top Flange) Mounted, SPST-NO, 12V DC, 4 Pins, 1 Poles

SKU
Brand Schneider Electric
Categories
Description Enclosed Power Relay, Coil Voltage 12V DC, Contact Form SPST-NO, Electrical Connection Faston Terminal, Number of Pins 4, Sealing Sealed, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 277V, 22 A @ 20V, 24 A @ 240V, 30 A @ 240V, 98 A @ 120V, Contact Rating (DC) 30 A @ 28V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 2 hp, Mounting Style Panel Flange, Body Depth 0.11 in, Body Height 1.97 in, Body Width 1.08 in, Coil Resistance 155 ohm, Contact Material Silver Alloy
graingerSKU: , mscSKU: , zoro_no: G1320882, mongo_id: 65bbe6103aaddbd5a9004ed3

Web Price

$14.24 / each

Qty

Product Details

AC Contact Rating - Relay 30A @ 240V

ambient temperature range - operational -40 to 104ÃÂ°F (-40 to 40ÃÂ°C)

Ambient Temperature Range - Storage -40 to 185ÃÂ°F (-40 to 85ÃÂ°C)

Average Coil Consumption 0.9 W

Average Resistance 155 Ohm at 73ÃÂ°F (23ÃÂ°C) +/- 10 %

Base Type Flange

Body Depth 1.976 in

Body Depth - Relay 1.976 in

Body Height 1.094 in

Body Height - Relay 1.094 in

Body Width 1.083 in

Body Width - Relay 1.083 in

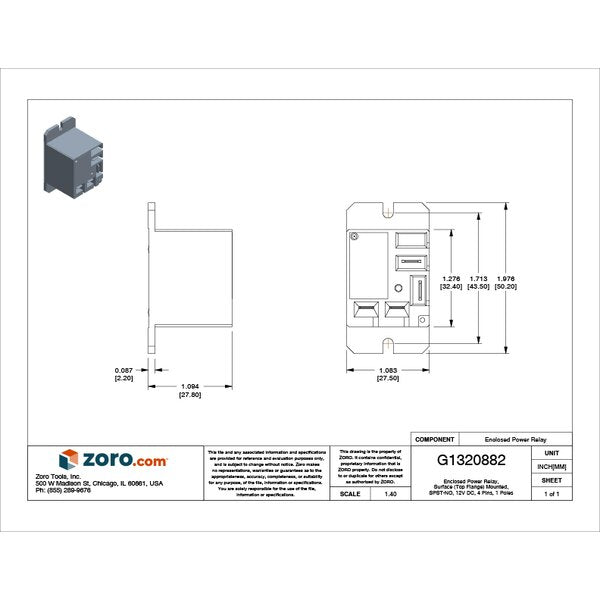

CAD Available Yes

Coil Rating 2.8VA, 1.0W

Coil Resistance 155 ohm

Coil Voltage 12V DC

Coil Voltage Type DC

Coil Volts 12V DC

Connections Terminals Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm; Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm

Contact Amp Rating (Inductive) 22A @ 120V AC-8a

Contact Amp Rating (Resistive) 30A @ 240VAC/28VDC

Contact Composition NO

Contact Form SPST-NO

Contact Form - Relay SPST-NO

Contact Material Silver Alloy

Contact Rating (AC) 10 A @ 277V, 22 A @ 20V, 24 A @ 240V, 30 A @ 240V, 98 A @ 120V

Contact Rating (DC) 30 A @ 28V

Contacts Material Silver alloy contacts

Control Circuit Voltage Limits 0.8...1.1 Uc

Country of Origin (subject to change) China

DC Contact Rating - Relay 30A @ 28V

Depth 1.09 in (27.8 mm)

Dielectric Strength 1,500V Between Contacts with Micro Disconnection, 2,500V AC Between Coil and Contact

Dielectric Voltage 2500 V AC between coil and contact || 1500 V between contacts with micro disconnection

Dimensions 1.10H, 1.06W, 1.95D

Drop-out Voltage Threshold >= 0.1 Uc

Electrical Connection Faston Terminal

Electrical Connection - Power Relay 1/4 in Tab Terminal

Electrical Connection Type Tab

Electrical Durability 100000 cycles, 30 A at 240 V, AC-1; 50000 cycles for resistive load, 30 A at 28 V, DC; 100000 cycles for resistive load, 24 A at 240 V, AC; 30000 cycles for full load, 22 A at 120 V, AC-8a; 1000 cycles for motor load; 6000 cycles for ballast load, 10 A at 277 V, AC-5a

Electrical Operating Durability 100,000

Environmental Protection Sealed

Features Class F Coil Insulation

For Use With Alarm Systems, HVAC Equipment, Motor Controls

Frequency 50/60 Hz

Height 1.97 in (50 mm)

Horsepower @ 120V AC 1 hp

Horsepower @ 240V AC 2 hp

HP @ 120V 1

HP @ 240V 2

Hz - Electrical 50/60 Hz

Hz_ 50/60

Input Voltage 12V DC

Item - Relay Enclosed Power Relay

Load Current 30 A

Maximum Operating Temperature 104 Degrees F

Maximum Switching Voltage 277V AC, 28V DC

Mechanical Durability 10000000 cycles

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -40 Degrees F

Minimum Switching Capacity 5 W at 1 A, 5 V DC; 12 VA at 1 A, 12 V AC

Motor Rated Yes

Mounting Flange, Bottom

Mounting - Relay Bottom Flange

Mounting Style Panel Flange

Mounting Type panel flange

Network Frequency 50-60 Hz

Number of Pins 4

Number of Pins - Relay 4

Number of Poles 1

Operate Time 20 ms

Operating Current 10 A at 277V (Ballast), 22 A at 20V AC (Full Load), 24 A at 240V AC (Resistive Load), 30 A at 240V AC, 30 A at 28V DC (Resistive Load), 98 A at 120V AC (Locked Rotor)

Operating Position Any position

Operating Temp. Range -40-40ÃÂ°C

Overall Depth 1.09 in

Overall Height - Relay 1.1 in

Package Quantity 1

Pins 4

Pollution Degree 3

Power Consumption 2.8 W

Power Consumption - Relay 2.8 W

Product Certifications UL

Product Range Harmony

Product Type Power relay

Protection Category RT III

Rated Impulse Withstand Voltage 4 kV 1.2/50ÃÂµs

Rated Insulation Voltage 320 V

Rated Operational Current 30 A at 240 V AC-1; 30 A at 28 V DC (on resistive load); 24 A at 240 V AC (on resistive load); 98 A at 120 V AC-8a (locked rotor); 22 A at 120 V AC-8a (full load); 10 A at 277 V AC-5a (ballast)

Rated Power in HP 1 hp at 125 V AC; 2 hp at 250 V AC

Rated Power in VA 470 VA at 240 V on pilot duty

Relay Mounting Style Surface (Top Flange)

Release Time 10 ms

Resistance Properties Shock-Resistant, Vibration-Resistant

Response Time 20 msec

Sealing Sealed

Series 9A Power Series

Shock Resistance 10 gn operating; 100 gn not operating

Socket Code Configurator Surface (Top Flange) / 4

Standards UL60947-4-1

Switch Function SPST
