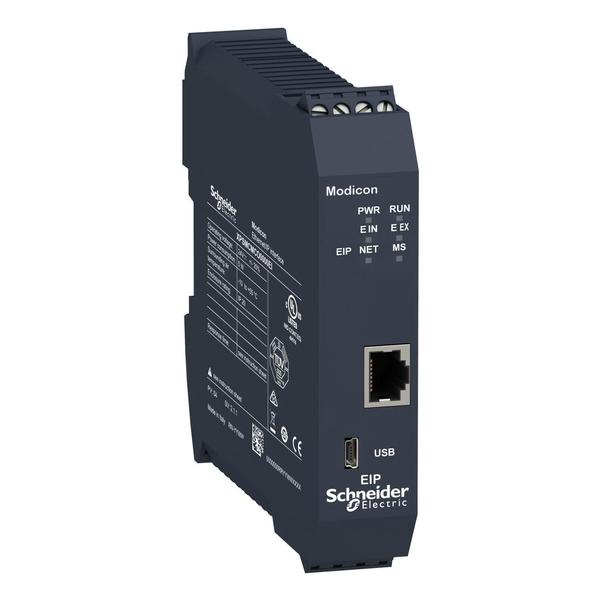

Ethernet/IP diagnostic expansion module

SKU
Brand Schneider Electric
Categories
Description Ethernet/IP diagnostic expansion module

Web Price

$623.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -10-55ÃÂ°C

Ambient Air Temperature For Storage -20-85ÃÂ°C

Cable Cross Section 0.2-1.5 mmÃÂ² - AWG 24 to AWG 16 flexible without cable end || 0.2-2.5 mmÃÂ² - AWG 24 to AWG 14 flexible without cable end || 0.25-1 mmÃÂ² - AWG 23 to AWG 18 flexible with cable end, without bezel || 0.25-2.5 mmÃÂ² - AWG 23 to AWG 14 flexible with cable end, with bezel || 0.25-2.5 mmÃÂ² - AWG 23 to AWG 14 flexible with cable end, without bezel || 0.5-1.5 mmÃÂ² - AWG 20 to AWG 16 flexible with cable end, with double bezel || 0.2-1 mmÃÂ² - AWG 24 to AWG 18 solid without cable end || 0.2-2.5 mmÃÂ² - AWG 24 to AWG 14 solid without cable end

Communication Port Protocol Ethernet TCP/IP

Connections - Terminals 2 captive screw clamp terminals, removable terminal block

Connector Type RJ45

Country of Origin (subject to change) Italy

Current Consumption 0.125 mA

Depth 114.5 mm

Device Short Name XPSMCM

Electromagnetic Compatibility electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2 || electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 to 1000 MHz) EN/IEC 61000-4-3 || susceptibility to electromagnetic fields 30 V/m 1.4 GHz to 2 GHz) EN/IEC 61000-4-3

Height 99 mm

Insulation 250 V AC between power supply and housing EN/IEC 61800-5-1

Ip Degree Of Protection IP20

Local Signalling LED green PWR power ON || LED green RUN operating || LED red E IN internal error || LED red E EX external error || LED green/red NET connection state || LED green/red STS communication status

Maximum Cable Distance Between Devices 100 m

Method Of Access server

Mounting Support omega 35 mm DIN rail EN 50022

Number Of Port 1

Operating Altitude 6561.68 ft (2000 m)

Overvoltage Category II

Package Quantity 1

Pollution Degree 2

Power Dissipation In W 3 W

Product Certifications cULus || RCM || TUV

Product Or Component Type non-safe communication module

Quality Labels CE
