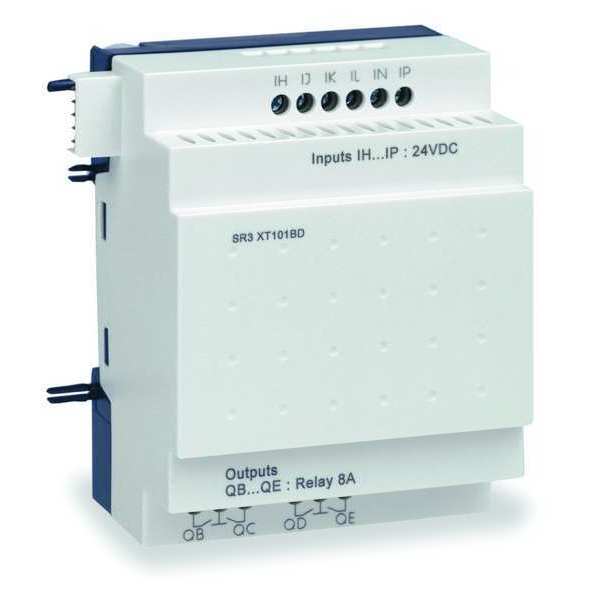

Expansion Module, 6 inputs, 4 outputs

SKU
Brand Schneider Electric
Categories
Description Extension Module, Number of Inputs 6, For Use With SR3 Logic Relays, Number of Outputs 4, Power Required 24V DC, Features 4 Relay Outputs, 6 Discrete Inputs, Product Type Extension Module
graingerSKU: 1CNL4, mscSKU: , zoro_no: G0263724, mongo_id: 65bbe82a22d7a989a98dd7cf

Web Price

$142.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-40ÃÂ°C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55ÃÂ°C IEC 60068-2-1 and IEC 60068-2-2

Ambient Air Temperature For Storage -40-70ÃÂ°C

Backup Time 10 years 25ÃÂ°C

Checks Program memory on each power up

Clock Drift 12 min/year 0-55ÃÂ°C

Connections - Terminals screw terminals, 1 x 0.25 to 1 x 2.5 mmÃÂ² AWG 24 to AWG 14) flexible with cable end || screw terminals, 2 x 0.25 to 2 x 0.75 mmÃÂ² AWG 24 to AWG 18) flexible with cable end || screw terminals, 1 x 0.2 to 1 x 2.5 mmÃÂ² AWG 25 to AWG 14) semi-solid || screw terminals, 1 x 0.2 to 1 x 2.5 mmÃÂ² AWG 25 to AWG 14) solid || screw terminals, 2 x 0.2 to 2 x 1.5 mmÃÂ² AWG 24 to AWG 16) solid

Contacts Type And Composition NO relay output

Counting Frequency 1 kHz discrete input

Country of Origin (subject to change) France

Current State 0 Guaranteed <= 0.5 mA IB to IG used as discrete input circuit) || <= 0.75 mA I1 to IA and IH to IR discrete input circuit)

Current State 1 Guaranteed >= 1.2 mA IB to IG used as discrete input circuit) || >= 2.2 mA I1 to IA and IH to IR discrete input circuit)

Cycle Time 6-90 ms

Discrete Input Current 4 mA

Discrete Input Number 6 EN/IEC 61131-2 type 1

Discrete Input Type resistive

Discrete Input Voltage 24 V DC

Disturbance Radiated/Conducted class B EN 55022-11 group 1

Electrical Durability AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1 || AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1

Environmental Characteristic EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || low voltage directive EN/IEC 61131-2

Features 4 Relay Outputs, 6 Discrete Inputs

For Use With SR3 Logic Relays

Input Compatibility 3-wire proximity sensors PNP discrete input

Input Impedance 12 kOhm IB to IG used as discrete input circuit || 7.4 kOhm I1 to IA and IH to IR discrete input circuit

Ip Degree Of Protection IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)

Maximum Altitude Transport 3048 m

Mechanical Durability 10000000 cycles relay output

Number of Inputs 6

Number of Outputs 4

Number Or Control Scheme Lines 120-120 ladder

Operating Altitude 6561.68 ft (2000 m)

Operating Rate In Hz 0.1 Hz at Ie)relay output || 10 Hz no load)relay output

Output Thermal Current 8 A for all 4 outputs relay output

Output Voltage Limits 24 to 250 V AC relay output) || 5 to 30 V DC relay output)

Overvoltage Category III EN/IEC 60664-1

Package Quantity 1

Pollution Degree 2 EN/IEC 61131-2

Power Required 24V DC

Product Certifications GL || C-tick || UL || GOST || CSA

Product Or Component Type discrete I/O extension module

Relative Humidity 95-95 % without condensation or dripping water

Response Time 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output

Reverse Polarity Protection with

Standards EN/IEC 61000-4-4 level 3 || EN/IEC 61000-4-2 level 3 || EN/IEC 61000-4-3 || EN/IEC 61000-4-12 || EN/IEC 61000-4-11 || EN/IEC 60068-2-6 Fc || EN/IEC 60068-2-27 Ea || EN/IEC 61000-4-6 level 3 || EN/IEC 61000-4-5

Supply Voltage Limits 19.2-30 V

Switching Capacity In Ma >= 10 mA 12 V relay output)

Tightening Torque 0.5 N.m

Voltage State 0 Guaranteed <= 5 V I1 to IA and IH to IR discrete input circuit || <= 5 V IB to IG used as discrete input circuit

Voltage State 1 Guaranteed >= 15 V I1 to IA and IH to IR discrete input circuit || >= 15 V IB to IG used as discrete input circuit

[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1 and EN/IEC 60664-1

[Us] Rated Supply Voltage 24 V DC
