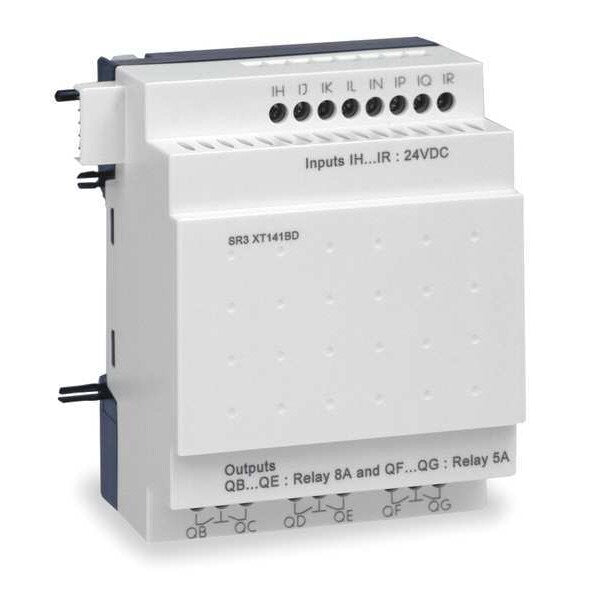

Expansion Module, 8 inputs, 6 Relay Output

SKU
Brand Schneider Electric
Categories
Description Extension Module, Number of Inputs 8, For Use With SR3 Logic Relays, Number of Outputs 6, Power Required 100 to 240V AC, Features 6 Relay Outputs, 8 Discrete Inputs, Product Type Extension Module
graingerSKU: 1CNL5, mscSKU: , zoro_no: G3475866, mongo_id: 65bbe66d3aaddbd5a902d213

Web Price

$211.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-40ÃÂ°C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55ÃÂ°C IEC 60068-2-1 and IEC 60068-2-2

Ambient Air Temperature For Storage -40-70ÃÂ°C

Backup Time 10 years 25ÃÂ°C

Clock Drift 12 min/year 0-55ÃÂ°C

Connections - Terminals screw terminals, 1 x 0.25 to 1 x 2.5 mmÃÂ² AWG 24 to AWG 14) flexible with cable end || screw terminals, 2 x 0.25 to 2 x 0.75 mmÃÂ² AWG 24 to AWG 18) flexible with cable end || screw terminals, 1 x 0.2 to 1 x 2.5 mmÃÂ² AWG 25 to AWG 14) semi-solid || screw terminals, 1 x 0.2 to 1 x 2.5 mmÃÂ² AWG 25 to AWG 14) solid || screw terminals, 2 x 0.2 to 2 x 1.5 mmÃÂ² AWG 24 to AWG 16) solid

Contacts Type And Composition NO relay output

Country of Origin (subject to change) France

Current State 0 Guaranteed <= 0.5 mA discrete input)

Current State 1 Guaranteed >= 0.17 mA discrete input)

Cycle Time 6-90 ms

Discrete Input Current 0.6 mA

Discrete Input Frequency 57 to 63 Hz || 47 to 53 Hz

Discrete Input Number 8

Discrete Input Voltage 100 to 240 V AC

Disturbance Radiated/Conducted class B EN 55022-11 group 1

Electrical Durability AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1 || AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1

Environmental Characteristic EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || low voltage directive EN/IEC 61131-2

Features 6 Relay Outputs, 8 Discrete Inputs

For Use With SR3 Logic Relays

Input Impedance 350 kOhm discrete input

Ip Degree Of Protection IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)

Maximum Altitude Transport 3048 m

Mechanical Durability 10000000 cycles relay output

Number of Inputs 8

Number of Outputs 6

Number Or Control Scheme Lines 120-120 ladder

Operating Altitude 6561.68 ft (2000 m)

Operating Rate In Hz 0.1 Hz at Ie)relay output || 10 Hz no load)relay output

Output Thermal Current 5 A for 2 outputs relay output || 8 A for 4 outputs relay output

Output Voltage Limits 5 to 30 V DC relay output) || 24 to 250 V AC

Overvoltage Category III EN/IEC 60664-1

Package Quantity 1

Pollution Degree 2 EN/IEC 61131-2

Power Required 100 to 240V AC

Product Certifications C-tick || GOST || CSA || GL || UL

Product Or Component Type discrete I/O extension module

Relative Humidity 95-95 % without condensation or dripping water

Response Time 50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50 to 255 ms FBD from state 0 to state 1)discrete input || 50 to 255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output

Reverse Polarity Protection with

Standards EN/IEC 61000-4-6 level 3 || EN/IEC 61000-4-2 level 3 || EN/IEC 61000-4-4 level 3 || EN/IEC 60068-2-27 Ea || EN/IEC 61000-4-5 || EN/IEC 61000-4-11 || EN/IEC 60068-2-6 Fc || EN/IEC 61000-4-12 || EN/IEC 61000-4-3

Supply Frequency 50/60 Hz

Supply Voltage Limits 85-264 V

Switching Capacity In Ma >= 10 mA 12 V relay output)

Tightening Torque 0.5 N.m

Voltage State 0 Guaranteed <= 40 V discrete input

Voltage State 1 Guaranteed >= 79 V discrete input

[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1 and EN/IEC 60664-1

[Us] Rated Supply Voltage 100 to 240 V AC
