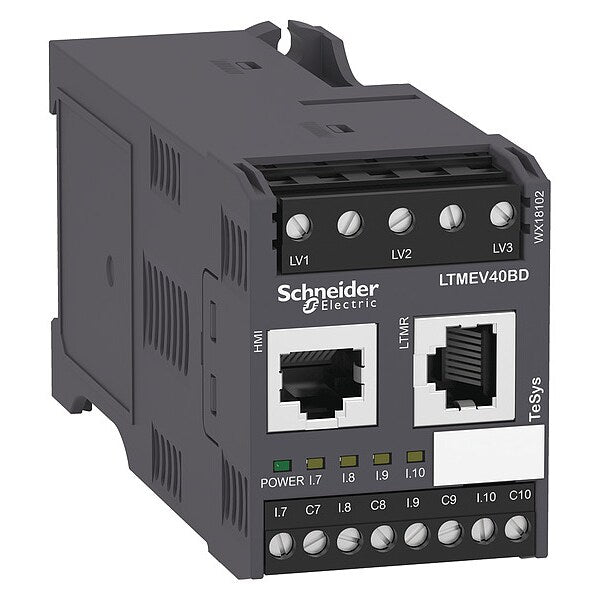

Expansion Module Dc

SKU
Brand Schneider Electric
Categories
Description Expansion Module Dc
graingerSKU: , mscSKU: , zoro_no: G0862639, mongo_id: 65bbe84622d7a989a98e8830

Web Price

$397.49 / each

Qty

Product Details

Accessory Type Expansion Module Dc

Ambient Air Temperature For Operation -20-60ÃÂ°C

Ambient Air Temperature For Storage -40-80ÃÂ°C

Compatibility Code LTME

Connection Pitch 5.08 mm

Connections - Terminals control circuit connector 1 0.25-2.5 mmÃÂ² AWG 24 to AWG 14)flexible with cable end || control circuit connector 1 0.2-2.5 mmÃÂ² AWG 24 to AWG 14)flexible without cable end || control circuit connector 1 0.25-2.5 mmÃÂ² AWG 24 to AWG 14)flexible without cable end || control circuit connector 1 0.2-2.5 mmÃÂ² AWG 24 to AWG 14)solid without cable end || control circuit connector 2 0.2-1 mmÃÂ² AWG 24 to AWG 14)flexible with cable end || control circuit connector 2 0.2-1.5 mmÃÂ² AWG 24 to AWG 14)flexible without cable end || control circuit connector 2 0.5-1.5 mmÃÂ² AWG 24 to AWG 14)flexible without cable end || control circuit connector 2 0.2-1 mmÃÂ² AWG 24 to AWG 14)solid without cable end

Contact Type and Composition Without

Country of Origin (subject to change) China

Current State 0 Guaranteed logic input < 5 V <= 15 mA 5 ms

Current State 1 Guaranteed logic input < 15 V 2 to 15 mA 15 ms

Depth 120.7 mm

Device Application equipment monitoring and control

Device Short Name LTME

Electromagnetic Compatibility electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 || fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 || conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 || control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 || control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5 || communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 || voltage inputs: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 || voltage inputs: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5

Fire Resistance 650ÃÂ°C EN/IEC 60695-2-12 || 960ÃÂ°C UL 94

Height 61 mm

Input Current 7 mA

Ip Degree Of Protection IP20

Logic Input Number 4

Maximum Operating Frequency 2 Hz

Maximum Operating Rate 1800 cyc/h

Measurement Accuracy 1 % voltage 100 to 830 V) || 3 % power factor || 5 % active and reactive power

Mechanical Robustness shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27 || vibrations mounted on symmetrical rail1 Gn, 5 to 300 Hz EN/IEC 60068-2-6 || vibrations plate mounted4 Gn, 5 to 300 Hz EN/IEC 60068-2-6

Metering Type voltage U21, U32, U13, V1, V2, V3 || imbalance voltage || frequency || calculated active and reactive energy (+/- W.h, +/- VAR.h) || reactive power Q, Q1, Q2, Q3 || power factor || active power P, P1, P2, P3

Operating Altitude <= 6561.68 ft (2000 m) without derating

Overvoltage Category III

Package Quantity 1

Pollution Degree 3

Product Certifications UL || NOM || ATEX || BV || CSA || EAC || RINA || LROS (Lloyds register of shipping) || DNV || ABS || GL || KERI || RMRoS || C-tick || CCC

Product Name TeSys T

Product Or Component Type extension module

Protective Treatment 12 x 24 hour cycles EN/IEC 60068-2-30 || 48 h EN/IEC 60070-2-11 || TH EN/IEC 60068

Range TeSys

Range Compatibility TeSys (TeSys T) LTMR motor controller

Rated Impulse Withstand Voltage 6 kV current or voltage measurement circuit EN/IEC 60947-4-1; 0.8 kV supply, inputs and outputs EN/IEC 60947-4-1

Rated Insulation Voltage 690 V EN/IEC 60947-1; 690 V CSA C22.2 No 14; 690 V UL 508

Standards IEC 60947-4-1 || UL 508 || EN 60947-4-1 || IACS E10 || CSA C22.2 No 14

Supply via the controller

Tightening Torque control circuit 0.5-0.6 N.m flat 3 mm

Width 45 mm

[Uimp] Rated Impulse Withstand Voltage 6 kV current or voltage measurement circuit EN/IEC 60947-4-1 || 0.8 kV supply, inputs and outputs EN/IEC 60947-4-1

[Ui] Rated Insulation Voltage 690 V EN/IEC 60947-1 || 690 V CSA C22.2 No 14 || 690 V UL 508
