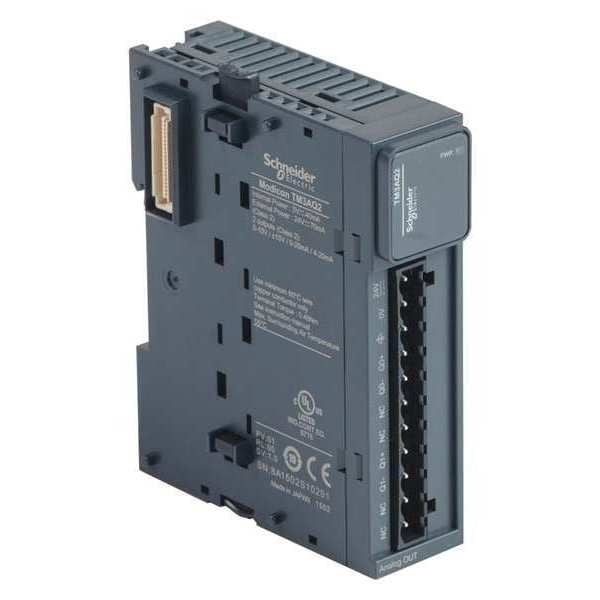

Ext Module, 0 inputs, 2 outputs, Term Block

SKU
Brand Schneider Electric
Categories
Description Extension Module, Number of Inputs 0, For Use With Modicon Mfr. No.M221 PLC, Number of Outputs 2, Includes Terminal Block, Power Required 24V DC, Features Plate or panel with fixing kit, Product Type Extension Module
graingerSKU: , mscSKU: , zoro_no: G0040455, mongo_id: 65bbe6f63aaddbd5a9066740

Web Price

$392.49 / each

Qty

Product Details

Absolute Accuracy Error +/- 0.1 % of full scale at 25ÃÂ°C || +/- 1 % of full scale

Ambient Air Temperature For Operation -10-55ÃÂ°C horizontal installation || -10-35ÃÂ°C vertical installation

Ambient Air Temperature For Storage -25-70ÃÂ°C

Analogue Output Number 2

Analogue Output Resolution 11 bits + sign || 12 bits

Analogue Output Type current 4 to 20 mA || current 0 to 20 mA || voltage 0 to 10 V || voltage - 10 to 10 V

Conversion Time 1 ms + 1 ms per channel + 1 controller cycle time

Country of Origin (subject to change) Japan

Cross Talk <= 1 LSB

Current Consumption 40 mA 5 V DC via bus connector full load || 35 mA 5 V DC via bus connector no load || 30 mA 24 V DC via external supply no load || 70 mA 24 V DC via external supply full load

Depth 70 mm

Electrical Connection 11 x 2.5 mmÃÂ² removable screw terminal block pitch 5.08 mm for outputs and supply

Electromagnetic Emission radiated emissions 40 dBÃÂÃÂ¼V/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBÃÂÃÂ¼V/m QP class A 10 m)230-1000 MHz EN/IEC 55011

Features Plate or panel with fixing kit

For Use With Modicon Mfr. No.M221 PLC

Height 90 mm

Immunity To Microbreaks 10 ms

Includes Terminal Block

Insulation between output and supply 1500 V AC || between output and internal logic 500 V AC

Ip Degree Of Protection IP20

Load Impedance Ohmic 1 kOhm voltage || 300 Ohm current

Load Type resistive

Local Signalling for PWR 1 LED (green)

Lsb Value 2.44 mV 0 to 10 V voltage || 4.88 mV - 10 to 10 V voltage || 4.88ÃÂµA 0 to 20 mA current || 3.91ÃÂµA 4 to 20 mA current

Marking CE

Mounting Support top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Non-Linearity +/- 0.01 %FS

Number of Inputs 0

Number of Outputs 2

Operating Altitude 0 to 6561.68 ft (0 to 2000 m)

Output Ripple 20 mV

Package Quantity 1

Pollution Degree 2

Power Required 24V DC

Product Certifications CE || UKCA || RCM || EAC || cULus

Product Or Component Type analog output module

Range Compatibility Modicon M221 || Modicon M241 || Modicon M251 || Modicon M262

Relative Humidity 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Repeat Accuracy +/- 0.4 %FS

Resistance To Conducted Disturbances 10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Resistance To Electromagnetic Fields 10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3

Resistance To Electrostatic Discharge 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2

Resistance To Fast Transients 1 kV EN/IEC 61000-4-4 I/O)

Resistance To Magnetic Fields 30 A/m EN/IEC 61000-4-8

Shock Resistance 15 gn 11 ms

Stabilisation Time 1 ms

Standards EN/IEC 61010-2-201 || EN/IEC 61131-2

Storage Altitude 0-3000 m

Supply Voltage Limits 20.4-28.8 V

Surge Withstand 1 kV power supply common mode EN/IEC 61000-4-5 || 0.5 kV power supply differential mode EN/IEC 61000-4-5 || 1 kV output common mode EN/IEC 61000-4-5

Temperature Drift +/- 0.006 %FS/ÃÂ°C

Type Of Cable twisted shielded pairs cable <30 m output

Vibration Resistance 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail

Width 23.6 mm

[Us] Rated Supply Voltage 24 V DC
