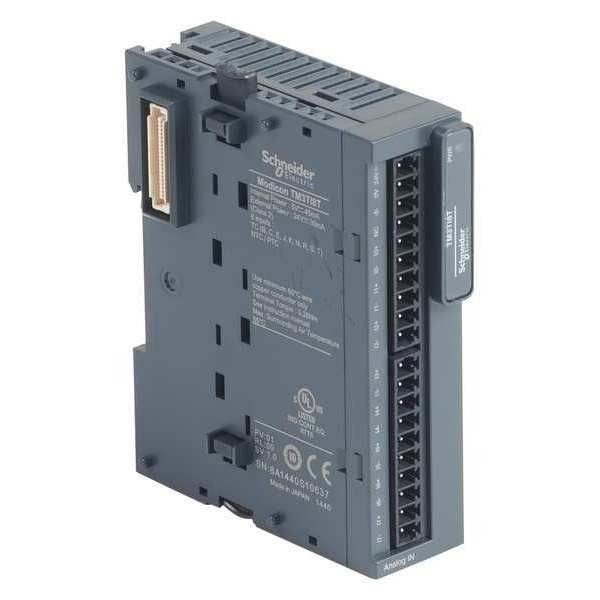

Ext Module, 8 inputs, 0 outputs, 24VDC

SKU
Brand Schneider Electric
Categories
Description Extension Module, Number of Inputs 8, For Use With Modicon Mfr. No.M221 PLC, Number of Outputs 0, Includes Terminal Block, Power Required 24V DC, Features Plate or Panel with Fixing Kit, Product Type Extension Module
graingerSKU: 35ZW08, mscSKU: , zoro_no: G0040227, mongo_id: 65bbe7fc9a749db82276b1db

Web Price

$471.24 / each

Qty

Product Details

Absolute Accuracy Error +/- 0.2 % of full scale at 25ÃÂ°C for thermocouple C 0 to 2315ÃÂ°C || +/- 6ÃÂ°C at 25ÃÂ°C for thermocouple R, S 0 to 200ÃÂ°C || +/- 0.2 % of full scale at 25ÃÂ°C for thermocouple R, S 200 to 1760ÃÂ°C || +/- 0.2 % of full scale at 25ÃÂ°C for thermocouple B 300 to 1820ÃÂ°C || +/- 0.4 % of full scale at 25ÃÂ°C for thermocouple K - 200 to 0ÃÂ°C || +/- 0.2 % of full scale at 25ÃÂ°C for thermocouple K 0 to 1300ÃÂ°C || +/- 0.4 % of full scale at 25ÃÂ°C for thermocouple J - 200 to 0ÃÂ°C || +/- 0.2 % of full scale at 25ÃÂ°C for thermocouple J 0 to 1000ÃÂ°C || +/- 0.4 % of full scale at 25ÃÂ°C for thermocouple E - 200 to 0ÃÂ°C || +/- 0.2 % of full scale at 25ÃÂ°C for thermocouple E 0 to 800ÃÂ°C || +/- 0.4 % of full scale at 25ÃÂ°C for thermocouple T - 200 to 0ÃÂ°C || +/- 0.2 % of full scale at 25ÃÂ°C for thermocouple T 0 to 400ÃÂ°C || +/- 0.4 % of full scale at 25ÃÂ°C for thermocouple N - 200 to 0ÃÂ°C || +/- 0.2 % of full scale at 25ÃÂ°C for thermocouple N 0 to 1300ÃÂ°C

Ambient Air Temperature For Operation -10-55ÃÂ°C horizontal installation || -10-35ÃÂ°C vertical installation

Ambient Air Temperature For Storage -25-70ÃÂ°C

Analogue Input Number 8

Analogue Input Resolution 16 bits || 15 bits + sign

Analogue Input Type thermocouple - 200 to 1000ÃÂ°C thermocouple J || thermocouple - 200 to 1300ÃÂ°C thermocouple K || thermocouple 0 to 1760ÃÂ°C thermocouple R || thermocouple 0 to 1760ÃÂ°C thermocouple S || thermocouple 0 to 1820ÃÂ°C thermocouple B || thermocouple - 200 to 400ÃÂ°C thermocouple T || thermocouple - 200 to 1300ÃÂ°C thermocouple N || thermocouple - 200 to 800ÃÂ°C thermocouple E || thermocouple 0 to 2315ÃÂ°C thermocouple C || NTC 10k thermistor -90 to 150ÃÂ°C || PTC thermistor 100 to 10000 Ohm || thermocouple - 200 to 1000ÃÂ°C

Conversion Time 100 ms + 100 ms per channel + 1 controller cycle time

Country of Origin (subject to change) Japan

Cross Talk <= 1 LSB

Current Consumption 30 mA 24 V DC via external supply || 45 mA 5 V DC via bus connector || 40 mA 5 V DC via bus connector

Depth 70 mm

Electrical Connection 10 x 1.5 mmÃÂ² removable screw terminal block pitch 3.81 mm for inputs and supply || 10 x 1.5 mmÃÂ² removable screw terminal block pitch 3.81 mm for inputs

Electromagnetic Emission radiated emissions 40 dBÃÂÃÂ¼V/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBÃÂÃÂ¼V/m QP class A 10 m)230-1000 MHz EN/IEC 55011

Features Plate or Panel with Fixing Kit

For Use With Modicon Mfr. No.M221 PLC

Height 90 mm

Immunity To Microbreaks 10 ms

Includes Terminal Block

Input Impedance >= 1 MOhm thermocouple || >= 1 MOhm temperature probe || >= 1 MOhm thermistor

Insulation between input and supply 1500 V AC || between input and internal logic 500 V AC

Ip Degree Of Protection IP20

Local Signalling for PWR 1 LED (green)

Lsb Value 0.1ÃÂ°C thermocouple || 0.1ÃÂ°C NTC || 1 Ohm PTC/NTC

Marking CE

Mounting Support top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Non-Linearity +/- 0.2 %FS

Number of Inputs 8

Number of Outputs 0

Operating Altitude 0 to 6561.68 ft (0 to 2000 m)

Package Quantity 1

Pollution Degree 2

Power Required 24V DC

Product Certifications CE || UKCA || RCM || EAC || cULus

Product Or Component Type analog input module

Range Compatibility Modicon M221 || Modicon M241 || Modicon M251 || Modicon M262

Relative Humidity 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Repeat Accuracy +/-0.5 %FS

Resistance To Conducted Disturbances 10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Resistance To Electromagnetic Fields 10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3

Resistance To Electrostatic Discharge 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2

Resistance To Fast Transients 1 kV EN/IEC 61000-4-4 I/O)

Resistance To Magnetic Fields 30 A/m EN/IEC 61000-4-8

Sampling Duration 100 ms

Shock Resistance 15 gn 11 ms

Standards EN/IEC 61010-2-201 || EN/IEC 61131-2

Storage Altitude 0-3000 m

Supply Voltage Limits 20.4-28.8 V

Surge Withstand 1 kV power supply common mode EN/IEC 61000-4-5 || 0.5 kV power supply differential mode EN/IEC 61000-4-5 || 1 kV input common mode EN/IEC 61000-4-5

Temperature Drift +/- 0.01 %FS/ÃÂ°C

Type Of Cable twisted shielded pairs cable <30 m input

Vibration Resistance 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail

Width 23.6 mm

[Us] Rated Supply Voltage 24 V DC
