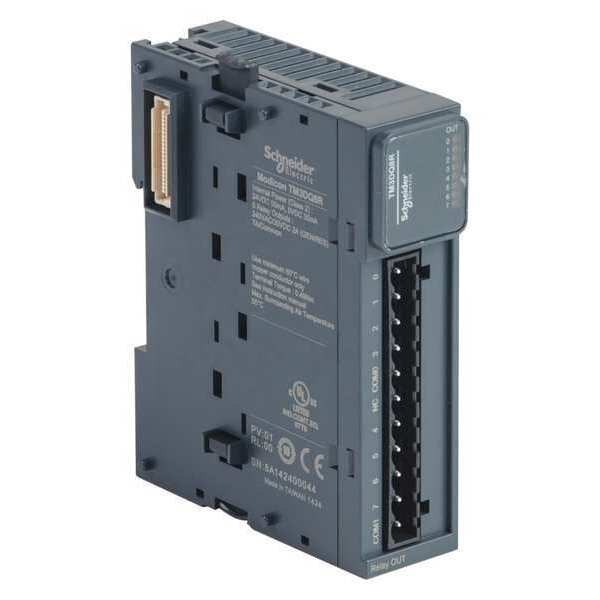

Ext Module, TM3, 0 inputs, 8 outputs

SKU
Brand Schneider Electric
Categories
Description Extension Module, Number of Inputs 0, For Use With Modicon Mfr. No.M221 PLC, Number of Outputs 8, Includes Terminal Block, Power Required 24V DC, Features Plate or Panel with Fixing Kit, Product Type Extension Module
graingerSKU: 35ZW03, mscSKU: , zoro_no: G0040279, mongo_id: 65bbe73d3aaddbd5a908318c

Web Price

$224.99 / each

Qty

Product Details

Ambient Air Temperature For Operation -10-35ÃÂ°C vertical installation || -10-55ÃÂ°C horizontal installation

Ambient Air Temperature For Storage -25-70ÃÂ°C

Country of Origin (subject to change) Taiwan, Province of China

Current Consumption 5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state off) || 40 mA 24 V DC via bus connector at state on) || 30 mA 5 V DC via bus connector at state on)

Depth 84.6 mm

Discrete I/O Number 8

Discrete Output Current 2000 mA relay output

Discrete Output Logic positive or negative

Discrete Output Number 8

Discrete Output Type relay normally open

Discrete Output Voltage 24 V DC relay output || 240 V AC

Electrical Connection 11 x 2.5 mmÃÂ² removable screw terminal block pitch 5.08 mm for outputs

Electromagnetic Emission radiated emissions 40 dBÃÂÃÂ¼V/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBÃÂÃÂ¼V/m QP class A 10 m)230-1000 MHz EN/IEC 55011

Features Plate or Panel with Fixing Kit

For Use With Modicon Mfr. No.M221 PLC

Height 90 mm

Includes Terminal Block

Insulation between output and internal logic 2300 V AC || between outputs 750 V AC || between output groups 1500 V AC

Ip Degree Of Protection IP20 with protective cover in place

Local Signalling for output status 1 LED per channel (green)

Marking CE

Maximum Cable Distance Between Devices unshielded cable <30 m relay output

Mechanical Durability 20000000 cycles

Minimum Load 10 mA 5 V DC relay output

Mounting Support top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Number of Inputs 0

Number of Outputs 8

Operating Altitude 0 to 6561.68 ft (0 to 2000 m)

Package Quantity 1

Pollution Degree 2

Power Required 24V DC

Product Certifications CE || cULus || UKCA || RCM || EAC

Product Or Component Type discrete output module

Range Compatibility Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262

Relative Humidity 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Resistance To Conducted Disturbances 10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Resistance To Electromagnetic Fields 10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3

Resistance To Electrostatic Discharge 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2

Resistance To Fast Transients 2 kV relay outputEN/IEC 61000-4-4

Resistance To Magnetic Fields 30 A/m 50/60 Hz EN/IEC 61000-4-8

Response Time 10 ms (turn-on) || 5 ms (turn-off)

Shock Resistance 15 gn 11 ms

Standards EN/IEC 61010-2-201 || EN/IEC 61131-2

Storage Altitude 0-3000 m

Surge Withstand 1 kV I/O common mode EN/IEC 61000-4-5 DC

Vibration Resistance 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel

Width 27.4 mm
