Home / Ext Module, TM3, 2 inputs, 1 outputs

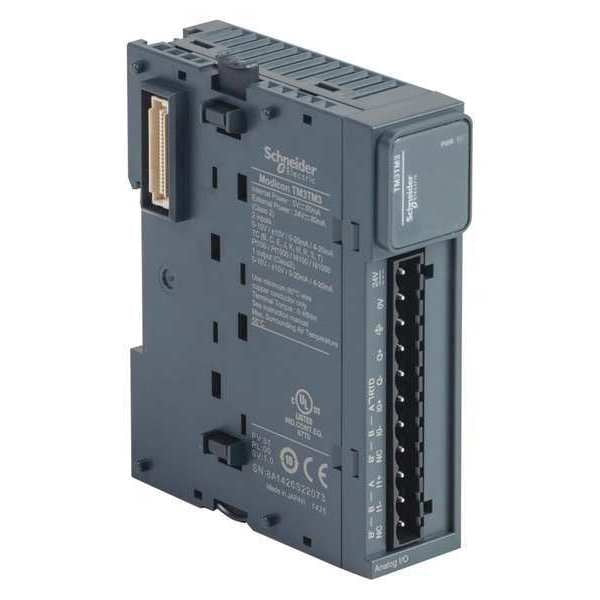

Ext Module, TM3, 2 inputs, 1 outputs

Ext Module, TM3, 2 inputs, 1 outputs

  • Schneider Electric
  • Extension Module, Number of Inputs 2, For Use With Modicon Mfr. No.M221 PLC, Number of Outputs 1, Includes Terminal Block, Power Required 24V DC, Features Plate or Panel with Fixing Kit, Product Type Extension Module

    graingerSKU: 35ZW09, mscSKU: , zoro_no: G0040218, mongo_id: 65bbf6492fa6309335be6bab

Web Price
$471.24 / each
Qty

Product Details

+/- 6°C at 25°C for thermocouple R, S 0 to 200°C || +/- 0.4 % of full scale at 25°C for thermocouple K - 200 to 0°C || +/- 0.4 % of full scale at 25°C for thermocouple J - 200 to 0°C || +/- 0.4 % of full scale at 25°C for thermocouple E - 200 to 0°C || +/- 0.4 % of full scale at 25°C for thermocouple T - 200 to 0°C || +/- 0.4 % of full scale at 25°C for thermocouple N - 200 to 0°C || +/- 0.1 % of full scale at 25°C for analogue input voltage/current || +/- 0.1 % of full scale at 25°C for thermocouple C 0 to 2315°C || +/- 0.1 % of full scale at 25°C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe || +/- 0.1 % of full scale at 25°C for thermocouple R, S 200 to 1760°C || +/- 0.1 % of full scale at 25°C for thermocouple B 300 to 1820°C || +/- 0.1 % of full scale at 25°C for thermocouple K 0 to 1300°C || +/- 0.1 % of full scale at 25°C for thermocouple J 0 to 1000°C || +/- 0.1 % of full scale at 25°C for thermocouple E 0 to 800°C || +/- 0.1 % of full scale at 25°C for thermocouple T 0 to 400°C || +/- 0.1 % of full scale at 25°C for thermocouple N 0 to 1300°C || +/- 0.1 % of full scale at 25°C for analogue output voltage/current
-10-55°C horizontal installation || -10-35°C vertical installation
-25-70°C
2
16 bits || 15 bits + sign
current 4 to 20 mA || current 0 to 20 mA || voltage 0 to 10 V || voltage - 10 to 10 V || thermocouple - 200 to 1000°C thermocouple J || thermocouple - 200 to 1300°C thermocouple K || thermocouple 0 to 1760°C thermocouple R || thermocouple 0 to 1760°C thermocouple S || thermocouple 0 to 1820°C thermocouple B || thermocouple - 200 to 400°C thermocouple T || thermocouple - 200 to 1300°C thermocouple N || thermocouple - 200 to 800°C thermocouple E || thermocouple 0 to 2315°C thermocouple C || Ni 100/Ni 1000 temperature probe - 60 to 180°C || Pt 100 temperature probe - 200 to 850°C || Pt 1000 temperature probe - 200 to 600°C
1
12 bits
current 4 to 20 mA || current 0 to 20 mA || voltage 0 to 10 V || voltage - 10 to 10 V
100 ms + 100 ms per channel + 1 controller cycle time thermocouple || 100 ms + 100 ms per channel + 1 controller cycle time temperature probe || 10 ms + 10 ms per channel + 1 controller cycle time voltage/current
Japan
<= 1 LSB
55 mA 24 V DC via external supply no load || 55 mA 5 V DC via bus connector no load || 60 mA 5 V DC via bus connector full load || 80 mA 24 V DC via external supply full load
70 mm
11 x 2.5 mm² removable screw terminal block pitch 5.08 mm for inputs, outputs and supply
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
Plate or Panel with Fixing Kit
Modicon Mfr. No.M221 PLC
90 mm
10 ms
Terminal Block
<= 50 Ohm current || >= 1 MOhm voltage || >= 1 MOhm thermocouple || >= 1 MOhm temperature probe
between input and supply 1500 V AC || between input and internal logic 500 V AC || between output and supply 1500 V AC || between output and internal logic 500 V AC
IP20
1 kOhm voltage || 300 Ohm current
resistive
for PWR 1 LED (green)
0.15 mV 0 to 10 V voltage || 0.30 mV - 10 to 10 V voltage || 0.30µA 0 to 20 mA current || 0.244µA 4 to 20 mA current || 0.1°C temperature probe || 0.1°C thermocouple || 2.44 mV 0 to 10 V voltage || 4.88 mV - 10 to 10 V voltage || 4.88µA 0 to 20 mA current || 3.91µA 4 to 20 mA current
CE
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
+/- 0.01 %FS analog output || +/- 0.1 %FS analog input
2
1
0 to 6561.68 ft (0 to 2000 m)
20 mV
1
13 V voltage || 40 mA current
2
24V DC
CE || UKCA || RCM || EAC || cULus
input/output analog module
Modicon M221 || Modicon M241 || Modicon M251 || Modicon M262
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
+/-0.5 %FS input || +/- 0.4 %FS output
10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3
8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
1 kV EN/IEC 61000-4-4 I/O)
30 A/m EN/IEC 61000-4-8
10 ms voltage/current || 100 ms voltage/current || 100 ms thermocouple || 100 ms temperature probe
15 gn 11 ms
1 ms
EN/IEC 61010-2-201 || EN/IEC 61131-2
0-3000 m
20.4-28.8 V
1 kV power supply common mode EN/IEC 61000-4-5 || 0.5 kV power supply differential mode EN/IEC 61000-4-5 || 1 kV I/O common mode EN/IEC 61000-4-5 || 0.5 kV I/O differential mode EN/IEC 61000-4-5
+/- 0.006 %FS/°C
twisted shielded pairs cable <30 m input/output
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail
23.6 mm
24 V DC

Viewed together
