Home / Ext Module, TM3, 4 inputs, Terminal Block

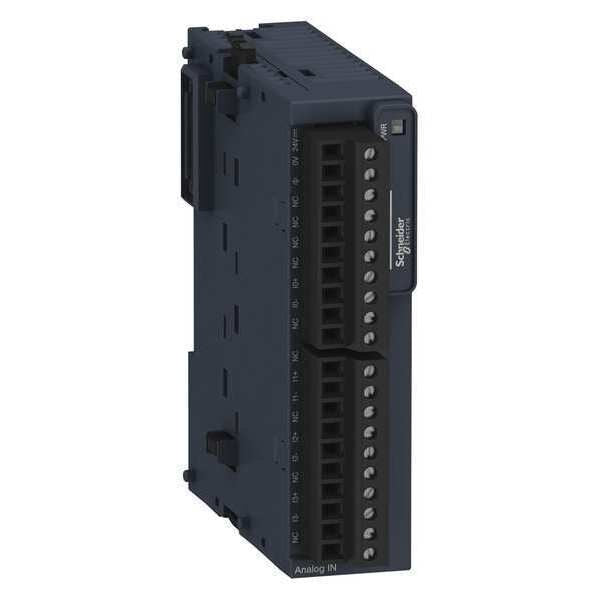

Ext Module, TM3, 4 inputs, Terminal Block

SKU
Brand Schneider Electric
Categories
Description Extension Module, Number of Inputs 4, For Use With Modicon Mfr. No.M221 PLC, Number of Outputs 0, Includes Terminal Block, Power Required 24V DC, Features Plate or Panel with Fixing Kit, Product Type Extension Module
graingerSKU: 35ZV80, mscSKU: , zoro_no: G0040498, mongo_id: 65bbe75b9a749db822731da4

Web Price

$376.24 / each

Qty

Product Details

Absolute Accuracy Error +/- 0.1 % of full scale at 25ÃÂ°C || +/- 1 % of full scale

Ambient Air Temperature For Operation -10-55ÃÂ°C horizontal installation || -10-35ÃÂ°C vertical installation

Ambient Air Temperature For Storage -25-70ÃÂ°C

Analogue Input Number 4

Analogue Input Resolution 12 bits || 11 bits + sign

Analogue Input Type current 4 to 20 mA || current 0 to 20 mA || voltage 0 to 10 V || voltage - 10 to 10 V

Conversion Time 1 ms + 1 ms per channel + 1 controller cycle time

Country of Origin (subject to change) Japan

Cross Talk <= 1 LSB

Current Consumption 35 mA 5 V DC via bus connector no load || 45 mA 5 V DC via bus connector full load || 30 mA 24 V DC via external supply

Depth 70 mm

Electrical Connection 10 x 1.5 mmÃÂ² removable screw terminal block pitch 3.81 mm for inputs and supply || 10 x 1.5 mmÃÂ² removable screw terminal block pitch 3.81 mm for inputs

Electromagnetic Emission radiated emissions 40 dBÃÂÃÂ¼V/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBÃÂÃÂ¼V/m QP class A 10 m)230-1000 MHz EN/IEC 55011

Features Plate or Panel with Fixing Kit

For Use With Modicon Mfr. No.M221 PLC

Height 90 mm

Immunity To Microbreaks 10 ms

Includes Terminal Block

Input Impedance <= 50 Ohm current || >= 1 MOhm voltage

Insulation between input and supply 1500 V AC || between input and internal logic 500 V AC

Ip Degree Of Protection IP20

Local Signalling for PWR 1 LED (green)

Lsb Value 2.44 mV 0 to 10 V voltage || 4.88 mV - 10 to 10 V voltage || 4.88ÃÂµA 0 to 20 mA current || 3.91ÃÂµA 4 to 20 mA current

Marking CE

Mounting Support top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Non-Linearity +/- 0.2 %FS

Number of Inputs 4

Number of Outputs 0

Operating Altitude 0 to 6561.68 ft (0 to 2000 m)

Package Quantity 1

Permissible Continuous Overload 13 V voltage || 40 mA current

Pollution Degree 2

Power Required 24V DC

Product Certifications CE || UKCA || RCM || EAC || cULus

Product Or Component Type analog input module

Range Compatibility Modicon M221 || Modicon M241 || Modicon M251 || Modicon M262

Relative Humidity 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Repeat Accuracy +/-0.5 %FS

Resistance To Conducted Disturbances 10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Resistance To Electromagnetic Fields 10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3

Resistance To Electrostatic Discharge 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2

Resistance To Fast Transients 1 kV EN/IEC 61000-4-4 I/O)

Resistance To Magnetic Fields 30 A/m EN/IEC 61000-4-8

Sampling Duration 1 ms

Shock Resistance 15 gn 11 ms

Standards EN/IEC 61131-2 || EN/IEC 61010-2-201

Storage Altitude 0-3000 m

Supply Voltage Limits 20.4-28.8 V

Surge Withstand 1 kV power supply common mode EN/IEC 61000-4-5 || 0.5 kV power supply differential mode EN/IEC 61000-4-5 || 1 kV input common mode EN/IEC 61000-4-5

Temperature Drift +/- 0.006 %FS/ÃÂ°C

Type Of Cable twisted shielded pairs cable <30 m input

Vibration Resistance 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail

Width 23.6 mm

[Us] Rated Supply Voltage 24 V DC
