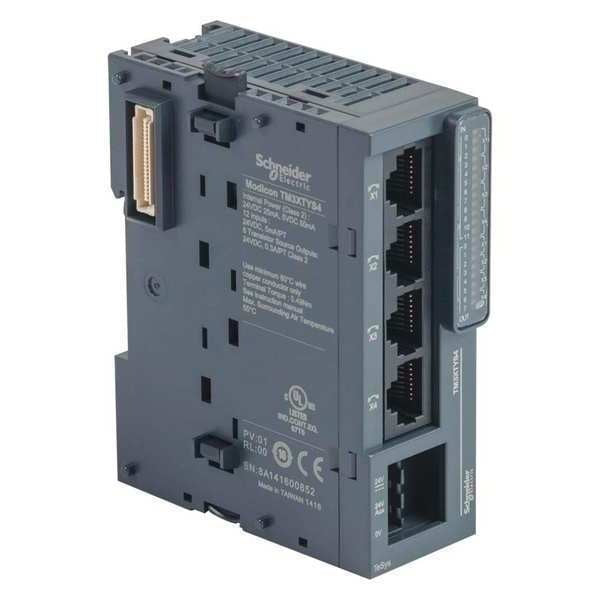

Extension Module, 12 inputs, 8 outputs

SKU
Brand Schneider Electric
Categories
Description Extension Module, Number of Inputs 12, For Use With Modicon Mfr. No.M221 PLC, Number of Outputs 8, Power Required 24V DC, Features Plate or Panel with Fixing Kit, Product Type Extension Module
graingerSKU: 35ZW10, mscSKU: , zoro_no: G0040209, mongo_id: 65bbe5c13aaddbd5a9fe54c3

Web Price

$259.99 / each

Qty

Product Details

Ambient Air Temperature For Operation -10-35ÃÂ°C vertical installation || -10-55ÃÂ°C horizontal installation

Ambient Air Temperature For Storage -25-70ÃÂ°C

Country of Origin (subject to change) Taiwan, Province of China

Current Consumption 5 mA 5 V DC via bus connector at state on || 35 mA 5 V DC via bus connector at state off || 0 mA 24 V DC via bus connector at state on || 10 mA 24 V DC via bus connector at state off || 1200 mA 24 V DC external power supply at state on

Depth 85 mm

Electrical Connection 3 x 2.5 mmÃÂ² removable screw terminal block pitch 5.08 mm for connecting the 24 V DC power supply || 4 RJ45 connectors for connecting the motor starters

Electromagnetic Emission radiated emissions 40 dBÃÂÃÂ¼V/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBÃÂÃÂ¼V/m QP class A 10 m)230-1000 MHz EN/IEC 55011

Features Plate or Panel with Fixing Kit

For Use With Modicon Mfr. No.M221 PLC

Height 90 mm

Input Current Limits 5-5 mA per input

Input Voltage Limits 19.2 to 28.8 V per input

Insulation between the RJ45 connectors and internal logic 500 V AC || non-insulated between RJ45 connectors

Ip Degree Of Protection IP20 with protective cover in place

Local Signalling 3 LEDs green per channel input status || 2 LEDs green per channel output status

Marking CE

Maximum Load Current 800 mA per channel starting mode 100 ms || 300 mA per channel normal mode

Mounting Support top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Number Of Input Channels 12

Number of Inputs 12

Number Of Output Channels 8

Number of Outputs 8

Operating Altitude 0 to 6561.68 ft (0 to 2000 m)

Output Protection Type against overload current limiter

Output Voltage 24 V DC transistor output

Package Quantity 1

Pollution Degree 2

Power Required 24V DC

Product Certifications CE || cULus || UKCA || RCM || EAC

Product Or Component Type parallel interface module

Product Specific Application TeSys U

Range Compatibility Modicon M221 || Modicon M251 || Modicon M241 || Modicon M262

Rated Supply Voltage 24 V DC external supply - 15 to 20%)

Relative Humidity 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Reset automatic reset

Resistance To Conducted Disturbances 10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Resistance To Electromagnetic Fields 10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3

Resistance To Electrostatic Discharge 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2

Resistance To Fast Transients 1 kV inputEN/IEC 61000-4-4 || 1 kV outputEN/IEC 61000-4-4

Resistance To Magnetic Fields 30 A/m 50/60 Hz EN/IEC 61000-4-8

Response Time < 10 ms turn-on input || < 10 ms turn-off input

Shock Resistance 15 gn 11 ms

Storage Altitude 0-3000 m

Surge Withstand 1 kV input common mode EN/IEC 61000-4-5 || 1 kV output common mode EN/IEC 61000-4-5

Vibration Resistance 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel

Width 30 mm

[Us] Rated Supply Voltage 24 V DC external supply - 15 to 20 %)
