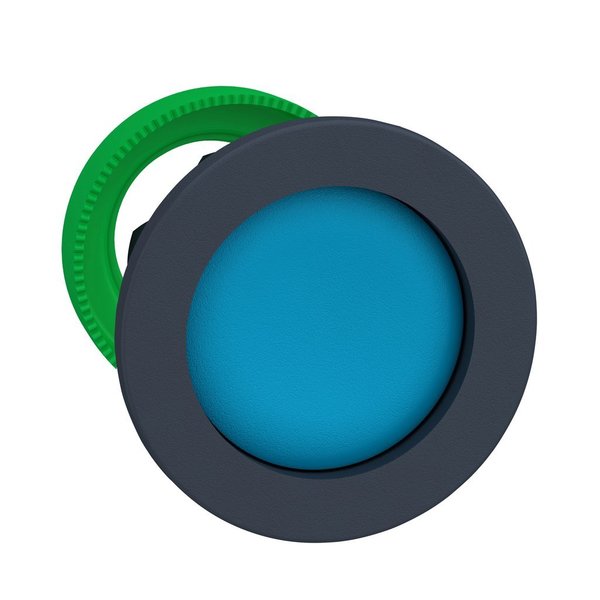

Flush mounted blue pushbutton head reces

SKU
Brand Schneider Electric
Categories
Description Flush mounted blue pushbutton head reces

Web Price

$31.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material dark grey plastic

Cad Overall Depth 30 mm

Cad Overall Height 37 mm

Cad Overall Width 37 mm

Country of Origin (subject to change) France

Device Short Name ZB5

Electrical Composition Code C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting

Head Type built-in-flush

Ik Degree Of Protection IK03 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

Mechanical Durability 10000000 cycles

Mounting Diameter 30.5 mm

Operator Additional Information high guard

Operator Profile blue recessed, unmarked

Overvoltage Category class II IEC 60536

Package Quantity 1

Product Certifications GL || UL Listed || DNV || LROS (Lloyds register of shipping) || CSA || BV

Product Compatibility ZBYF to || ZBZF32 || ZBZF33 || ZB5AZ

Product Or Component Type head for non-illuminated push-button

Protective Treatment TH

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Standards EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Type Of Operator spring return

Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
