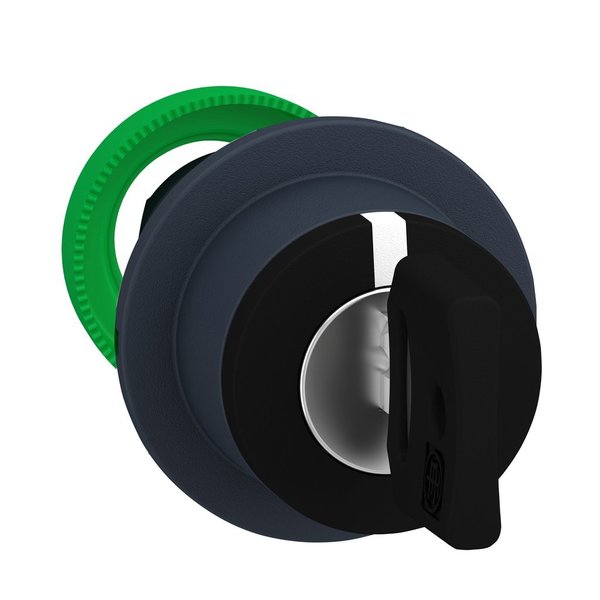

Flush mounted selector switch head key 4

SKU
Brand Schneider Electric
Categories
Description Flush mounted selector switch head key 4

Web Price

$94.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material dark grey plastic

Cad Overall Depth 72 mm

Cad Overall Height 37 mm

Cad Overall Width 37 mm

Country of Origin (subject to change) France

Device Short Name ZB5

Electrical Composition Code C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3 single front mounting

Head Type built-in-flush

Ik Degree Of Protection IK03 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K

Key Withdrawal Position left and right

Mechanical Durability 1000000 cycles

Mounting Diameter 30.5 mm

Nema Degree Of Protection NEMA 13 || NEMA 4X

Operator Position Information 3 positions +/- 45ÃÂ°

Operator Profile black key switch

Overvoltage Category class II IEC 60536

Package Quantity 1

Product Certifications BV || CSA || GL || LROS (Lloyds register of shipping) || UL Listed || DNV
