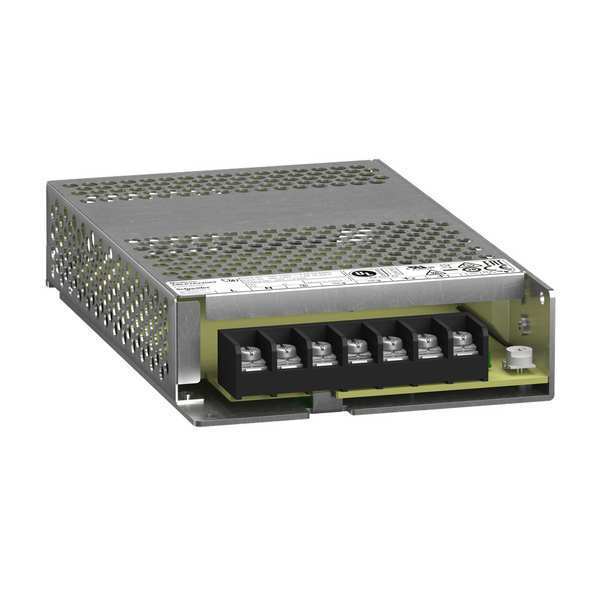

Force, 100 to 240 V AC, 6.25 A

SKU
Brand Schneider Electric
Categories
Description Force, Input Voltage 100 to 120 V AC, 200 to 240 V AC, Output Voltage 24V DC, Power Rating 150W, Output Amps 6.25, Mounting Panel, Switching, Case Material Aluminum Case, Height 30 mm, Width 97 mm, Depth 159 mm, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 35 A at 115 V AC, 70 A at 230 V AC, IP Rating 10, Output Noise Less Than 170 mV, Hold Up Time Greater Than 20 msec at 115 V AC, Greater Than 40 msec at 230 V AC, Status Indicator Green LED, NEMA Rating Not Applicable
graingerSKU: 787DL1, mscSKU: , zoro_no: G803457404, mongo_id: 65bbe7439a749db82272b369

Web Price

$177.49 / each

Qty

Product Details

Amps 1.9 to 3.2 A

Case Material Aluminum Case

Connection Screw

Country of Origin (subject to change) China

Depth 159 mm

Features Efficiency 88% at 230 V AC, Green Premium Product, Integrated Fuse, Mercury Free, Parallel and Serial Output Coupling, Relative Humidity 95% Without Condensation

Height 30 mm

Hold Up Time Greater Than 20 msec at 115 V AC, Greater Than 40 msec at 230 V AC

Hz_ 50 to 60 Hz

Input Voltage 100 to 120 V AC, 200 to 240 V AC

IP Rating 10

Line Regulation Less Than 1%

Load Regulation Less Than 0.5%

Mounting Panel

NEMA Rating Not Applicable

Operating Temp. Range -30 Degrees to 70 Degrees C

Output Amps 6.25

Output Noise Less Than 170 mV

Output Voltage 24V DC

Package Quantity 1

Peak Amps 35 A at 115 V AC, 70 A at 230 V AC

Phase - Electrical Single

Power Rating 150W

Protection Overload and Short-Circuits Automatic Reset, Over Temperature Manual Reset , Overvoltage Manual Reset

Ripple Volts Regulation Less Than 170mV

Standards CB Scheme, CE, CSA C22.2 No 61010-1, CSA C22.2 No 61010-2-201, CSA C22.2 No 62368-1, CULus, EAC, EN 55016-2-1, EN 55016-2-3, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61010-2-201, EN 62368-1, EN/IEC 61000-4-11, EN/IEC 61010-1, EN/IEC 61204-3, EN/IEC 62368-1, IEC 60068-2-6, IEC 60335-1, IEC 60721-3-3, KC, RCM, REACH Complaint, RoHS Complaint, UL 61010-1, UL 61010-2-201, UL 62368-1

Status Indicator Green LED

Style Switching

Temp. Range -25 to 50ÃÂ°C (without Derating), 50 to 70ÃÂ°C (with Current Derating)

Width 97 mm
