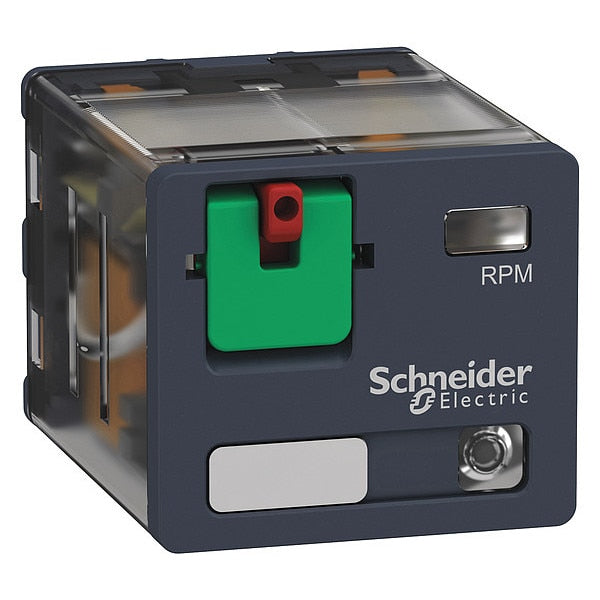

General Purpose Relay, 120V AC Coil Volts, Square, 11 Pin, 3PDT

SKU
Brand Schneider Electric
Categories
Description General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 3PDT, Current Rating 15 A, Electrical Connection Quick-Connect, Flat Pin Width 0.18 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 15 A @ 250V, Contact Rating (DC) 15 A @ 28V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.54 in, Body Height 1.06 in
graingerSKU: 1XZK1, mscSKU: 68618420, zoro_no: G0487374, mongo_id: 65bbe8339a749db82277c2db

Web Price

$18.99 / each

Qty

Product Details

AC Contact Rating - Relay 15A @ 277V

Ambient Air Temperature For Operation -40 to 131ÃÂ°F (-40 to 55ÃÂ°C)

Ambient Air Temperature For Storage -40 to 185ÃÂ°F (-40 to 85ÃÂ°C)

Average Coil Consumption in VA 1.7 60 Hz

Average Coil Resistance 2880 Ohm at 68ÃÂ°F (20ÃÂ°C) +/- 15%

Base Shape Square

Base Type Square

Base Type - Plug In Relay Square

Body Depth 1.54 in

Body Depth - Relay 1.06 in

Body Height 1.06 in

Body Height - Relay 1.82 in

Body Width 1.22 in

Body Width - Relay 1.22 in

Coil Resistance 2,880 ohm

Coil Voltage 120V AC

Coil Voltage Type AC

Coil Volts 120V AC

Contact Form 3PDT

Contact Form - Relay 3PDT

Contact Material Silver Alloy

Contact Rating 15A @ 277VAC/28VDC

Contact Rating (AC) 15 A @ 250V

Contact Rating (DC) 15 A @ 28V

Contact Type and Composition 3 C/O

Contacts Material AgNi

Control Circuit Voltage 120 V AC 50/60 Hz

Control Type Lockable test button

Conventional Enclosed Thermal Current 15 A -40 to 131ÃÂ°F (-40 to 55ÃÂ°C)

Country of Origin (subject to change) China

Current Rating 15 A

DC Contact Rating - Relay 15A @ 28V

Degree Of Protection IP40 conforming to IEC 60529

Device Presentation Complete product

Dielectric Strength 1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact with Reinforced, 2,000V AC Between Poles with Basic

Drop-Out Voltage Threshold Greater than or Equal to 0.15 Uc AC

Electrical Connection Quick-Connect

Electrical Connection Type Tab

Electrical Durability 100000 cycles resistive

Electrical Operating Durability 100,000

Environmental Protection Enclosed

Features Plug In Protection Module to Protect Against Electrical Spikes

Flat Pin Width 0.18 in

For Use With Hard-Wired Logic Automated Systems

Frequency 50/60 Hz

Green Environmental Attribute RoHS 2011/65/EU Compliant

Horsepower @ 120V AC Not Rated

Horsepower @ 240V AC Not Rated

HP @ 120V Not Rated

HP @ 240V Not Rated

Input Voltage 132V AC

IP Rating IP40

Item - Relay General Purpose Relay

Maximum Operating Temperature 131 Degrees F

Maximum Switching Capacity 3750 VA; 420 W

Maximum Switching Voltage 250V

Mechanical Durability 10000000 cycles

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -40 Degrees F

Minimum Switching Capacity 170 mW 10 mA, 17 V

Minimum Switching Current 10 mA

Motor Rated Not Rated - Not Rated

Mounting - Relay Plug In

Mounting Style Plug-In

Number of Pins 11

Number of Pins - Relay 11

Operating Position Any position

Operating Rate Less than or Equal to 1200 cycles/hour under load; Less than or Equal to 18000 cycles/hour no-load

Operating Temp. Range -40-55ÃÂ°C

Operating Time 20 ms at nominal voltage

Overall Depth 1.82 in

Overall Height - Relay 2.13 in

Package Quantity 1

Pin Shape Flat

Pins 11

Pollution Degree 3

Power Consumption 1.7 VA

Power Consumption - Relay 1.7 VA

Product Certifications EAC; CSA; UL

Product Or Component Type Plug-in relay

Protection Category RT I

Push To Test Lockable

Push-To-Test Button Lockable Push Test Button

Push-To-Test Method Lockable

Rated Impulse Withstand Voltage 4 kV 1.2/50 ÃÂµs

Rated Insulation Voltage 250 V IEC; 300 V CSA; 300 V UL

Rated Operational Current 15 A 277 V AC) UL; 15 A 28 V DC) UL; 15 A 250 V AC) NO IEC; 15 A 28 V DC) NO IEC; 7.5 A 250 V AC) NC IEC; 7.5 A 28 V DC) NC IEC

Rated Operational Voltage Limits 96 to 132 V AC

Relay Mounting Style Socket

Resistance Properties Shock-Resistant, Vibration-Resistant

Resistive Load Current 15 A 250 V AC; 15 A 28 V DC

Response Time 20 msec

Sealing Enclosed

Series Harmony(TM) RPM Series

Series Name Power

Shock Resistance 15 gnin operation; 30 gnnot operating

Socket Mfr. No. RPZF3

Socket Code E

Socket Code Configurator Socket / Square / 11 / 0.18 in
