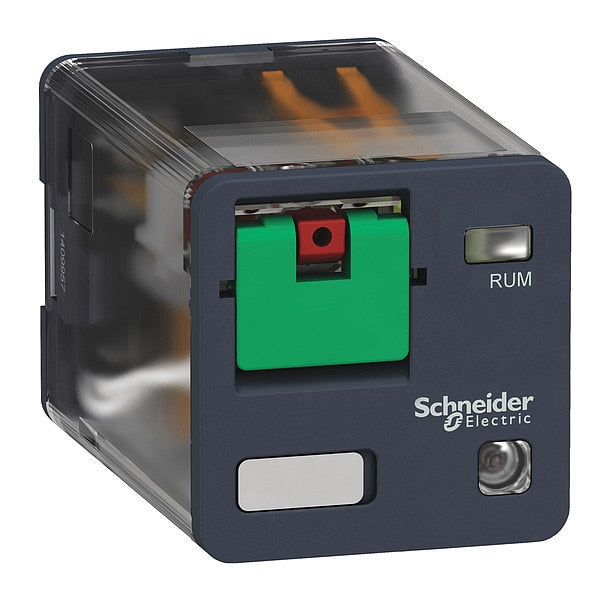

General Purpose Relay, 120V AC Coil Volts, Square, 11 Pin, 3PDT

SKU
Brand Schneider Electric
Categories
Description General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Quick-Connect, Flat Pin Width 0.189 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 250V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 2.08 in, Body Height 1.39 in
graingerSKU: 2DT44, mscSKU: , zoro_no: G2690292, mongo_id: 65bbe7649a749db822734828

Web Price

$27.19 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 277V

Ambient Air Temperature For Operation -40 to 131ÃÂ°F (-40 to 55ÃÂ°C)

Ambient Air Temperature For Storage -40 to 185ÃÂ°F (-40 to 85ÃÂ°C)

Average Coil Consumption in VA 3 60 Hz

Average Coil Resistance 1700 Ohm 20ÃÂ°C +/- 15%

Base Shape Square

Base Type - Plug In Relay Square

Body Depth 2.08 in

Body Depth - Relay 1.39 in

Body Height 1.39 in

Body Height - Relay 2.08 in

Body Width 1.37 in

Body Width - Relay 1.37 in

Coil Resistance 1,700 ohm

Coil Voltage 120V AC

Coil Voltage Type AC

Coil Volts 120V AC

Contact Form 3PDT

Contact Form - Relay 3PDT

Contact Material Silver Alloy

Contact Rating (AC) 10 A @ 250V

Contact Rating (DC) 10 A @ 28V

Contact Type and Composition 3 C/O

Contacts Material AgNi

Control Circuit Voltage 120 V AC 50/60 Hz

Control Type Lockable test button

Conventional Enclosed Thermal Current 10 A -40 to 131ÃÂ°F (-40 to 55ÃÂ°C)

Country of Origin (subject to change) China

Current Rating 10 A

DC Contact Rating - Relay 10A @ 28V

Device Presentation Complete product

Dielectric Strength 1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Poles with Basic, 2,500V AC Between Coil and Contact with Reinforced

Drop-Out Voltage Threshold Greater than or Equal to 0.15 Uc AC

Electrical Connection Quick-Connect

Electrical Connection Type Tab

Electrical Durability 100000 cycles resistive

Electrical Operating Durability 100,000

Environmental Protection Enclosed

Features Lockable Test Button; Status LED

Flat Pin Width 0.189 in

Frequency 50/60 Hz

Horsepower @ 120V AC 1/3 hp

Horsepower @ 240V AC 1/2 hp

HP @ 120V 1/3 hp

HP @ 240V 1/2 hp

Input Voltage 132V AC

IP Rating IP40

Item - Relay General Purpose Relay

Maximum Operating Temperature 131 Degrees F

Maximum Switching Capacity 2500 VA/280 W

Maximum Switching Voltage 250V

Mechanical Durability 5000000 cycles

Mechanical Operating Durability 5,000,000

Minimum Operating Temperature -40 Degrees F

Minimum Switching Capacity 170 mW 10 mA, 17 V

Minimum Switching Current 10 mA

Motor Rated Yes

Mounting Side

Mounting - Relay Plug In

Mounting Style Plug-In

Number of Pins 11

Number of Pins - Relay 11

Operating Position Any position

Operating Rate Less than or Equal to 18000 cycles/hour no-load; Less than or Equal to 1200 cycles/hour under load

Operating Temp. Range -40-55ÃÂ°C

Operating Time 20 ms at nominal voltage

Overall Depth 2.33 in

Overall Height - Relay 2.33 in

Package Quantity 1

Pin Shape Flat

Pollution Degree 3

Power Consumption 2.5 VA

Power Consumption - Relay 2.5 VA

Product Certifications CSA; UL; EAC

Product Or Component Type Plug-in relay

Protection Category RT I

Push To Test No

Push-To-Test Button Lockable Push Test Button

Push-To-Test Method Lockable

Rated Impulse Withstand Voltage 4 kV 1.2/50 ÃÂµs)

Rated Insulation Voltage 250 V IEC; 300 V CSA; 300 V UL

Rated Operational Current 10 A at 277 V AC conforming to UL; 10 A at 30 V DC conforming to UL; 10 A at 277 V AC (same polarity) conforming to CSA; 10 A at 30 V DC conforming to CSA; 5 A at 250 V AC (NC) conforming to IEC; 5 A at 28 V DC (NC) conforming to IEC; 10 A at 250 V AC (NO) conforming to IEC; 10 A at 28 V DC (NO) conforming to IEC

Rated Operational Voltage Limits 96 to 132 V AC

Relay Mounting Style Socket

Resistance Properties Shock-Resistant, Vibration-Resistant

Resistive Rated Load 10 A 250 V AC; 10 A 28 V DC

Response Time 20 msec

Sealing Enclosed

Series Harmony(TM) RUM Series

Series Name Universal

Shock Resistance 10 gn 11 ms) in operation IEC 60068-2-27; 10 gn 11 ms) not operating IEC 60068-2-27

Socket Code C

Socket Code Configurator Socket / Square / 11 / 0.189 in

Standards CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed
