Home / General Purpose Relay, 120V AC Coil Volts, Square, 14 Pin, 4PDT

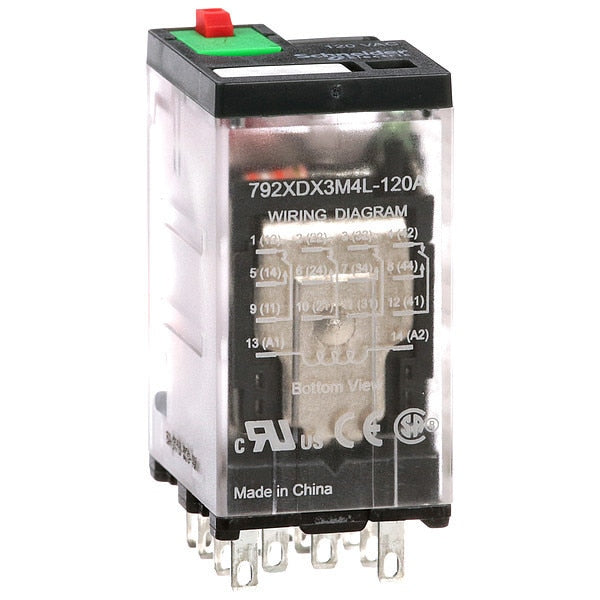

General Purpose Relay, 120V AC Coil Volts, Square, 14 Pin, 4PDT

SKU
Brand Schneider Electric
Categories
Description General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 4PDT, Current Rating 3 A, Electrical Connection Faston Connector, Flat Pin Width 0.02 in, Number of Pins 14, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 1 A @ 250V, 2 A @ 250V, 3 A @ 120/240/277V, Contact Rating (DC) 1 A @ 28V, 2 A @ 28V, 3 A @ 30V, Horsepower @ 120V AC 1/16 hp, Horsepower @ 240V AC 1 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.57 in
graingerSKU: 39DL17, mscSKU: , zoro_no: G0316876, mongo_id: 65bbe7da9a749db82275f7d8

Web Price

$16.86 / each

Qty

Product Details

AC Contact Rating - Relay 3A @ 277V

Ambient Air Temperature for Operation -40 to 131ÃÂ°F (-40 to 55ÃÂ°C)

Ambient Air Temperature for Storage -40 to 185ÃÂ°F (-40 to 85ÃÂ°C)

Base Shape Square

Base Type Square

Base Type - Plug In Relay Square

Body Depth 1.57 in

Body Depth - Relay 0.83 in

Body Height 1.07 in

Body Height - Relay 1.54 in

Body Width 0.83 in

Body Width - Relay 1.1 in

Coil Resistance 3,630 ohm

Coil Voltage 120V AC

Coil Voltage Type AC

Coil Volts 120V AC

Connections Terminals Faston connectors

Contact Composition 4 NO + 4 NC

Contact Form 4PDT

Contact Form - Relay 4PDT

Contact Material Gold Plated Bifurcated Silver

Contact Rating 3A @ 277VAC/30VDC

Contact Rating (AC) 1 A @ 250V, 2 A @ 250V, 3 A @ 120/240/277V

Contact Rating (DC) 1 A @ 28V, 2 A @ 28V, 3 A @ 30V

Control Type Lockable test button

Country of Origin (subject to change) China

Current Rating 3 A

DC Contact Rating - Relay 3A @ 28V

Depth 1.07 in (27.2 mm)

Dielectric Strength 1,300V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles

Drop-out Voltage Threshold >= 0.15 Uc AC; >= 0.1 Uc DC

Electrical Connection Faston Connector

Electrical Connection Type Tab

Electrical Durability 100000 cycles resistive

Electrical Operating Durability 100,000

Flat Pin Width 0.02 in

For Use With General Purpose Relay

Green Environmental Attribute RoHS 2011/65/EU Compliant

Height 1.57 in (40 mm)

Horsepower @ 120V AC 1/16 hp

Horsepower @ 240V AC 1 hp

HP @ 120V 1/2 hp

HP @ 240V 1 hp

Input Voltage 120V AC

IP Rating IP40

Item - Relay General Purpose Relay

Local Signalling LED; Flag

Maximum Operating Temperature 131 Degrees F

Maximum Switching Voltage 250V AC, 300V DC

Mechanical Durability 10000000 cycles

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -40 Degrees F

Minimum Switching Current 3 mA

Motor Power HP 0.0625 hp 120 V AC

Motor Rated Yes

Mounting Panel; DIN rail

Mounting - Relay Plug In

Mounting Style Plug-In

Number of Pins 14

Number of Pins - Relay 14

Operating Current 1 A at 250V AC-1 (NC Conforming to IEC), 1 A at 28V DC-1 (NC Conforming to IEC), 2 A at 250V AC-1 (NO Conforming to IEC), 2 A at 28V DC-1 (NO Conforming to IEC), 3 A at 120V AC (Conforming to UL), 3 A at 240/277V AC (Conforming to UL), 3 A at 30V DC (Conforming to UL)

Operating Time 25 ms; 20 ms at maximum rated voltage

Overall Depth 1.81 in

Overall Height - Relay 1.54 in

Package Quantity 1

Pins 14

Power Consumption 0.9 VA

Power Consumption - Relay 1.2 VA

Power consumption in VA 0.9 VA AC

Product Certifications UL; CSA; CE

Product Range Legacy

Product Type Relay

Push To Test Lockable

Push-To-Test Button Lockable Push Test Button

Push-To-Test Method Lockable

Rated Operational Current 3 A at 240/277 V AC conforming to UL; 3 A at 120 V AC conforming to UL; 3 A at 30 V DC conforming to UL; 2 A at 250 V AC-1 (NO) conforming to IEC; 2 A at 28 V DC-1 (NO) conforming to IEC; 1 A at 250 V AC-1 (NC) conforming to IEC; 1 A at 28 V DC-1 (NC) conforming to IEC

Relay Mounting Style Socket

Resistance Properties Shock-Resistant, Vibration-Resistant

Response Time 25 msec

Series 792 Series

Shock Resistance 10 gn in operation; 30 gn not operating

Socket Mfr. No. 70-782E14, 70-461

Socket Code P

Socket Code Configurator Socket / Square / 14 / 0.02 in

Standards CE Certified, CSA Certified, UL Listed

Status Indicator LED Indicator, Mechanical Flag

Surge Withstand Duration 1.2/50ÃÂµs

Vibration Resistance 3 gn 35 to 150 Hz)operating; +/- 1 mm 10 to 35 Hz)operating; 5 gn 35 to 150 Hz)not operating; +/- 1 mm 10 to 35 Hz)not operating
