Home / General Purpose Relay, 120V AC Coil Volts, Square, 14 Pin, 4PDT

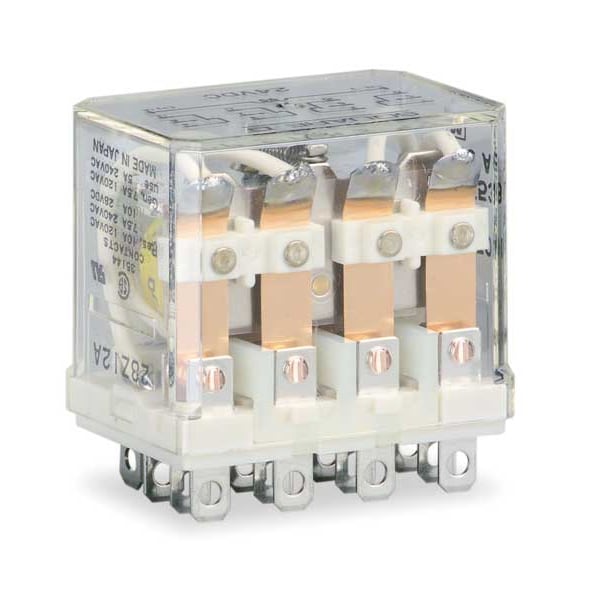

General Purpose Relay, 120V AC Coil Volts, Square, 14 Pin, 4PDT

General Purpose Relay, 120V AC Coil Volts, Square, 14 Pin, 4PDT

  • Schneider Electric
  • General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 4PDT, Current Rating 15 A, Electrical Connection Quick-Connect, Flat Pin Width 0.18 in, Number of Pins 14, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 15 A @ 277V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.07 in, Body Height 1.57 in, Body Width 0.83 in

    graingerSKU: 2DW52, mscSKU: , zoro_no: G0976814, mongo_id: 65bbe6993aaddbd5a903e197

Web Price
$81.24 / each
Qty

Product Details

15A @ 277V
Square
Square
Square
1.07 in
1.07 in
1.57 in
1.37 in
0.83 in
1.6 in
120V AC
AC
120V AC
8501NR34, 8501NR34B
8501NR34, 8501NR34B
8501NR34, 8501NR34B
8501NR34, 8501NR34B
4PDT
4PDT
Silver Alloy
10A @ 277VAC/28VDC
15 A @ 277V
10 A @ 28V
China
15 A
10A @ 28V
Quick-Connect
Tab
Enclosed
SPDT Through 4PDT, AC or DC Operated, Horsepower Rated, Socket Compatible, Manual Operator/ Green LED Pilot Light Options, Silver Tin Oxide Contacts
0.18 in
RoHS 2011/65/EU Compliant
1/2 hp
3/4 hp
1/2 hp
3/4 hp
General Purpose Relay
131 Degrees F
300V AC, 30V DC
-40 Degrees F
Yes
Plug In
Socket
14
14
-40-131°F
20 ms - pick-up || 20 ms - drop-out
1.65 in
1.65 in
1
Flat
14
2.5 VA
2.5 VA
No
No Test Button
No Button
Socket
20 msec
Enclosed
Square D 8501R Miniature Series
Mfr. No. 8501NR34
F
Socket / Square / 14 / 0.18 in
CE Certified, CSA Certified, UL Listed
Mechanical Flag
300 V AC; 30 V DC
