Home / General Purpose Relay, 120V AC Coil Volts, Square, 14 Pin, 4PDT

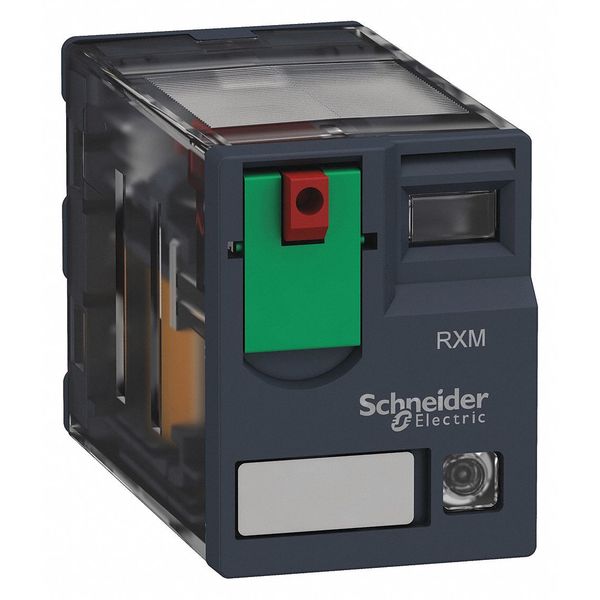

General Purpose Relay, 120V AC Coil Volts, Square, 14 Pin, 4PDT

General Purpose Relay, 120V AC Coil Volts, Square, 14 Pin, 4PDT

  • Schneider Electric
  • General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 4PDT, Current Rating 3 A, Electrical Connection Quick-Connect, Flat Pin Width 0.09 in, Number of Pins 14, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 3 A @ 250V, Contact Rating (DC) 3 A @ 28V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.57 in, Body Height 1.06 in

    graingerSKU: 1XZL7, mscSKU: , zoro_no: G2040376, mongo_id: 65bbe88a9a749db822798ee2

Web Price
$14.81 / each
Qty

Product Details

3A @ 277V
Square
Square
Square
1.57 in
1.06 in
1.06 in
1.81 in
0.82 in
0.83 in
4,430 ohm
120V AC
AC
120V AC
4PDT
4PDT
Gold Plated Silver
3A @ 277VAC/30VDC
3 A @ 250V
3 A @ 28V
China
3 A
3A @ 28V
1,300V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Quick-Connect
Tab
100,000
Enclosed
Plug In Jumper Bars for Coil Terminals to Avoid Wiring
0.09 in
RXZE Socket
50/60 Hz
RoHS 2011/65/EU Compliant
Not Rated
Not Rated
Not Rated
Not Rated
132V AC
IP40
General Purpose Relay
131 Degrees F
250V
10,000,000
-40 Degrees F
3 mA
Not Rated - Not Rated
Plug In
Plug-In
14
14
-40-55°C
20 ms
1.8 in
2.17 in
1
Flat
14
1.2 VA
1.2 VA
RT I
Lockable
Lockable Push Test Button
Lockable
Socket
Shock-Resistant, Vibration-Resistant
20 msec
Enclosed
Harmony(TM) RXM Series
Mfr. No. RXZE2M114, RXZE2M114M, RXZE2S108M
G
Socket / Square / 14 / 0.09 in
CE Certified, CSA C22.2 No 14, CSA Certified, EN/IEC 61810-1, GOST, Lloyd's, UL 508, UL Listed
Mechanical Flag
Max 750 VA/84 W; Min 15 mW 3 mA, 5 V
250 V IEC
1.28 oz
