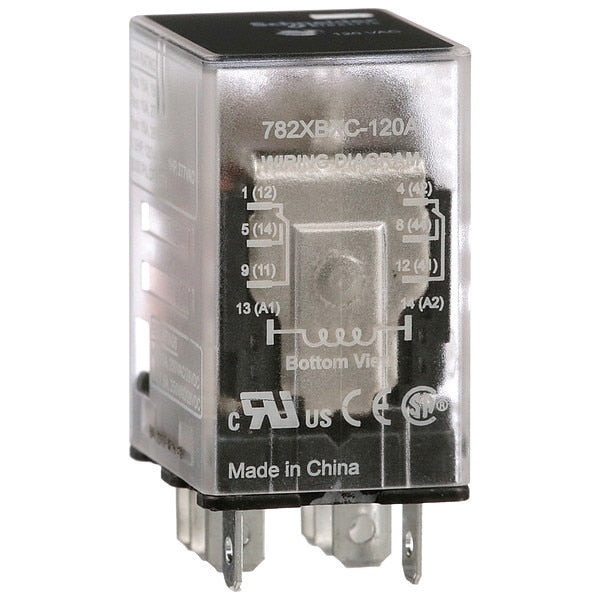

General Purpose Relay, 120V AC Coil Volts, Square, 8 Pin, DPDT

SKU
Brand Schneider Electric
Categories
Description General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 8, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V (NO), 7.55 A @ 250V (NC), Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.37 in
graingerSKU: , mscSKU: , zoro_no: G3285064, mongo_id: 65bbe6103aaddbd5a9004ed5

Web Price

$15.56 / each

Qty

Product Details

AC Contact Rating - Relay 12A @ 277V, 15A @ 120V

Ambient Air Temperature for Operation -40 to 131ÃÂ°F (-40 to 55ÃÂ°C)

Ambient Air Temperature for Storage -40 to 185ÃÂ°F (-40 to 85ÃÂ°C)

Base Shape Square

Base Type Square

Base Type - Plug In Relay Square

Body Depth 1.37 in

Body Depth - Relay 1.1 in

Body Height 1.07 in

Body Height - Relay 1.4 in

Body Width 0.83 in

Body Width - Relay 0.83 in

Coil Resistance 4,430 ohm

Coil Voltage 120V AC

Coil Voltage Type AC

Coil Volts 120V AC

Connections Terminals Faston terminals

Contact Composition 2 NO + 2 NC

Contact Form DPDT

Contact Form - Relay DPDT

Contact Material Gold Flashed Silver Alloy

Contact Rating 15A @ 120VAC, 12A @ 277VAC/28VDC

Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V (NO), 7.55 A @ 250V (NC)

Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC)

Contacts Material Silver alloy, gold flashed

Country of Origin (subject to change) China

Current Rating 15 A

DC Contact Rating - Relay 12A @ 28V

Depth 1.07 in (27.3 mm)

Dielectric Strength 1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles

Drop-out Voltage Threshold >= 0.15 Uc AC; >= 0.1 Uc DC

Electrical Connection Faston Terminal

Electrical Connection Type Tab

Electrical Durability 100000 cycles resistive

Electrical Operating Durability 100,000

Features Gold Flashed Contacts

Flat Pin Width 0.187 in

For Use With Automation Panels and Controls

Green Environmental Attribute RoHS 2011/65/EU Compliant

Height 1.37 in (34.8 mm)

Horsepower @ 120V AC 1/2 hp

Horsepower @ 240V AC 1 hp

HP @ 120V 1/2 hp

HP @ 240V 1 hp

Input Voltage 120V AC

IP Rating IP40

Item - Relay General Purpose Relay

Local Signalling Flag

Maximum Operating Temperature 131 Degrees F

Maximum Switching Voltage 250V AC, 300V DC

Mechanical Durability 10000000 cycles

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -40 Degrees F

Minimum Switching Current 10 mA

Motor Power HP 0.5 hp 120 V AC 50/60 Hz; 1 hp 277 V AC 50/60 Hz

Motor Rated Yes

Mounting - Relay Plug In

Mounting Style Socket

Number of Pins 8

Number of Pins - Relay 8

Operating Current 10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC)

Operating Time 20 ms operating; 20 ms tripping

Overall Depth 1.66 in

Overall Height - Relay 1.64 in

Package Quantity 1

Pins 8

Power Consumption 0.85 W, 1.1 VA

Power Consumption - Relay 1.2 VA

Power consumption in VA 1.1 VA AC

Power consumption in W 0.85 W DC

Product Certifications UL; CE; CSA

Product Range Legacy

Product Type Power relay

Push To Test No

Push-To-Test Button No Test Button

Push-To-Test Method No Button

Rated Operational Current 15 A at 120...277 V AC conforming to UL; 15 A at 28 V DC conforming to UL; 15 A at 120/150 V AC conforming to CSA; 10 A at 151/277 V AC conforming to CSA; 15 A at 28 V DC conforming to CSA; 15 A at 250 V AC (NO) conforming to IEC; 15 A at 28 V DC (NO) conforming to IEC; 7.55 A at 250 V AC (NC) conforming to IEC; 7.55 A at 28 V DC (NC) conforming to IEC

Relay Mounting Style Socket

Resistance Properties Shock-Resistant, Vibration-Resistant

Response Time 20 msec

Series 782 Series

Shock Resistance 15 gn in operation

Socket Mfr. No. 70-459-1, 70-782D8-1A

Socket Code J

Socket Code Configurator Socket / Square / 8 / 0.187 in

Standards CE Certified, CSA Certified, UL Listed

Status Indicator Mechanical Flag

Vibration Resistance +/- 1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz)

Voltage Range 0.8...1.1 Un AC/DC
