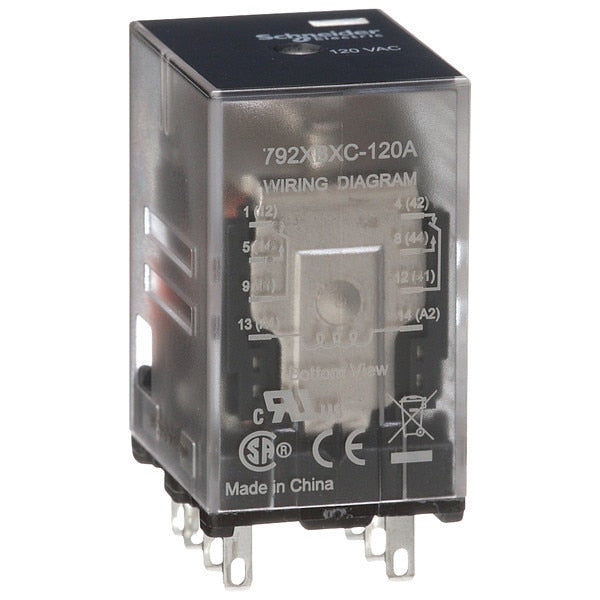

General Purpose Relay, 120V AC Coil Volts, Square, 8 Pin, DPDT

SKU
Brand Schneider Electric
Categories
Description General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 12 A, Electrical Connection Faston Connector, Number of Pins 8, Status Indicator Mechanical Flag, Contact Rating (AC) 12 A @ 120V, 12 A @ 277V, 12 A @ AC-1 (NO), 6 A @ AC-1 (NC), Contact Rating (DC) 12 A @ 30V, 12 A @ DC-1 (NO), 6 A @ DC-1 (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Plug-In, Push-To-Test Method Manual, Body Depth 1.07 in, Body Height 1.37 in
graingerSKU: 39DL37, mscSKU: , zoro_no: G0059276, mongo_id: 65bbe8f722d7a989a9927cce

Web Price

$12.74 / each

Qty

Minimum order: 2

Product Details

AC Contact Rating - Relay 12A @ 277V

Ambient Air Temperature for Operation -40 to 131ÃÂ°F (-40 to 55ÃÂ°C)

Ambient Air Temperature for Storage -40 to 185ÃÂ°F (-40 to 85ÃÂ°C)

Base Shape Square

Base Type Square

Base Type - Plug In Relay Square

Body Depth 1.07 in

Body Depth - Relay 0.83 in

Body Height 1.37 in

Body Height - Relay 1.4 in

Body Width 0.83 in

Body Width - Relay 1.1 in

Coil Resistance 3,630 ohm

Coil Voltage 120V AC

Coil Voltage Type AC

Coil Volts 120V AC

Connections Terminals Faston connectors

Contact Composition 2 NO + 2 NC

Contact Form DPDT

Contact Form - Relay DPDT

Contact Material Gold Flashed Silver

Contact Rating 12A @ 277VAC/30VDC

Contact Rating (AC) 12 A @ 120V, 12 A @ 277V, 12 A @ AC-1 (NO), 6 A @ AC-1 (NC)

Contact Rating (DC) 12 A @ 30V, 12 A @ DC-1 (NO), 6 A @ DC-1 (NC)

Contacts Material Silver with gold flashed contacts

Country of Origin (subject to change) China

Current Rating 12 A

DC Contact Rating - Relay 12A @ 28V

Depth 1.07 in (27.2 mm)

Dielectric Strength 1,300V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles

Drop-out Voltage Threshold >= 0.15 Uc AC; >= 0.1 Uc DC

Electrical Connection Faston Connector

Electrical Connection Type Tab

Electrical Durability 100000 cycles resistive

Electrical Operating Durability 100,000

Features Clear Cover

For Use With General Purpose Relay

Green Environmental Attribute RoHS 2011/65/EU Compliant

Height 1.37 in (34.8 mm)

Horsepower @ 120V AC 1/2 hp

Horsepower @ 240V AC 1 hp

HP @ 120V 1/2 hp

HP @ 240V 1 hp

Input Voltage 120V AC

IP Rating IP40

Item - Relay General Purpose Relay

Local Signalling Flag

Maximum Operating Temperature 131 Degrees F

Maximum Switching Voltage 250V AC, 300V DC

Mechanical Durability 10000000 cycles

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -40 Degrees F

Minimum Switching Current 10 mA

Motor Power HP 0.5 hp 120 V AC; 1 hp 277 V AC

Motor Rated Yes

Mounting Panel; DIN rail

Mounting - Relay Plug In

Mounting Style Plug-In

Number of Pins 8

Number of Pins - Relay 8

Operating Current 12 A AC-1 (NO Conforming to IEC), 12 A at 120V AC (Conforming to UL), 12 A at 277V AC (Conforming to UL), 12 A at 30V DC (Conforming to UL), 12 A DC-1 (NO Conforming to IEC), 6 A AC-1 (NC Conforming to IEC), 6 A DC-1 (NC Conforming to IEC)

Operating Time 25 ms; 20 ms at maximum rated voltage

Overall Depth 1.97 in

Overall Height - Relay 1.4 in

Package Quantity 1

Pins 8

Power Consumption 0.9 VA

Power Consumption - Relay 1.2 VA

Power consumption in VA 0.9 VA AC

Product Certifications UL; CSA; CE

Product Range Legacy

Product Type Relay

Push To Test Manual

Push-To-Test Button Manual Push Test Button

Push-To-Test Method Manual

Rated Operational Current 12 A at 277 V AC conforming to UL; 12 A at 120 V AC conforming to UL; 12 A at 30 V DC conforming to UL; 12 A AC-1 (NO) conforming to IEC; 6 A AC-1 (NC) conforming to IEC; 12 A DC-1 (NO) conforming to IEC; 6 A DC-1 (NC) conforming to IEC

Relay Mounting Style Socket

Resistance Properties Shock-Resistant, Vibration-Resistant

Response Time 25 msec

Series 792 Series

Shock Resistance 10 gn in operation; 30 gn not operating

Socket Mfr. No. 70-782EL8

Socket Code Q

Socket Code Configurator Socket / Square / 8

Standards CE Certified, CSA Certified, UL Listed

Status Indicator Mechanical Flag

Surge Withstand Duration 1.2/50ÃÂµs

Vibration Resistance 3 gn 35 to 150 Hz)operating; +/- 1 mm 10 to 35 Hz)operating; 5 gn 35 to 150 Hz)not operating; +/- 1 mm 10 to 35 Hz)not operating
