Home / General Purpose Relay, 12V DC Coil Volts, Square, 5 Pin, SPDT

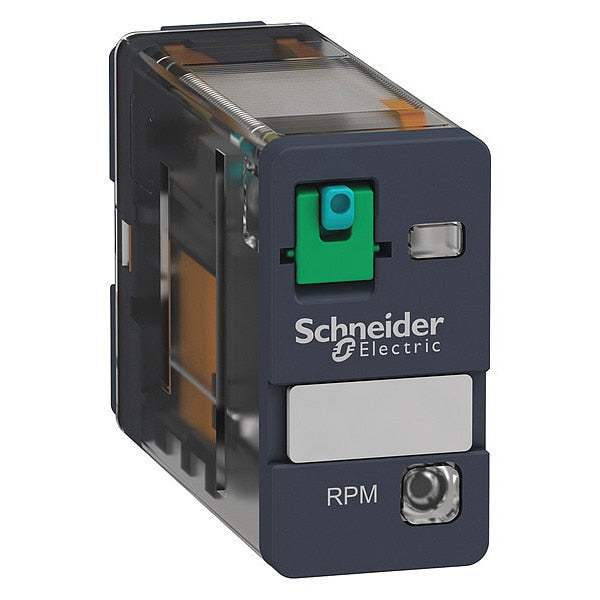

General Purpose Relay, 12V DC Coil Volts, Square, 5 Pin, SPDT

General Purpose Relay, 12V DC Coil Volts, Square, 5 Pin, SPDT

  • Schneider Electric
  • General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form SPDT, Current Rating 15 A, Electrical Connection Quick-Connect, Flat Pin Width 0.19 in, Number of Pins 5, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 15 A @ 250V, Contact Rating (DC) 15 A @ 28V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.58 in, Body Height 1.06 in

    graingerSKU: 1XZN5, mscSKU: , zoro_no: G2181173, mongo_id: 65bbe8f722d7a989a9927cd8

Web Price
$9.56 / each
Qty

Product Details

15A @ 277V
Square
Square
Square
1.58 in
1.06 in
1.06 in
1.89 in
0.55 in
0.55 in
115 ohm
12V DC
DC
12V DC
SPDT
SPDT
Silver Alloy
15A @ 277VAC/28VDC
15 A @ 250V
15 A @ 28V
China
15 A
15A @ 28V
1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact with Reinforced
Quick-Connect
Tab
100,000
Enclosed
Plug In Protection Module to Protect Against Electrical Spikes
0.19 in
Hard-Wired Logic Automated Systems
RoHS 2011/65/EU Compliant
Not Rated
Not Rated
Not Rated
Not Rated
13.2V DC
IP40
General Purpose Relay
131 Degrees F
250V
10,000,000
-40 Degrees F
10 mA
Not Rated - Not Rated
Plug In
Plug-In
5
5
-40-55°C
20 ms at nominal voltage
1.86 in
1.97 in
1
Flat
5
1.1 W
1.1 W
RT I
Lockable
Lockable Push Test Button
Lockable
Socket
Shock-Resistant, Vibration-Resistant
20 msec
Enclosed
Harmony(TM) RPM Series
Mfr. No. RPZF1
L
Socket / Square / 5 / 0.19 in
CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed
Mechanical Flag
Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V
250 V IEC
0.96 oz
