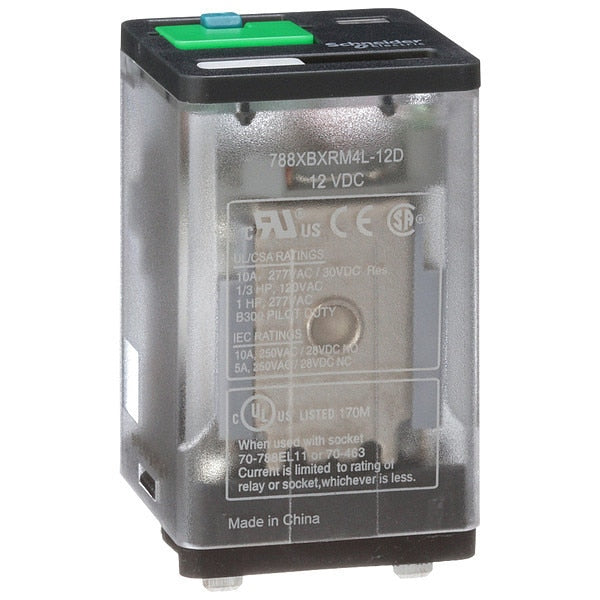

General Purpose Relay, 12V DC Coil Volts, Square, 8 Pin, DPDT

SKU
Brand Schneider Electric
Categories
Description General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Blade Terminal, Flat Pin Width 0.189 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 2.09 in, Body Height 1.4 in
graingerSKU: , mscSKU: , zoro_no: G9784345, mongo_id: 65bbe6103aaddbd5a9004ecc

Web Price

$23.61 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 277V

Ambient Air Temperature for Operation -40 to 131ÃÂ°F (-40 to 55ÃÂ°C)

Ambient Air Temperature for Storage -40 to 185ÃÂ°F (-40 to 85ÃÂ°C)

Base Shape Square

Base Type Square

Base Type - Plug In Relay Square

Body Depth 2.09 in

Body Depth - Relay 1.38 in

Body Height 1.4 in

Body Height - Relay 2.09 in

Body Width 1.38 in

Body Width - Relay 1.4 in

Coil Resistance 120 ohm

Coil Voltage 12V DC

Coil Voltage Type DC

Coil Volts 12V DC

Contact Composition 2 NC + 2 NO

Contact Form DPDT

Contact Form - Relay DPDT

Contact Material Silver Alloy

Contact Rating 10A @ 277VAC/30VDC

Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC)

Contact Rating (DC) 10 A @ 28V

Contacts Material Silver alloy, gold flashed

Control Circuit Voltage Limits 0.8...1.1 Un DC

Control Type Lockable test button

Country of Origin (subject to change) China

Current Rating 10 A

DC Contact Rating - Relay 10A @ 28V

Depth 1.40 in (35.5 mm)

Dielectric Strength 1,500V AC Between Contacts, 2,000V AC Between Poles, 2,500V AC Between Coil and Contact

Drop-out Voltage Threshold >= 0.15 Uc AC; >= 0.1 Uc DC

Electrical Connection Blade Terminal

Electrical Connection Type Tab

Electrical Durability 100000 cycles

Electrical Operating Durability 100,000

Environmental Protection Enclosed

Features Clear Cover

Flat Pin Width 0.189 in

Green Environmental Attribute RoHS 2011/65/EU Compliant

Height 2.09 in (53 mm)

Horsepower @ 120V AC 1/3 hp

Horsepower @ 240V AC 1/2 hp

HP @ 120V 1/3 hp

HP @ 240V 1/2 hp

Input Voltage 12V DC

IP Rating IP40

Item - Relay General Purpose Relay

Local Signalling LED Cover; Flag

Maximum Operating Temperature 131 Degrees F

Maximum Switching Voltage 250V, 300V

Mechanical Durability 5000000 cycles

Mechanical Operating Durability 5,000,000

Minimum Operating Temperature -40 Degrees F

Minimum Switching Current 10 mA

Motor Rated Yes

Mounting - Relay Plug In

Mounting Style Plug-In

Number of Pins 8

Number of Pins - Relay 8

Operating Current 10 A at 250V AC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 277V AC (Resistive Load Conforming to UL), 10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 30V DC (Resistive Load Conforming to UL), 5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC), 5 A at 28V DC-1 (1 NC Resistive Load Conforming to IEC)

Operating Time 20 ms

Overall Depth 2.09 in

Overall Height - Relay 2.09 in

Package Quantity 1

Pin Shape Flat

Pins 8

Power Consumption 1.4 W

Power Consumption - Relay 1.4 W

Product Certifications UL; CSA; CE; EAC

Product Type Plug-in electromechanical relay

Push To Test Lockable

Push-To-Test Button Lockable Push Test Button

Push-To-Test Method Lockable

Rated Operational Current 10 A at 277 V AC (on resistive load) conforming to UL; 10 A at 30 V DC (on resistive load) conforming to UL; 10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC; 10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC; 5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC; 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC

Rated Power in HP 0.33 HP 120 V AC; 1 HP 277 V AC

Relay Mounting Style Socket

Resistance Properties Shock-Resistant, Vibration-Resistant

Response Time 20 msec

Sealing Enclosed

Series 788R Series

Shock Resistance 10 gn

Socket Mfr. No. 70-463-1, 70-124-1, 70-124-2, 70-178-1, 70-178-2

Socket Code C

Socket Code Configurator Socket / Square / 8 / 0.189 in

Standards CE Certified, CSA Certified, EAC, UL Listed

Status Indicator Mechanical Flag
