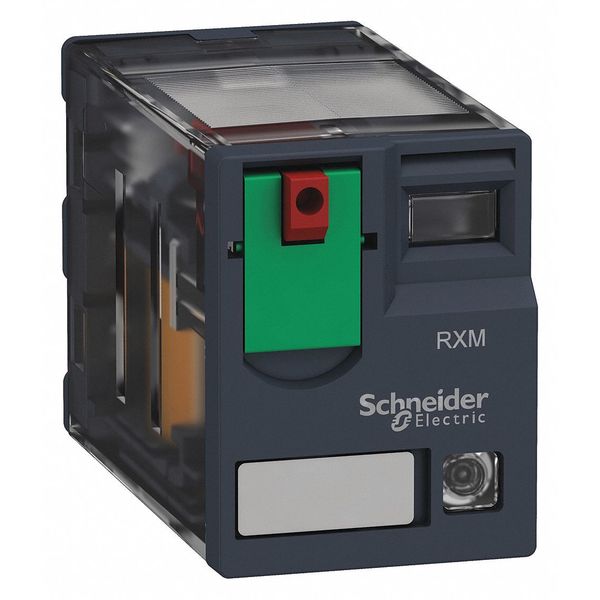

Home / General Purpose Relay, 240V AC Coil Volts, Square, 14 Pin, 4PDT
General Purpose Relay, 240V AC Coil Volts, Square, 14 Pin, 4PDT

General Purpose Relay, 240V AC Coil Volts, Square, 14 Pin, 4PDT

  • Schneider Electric
  • General Purpose Relay, Base Shape Square, Coil Voltage 230V AC, Contact Form 4PDT, Current Rating 6 A, Electrical Connection Quick-Connect, Flat Pin Width 0.09 in, Number of Pins 14, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 6 A @ 250V, Contact Rating (DC) 6 A @ 28V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.57 in, Body Height 1.06 in

    graingerSKU: 1XZP9, mscSKU: , zoro_no: G0442242, mongo_id: 65bbe9d422d7a989a997df32

Web Price
$11.81 / each
Qty

Product Details

6A @ 277V
-40 to 131°F (-40 to 55°C)
-40 to 185°F (-40 to 85°C)
1.2 60 Hz
15000 Ohm 20°C +/- 15%
1.2 VA 60 Hz
Square
Square
Square
1.57 in
1.06 in
1.06 in
1.81 in
0.82 in
0.83 in
15,000 ohm
230V AC
AC
240V AC
4PDT
4PDT
Silver Alloy
6A @ 277VAC, 8A @ 30VDC
6 A @ 250V
6 A @ 28V
4 C/O
AgNi
5 A
230 V AC 50/60 Hz
Lockable test button
Multiple
6 A
8A @ 28V
Complete product
1,300V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact with Basic Insulation, 2,000V AC Between Poles with Basic Insulation
Greater than or Equal to 0.15 Uc
Quick-Connect
Tab
100000 cycles resistive
100,000
Enclosed
Lockable Test Button; Status LED
0.09 in
RXZE Socket
50/60 Hz
RoHS 2011/65/EU Compliant
Not Rated
Not Rated
Not Rated
Not Rated
253V AC
IP40 conforming to IEC 60529
IP40
General Purpose Relay
131 Degrees F
1500 VA/168 W
250V
10000000 cycles
10,000,000
-40 Degrees F
170 mW 10 mA, 17 V
10 mA
Not Rated - Not Rated
Plug In
Plug-In
14
14
Any position
Less than or Equal to 1200 cycles/hour under load; Less than or Equal to 18000 cycles/hour no-load
-40-55°C
20 ms
1.8 in
2.17 in
1
Flat
14
2
1.2 VA
1.2 VA
CE; CSA; GOST; UL; Lloyd's
Plug-in relay
RT I
Lockable
Lockable Push Test Button
Lockable
2.5 kV 1.2/50 µs
250 V IEC; 300 V CSA; 300 V UL
3 A 28 V DC) NC IEC; 3 A 250 V AC) NC IEC; 6 A 28 V DC) NO IEC; 6 A 250 V AC) NO IEC; 6 A 277 V AC) UL; 8 A 30 V DC) UL
184 to 253 V AC
Socket
Shock-Resistant, Vibration-Resistant
6 A 250 V AC; 6 A 28 V DC
20 msec
Enclosed
Harmony(TM) RXM Series
Miniature
10 gnin operation; 30 gnnot operating
Mfr. No. RXZE2M114, RXZE2M114M, RXZE2S108M
G
Socket / Square / 14 / 0.09 in
CE Certified, CSA C22.2 No 14, CSA Certified, EN/IEC 61810-1, GOST, Lloyd's, UL 508, UL Listed
Mechanical Flag
With
Max 1500 VA/168 W; Min 170 mW 10 mA, 17 V
250 V IEC
Level A group mounting
0.2
3 gn +/- 1 mm 10 to 150 Hz)5 cycles in operation; 5 gn +/- 1 mm 10 to 150 Hz)5 cycles not operating
1.28 oz
