Home / General Purpose Relay, 24V AC Coil Volts, Square, 14 Pin, 4PDT

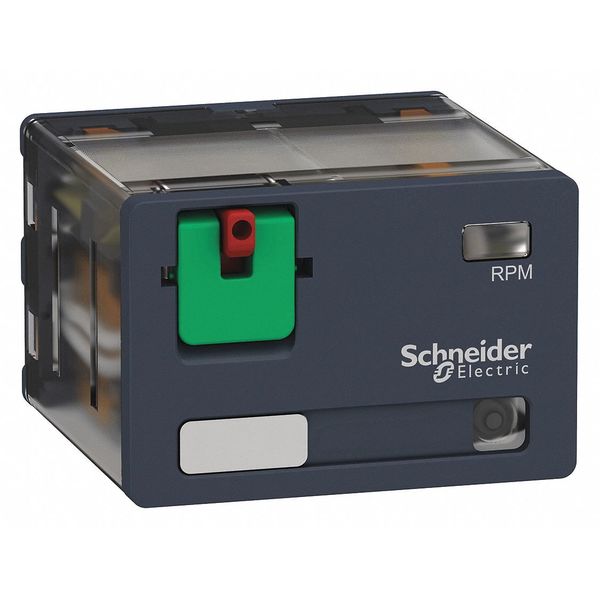

General Purpose Relay, 24V AC Coil Volts, Square, 14 Pin, 4PDT

General Purpose Relay, 24V AC Coil Volts, Square, 14 Pin, 4PDT

  • Schneider Electric
  • General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form 4PDT, Current Rating 15 A, Electrical Connection Quick-Connect, Flat Pin Width 0.18 in, Number of Pins 14, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 15 A @ 250V, Contact Rating (DC) 15 A @ 28V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.54 in, Body Height 1.06 in

    graingerSKU: 1XZK4, mscSKU: , zoro_no: G1449761, mongo_id: 65bbee06526e052139ae51af

Web Price
$24.81 / each
Qty

Product Details

15A @ 277V
Square
Square
Square
1.54 in
1.06 in
1.06 in
1.82 in
1.61 in
1.57 in
80 ohm
24V AC
AC
24V AC
4PDT
4PDT
Silver Alloy
15A @ 277VAC/28VDC
15 A @ 250V
15 A @ 28V
China
15 A
15A @ 28V
1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact with Reinforced, 2,000V AC Between Poles with Basic
Quick-Connect
Tab
100,000
Enclosed
Plug In Protection Module to Protect Against Electrical Spikes
0.18 in
Hard-Wired Logic Automated Systems
50/60 Hz
RoHS 2011/65/EU Compliant
Not Rated
Not Rated
Not Rated
Not Rated
26.4V AC
IP40
General Purpose Relay
131 Degrees F
250V
10,000,000
-40 Degrees F
10 mA
Not Rated - Not Rated
Plug In
Plug-In
14
14
-40-55°C
20 ms at nominal voltage
1.82 in
2.13 in
1
Flat
14
2.5 VA
2.5 VA
RT I
Lockable
Lockable Push Test Button
Lockable
Socket
Shock-Resistant, Vibration-Resistant
20 msec
Enclosed
Harmony(TM) RPM Series
Mfr. No. RPZF4
F
Socket / Square / 14 / 0.18 in
CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed
Mechanical Flag
Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V
250 V IEC
2.56 oz
