Home / General Purpose Relay, 24V AC Coil Volts, Square, 8 Pin, DPDT

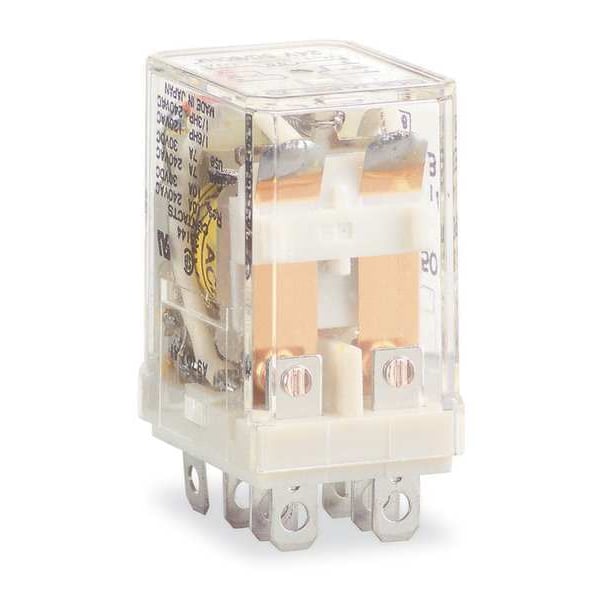

General Purpose Relay, 24V AC Coil Volts, Square, 8 Pin, DPDT

General Purpose Relay, 24V AC Coil Volts, Square, 8 Pin, DPDT

  • Schneider Electric
  • General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form DPDT, Current Rating 15 A, Electrical Connection Quick-Connect, Flat Pin Width 0.18 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 15 A @ 120V, 15 A @ 277V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1/10 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.65 in, Body Height 1.07 in

    graingerSKU: 2DW38, mscSKU: , zoro_no: G6061361, mongo_id: 65bbe85f22d7a989a98ee79d

Web Price
$60.27 / each
Qty

Product Details

10A @ 240V
Square
Square
1.65 in
1.07 in
1.07 in
1.37 in
0.83 in
0.83 in
24V AC
AC
24V AC
8501NR42, 8501NR42B
8501NR42, 8501NR42B
8501NR42, 8501NR42B
8501NR42, 8501NR42B
DPDT
DPDT
Silver Alloy
10A @ 240VAC/28VDC
15 A @ 120V, 15 A @ 277V
10 A @ 28V
China
15 A
10A @ 28V
Quick-Connect
Tab
Enclosed
SPDT through 4PDT, AC or DC operated, Horsepower rated, Socket compatible, Manual operator/ Green LED pilot light options
0.18 in
1/2 hp
1/10 hp
1/10 hp
1/10 hp
General Purpose Relay
131 Degrees F
300V AC, 30V DC
-40 Degrees F
Yes
Socket
Plug In
Socket
8
8
-40-131°F
20 ms - pick-up || 20 ms - drop-out
1.65 in
1.65 in
1
Flat
8
1.4 VA
1.4 VA
No
No Test Button
No Button
Socket
20 msec
Enclosed
Square D 8501R Miniature Series
D
Socket / Square / 8 / 0.18 in
CE Certified, CSA Certified, UL Listed
Mechanical Flag
300 V AC; 30 V DC
