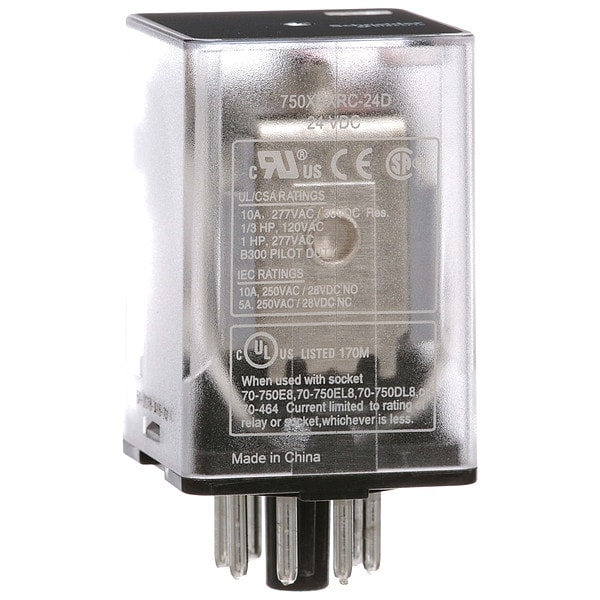

General Purpose Relay, 24V DC Coil Volts, Octal, 8 Pin, DPDT

SKU
Brand Schneider Electric
Categories
Description General Purpose Relay, Base Shape Octal, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection 8-Pin Terminal, Flat Pin Width Not Applicable, Number of Pins 8, Pin Shape Round, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 2.05 in, Body Height 1.4 in
graingerSKU: 35KR30, mscSKU: , zoro_no: G9784521, mongo_id: 65bbe6dd3aaddbd5a905ada2

Web Price

$25.24 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 277V

Ambient Air Temperature for Operation -40 to 131ÃÂ°F (-40 to 55ÃÂ°C)

Ambient Air Temperature for Storage -40 to 185ÃÂ°F (-40 to 85ÃÂ°C)

Base Shape Octal

Base Type Octal

Base Type - Plug In Relay Octal

Body Depth 2.05 in

Body Depth - Relay 1.4 in

Body Height 1.4 in

Body Height - Relay 2.09 in

Body Width 1.38 in

Body Width - Relay 1.38 in

Coil Resistance 470 ohm

Coil Voltage 24V DC

Coil Voltage Type DC

Coil Volts 24V DC

Connections Terminals octal terminal connector socket 8 pins)

Contact Composition 2 NC + 2 NO

Contact Form DPDT

Contact Form - Relay DPDT

Contact Material Silver Alloy

Contact Rating 10A @ 277VAC/30VDC

Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC)

Contact Rating (DC) 10 A @ 28V

Contacts Material Silver alloy, gold flashed

Control Circuit Voltage Limits 0.8...1.1 Un DC

Country of Origin (subject to change) China

Current Rating 10 A

DC Contact Rating - Relay 10A @ 28V

Depth 1.40 in (35.5 mm)

Dielectric Strength 1,500V AC Between Contacts, 2,000V AC Between Poles, 2,500V AC Between Coil and Contact

Drop-out Voltage Threshold >= 0.15 Uc AC; >= 0.1 Uc DC

Electrical Connection 8-Pin Terminal

Electrical Connection Type Pin

Electrical Durability 100000 cycles

Electrical Operating Durability 100,000

Environmental Protection Enclosed

Features Clear Cover

Flat Pin Width Not Applicable

Green Environmental Attribute RoHS 2011/65/EU Compliant

Height 2.05 in (52 mm)

Horsepower @ 120V AC 1/3 hp

Horsepower @ 240V AC 1/2 hp

HP @ 120V 1/3 hp

HP @ 240V 1/2 hp

Input Voltage 24V DC

IP Rating IP40

Item - Relay General Purpose Relay

Local Signalling Flag Cover

Maximum Operating Temperature 131 Degrees F

Maximum Switching Voltage 250V AC, 28V DC, 300V AC, 30V DC

Mechanical Durability 5000000 cycles

Mechanical Operating Durability 5,000,000

Minimum Operating Temperature -40 Degrees F

Minimum Switching Current 10 mA

Motor Rated Yes

Mounting - Relay Plug In

Mounting Style Plug-In

Number of Pins 8

Number of Pins - Relay 8

Operating Current 10 A at 250V AC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 277V AC (Resistive Load Conforming to UL), 10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 30V DC (Resistive Load Conforming to UL), 5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC), 5 A at 28V DC-1 (1 NC Resistive Load Conforming to IEC)

Operating Time 20 ms

Overall Depth 2.05 in

Overall Height - Relay 2.09 in

Package Quantity 1

Pin Shape Round

Pins 8

Power Consumption 1.4 W

Power Consumption - Relay 1.4 W

Product Certifications UL; CSA; CE; EAC

Product Type Plug-in electromechanical relay

Push To Test No

Push-To-Test Button No Test Button

Push-To-Test Method No Button

Rated Operational Current 10 A at 277 V AC (on resistive load) conforming to UL; 10 A at 30 V DC (on resistive load) conforming to UL; 10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC; 10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC; 5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC; 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC

Rated Power in HP 0.33 HP 120 V AC; 1 HP 277 V AC

Relay Mounting Style Socket

Resistance Properties Shock-Resistant, Vibration-Resistant

Response Time 20 msec

Sealing Enclosed

Series 750R Series

Shock Resistance 10 gn

Socket Mfr. No. 70-750E8-1, 70-750DL8-1, 70-464-1, 70-169-1

Socket Code A

Socket Code Configurator Socket / Octal / 8

Standards CE Certified, CSA Certified, EAC, UL Listed

Status Indicator Mechanical Flag
