Home / General Purpose Relay, 24V DC Coil Volts, Octal, 8 Pin, DPDT

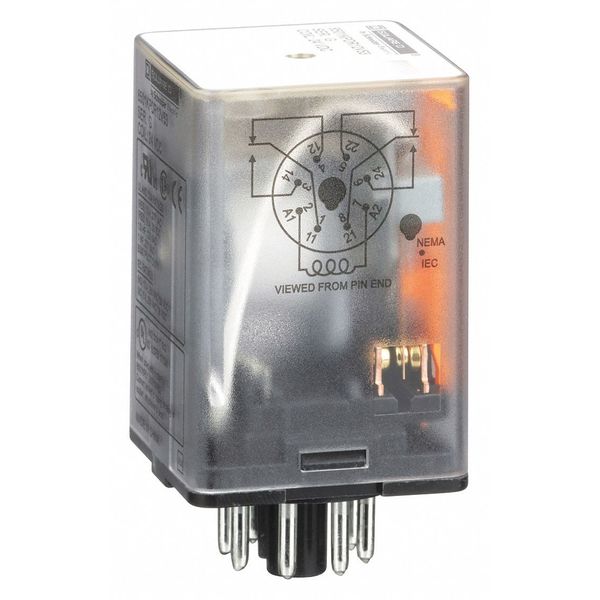

General Purpose Relay, 24V DC Coil Volts, Octal, 8 Pin, DPDT

General Purpose Relay, 24V DC Coil Volts, Octal, 8 Pin, DPDT

  • Schneider Electric
  • General Purpose Relay, Base Shape Octal, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection 8-Pin Terminal, Flat Pin Width Not Applicable, Number of Pins 8, Pin Shape Round, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 2.1 in, Body Height 1.4 in, Body Width 1.4 in

    graingerSKU: 2DT24, mscSKU: 69683027, zoro_no: G1943952, mongo_id: 65bbe78f9a749db822742cdc

Web Price
$72.74 / each
Qty

Product Details

10A @ 277V
-40 to 131°F (-40 to 55°C)
Octal
Octal
Octal
2.1 in
2.1 in
1.4 in
2.1 in
1.4 in
1.4 in
3 A 120 V AC inductive control circuit UL 508; 1.5 A 240 V AC inductive control circuit UL 508; 10 A 277 V AC resistive control circuit UL 508; 10 A 30 V DC resistive control circuit UL 508
24V DC
DC
24V DC
8501NR51, 8501NR52
8501NR51, 8501NR52
8501NR51, 8501NR52
8501NR51, 8501NR52
DPDT
DPDT
Silver Alloy
10A @ 277VAC/30VDC
10 A @ 277V
10 A @ 28V
24 V DC
China
10 A
10A @ 28V
1.4 in (35.56 mm)
8-Pin Terminal
Pin
Enclosed
Not Applicable
8501NR52; 8501NR51
RoHS 2011/65/EU Compliant
2.66 in (67.56 mm)
1/3 hp
1/2 hp
1 hp 277 V AC; 0.33 hp 120 V AC
1/3 hp
1/2 hp
General Purpose Relay
Without test button
131 Degrees F
300V AC, 30V DC
-40 Degrees F
Yes
Plug In
Socket
8
8
-40-131°F
20 ms - pick-up || 20 ms - drop-out
2.7 in
2.6 in
1
No indicator
Round
8
1.4 W
1.4 W
UL Listed; UL Recognized; CSA; CE
Relay
No
No Test Button
No Button
Socket
General purpose
20 msec
Enclosed
Square D 8501K Series
Tubular
Mfr. No. 8501NR51 or 8501NR52
A
Socket / Octal / 8
CE Certified, CSA Certified, UL Listed
Mechanical Flag
300 V AC; 30 V DC
1.4 in (35.56 mm)
