Home / General Purpose Relay, 24V DC Coil Volts, Square, 11 Pin, 3PDT

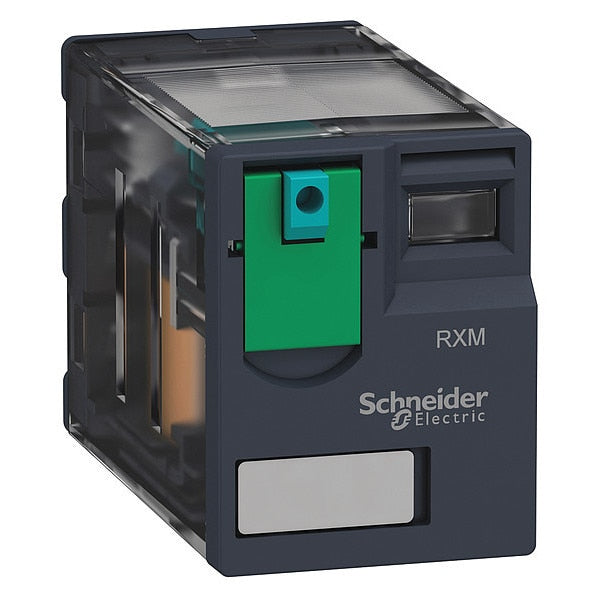

General Purpose Relay, 24V DC Coil Volts, Square, 11 Pin, 3PDT

General Purpose Relay, 24V DC Coil Volts, Square, 11 Pin, 3PDT

  • Schneider Electric
  • General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Quick-Connect, Flat Pin Width 0.09 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 250V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.57 in, Body Height 1.06 in, Body Width 0.82 in

    graingerSKU: 1DPY7, mscSKU: , zoro_no: G3002307, mongo_id: 65bbe8d122d7a989a9919624

Web Price
$12.11 / each
Qty

Product Details

10A @ 277V
Square
Square
Square
1.57 in
1.06 in
1.06 in
1.81 in
0.82 in
0.83 in
650 ohm
24V DC
DC
24V DC
3PDT
3PDT
Silver Alloy
10A @ 277VAC/30VDC
10 A @ 250V
10 A @ 28V
China
10 A
10A @ 28V
1,300V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Quick-Connect
Tab
100,000
Enclosed
Plug In Jumper Bars for Coil Terminals to Avoid Wiring
0.09 in
RXZE Socket
RoHS 2011/65/EU Compliant
Not Rated
Not Rated
Not Rated
Not Rated
26.4V DC
IP40
General Purpose Relay
131 Degrees F
250V
10,000,000
-40 Degrees F
10 mA
Not Rated - Not Rated
Plug In
Plug-In
11
11
-40-55°C
20 ms
1.8 in
2.17 in
1
Flat
11
0.9 W
1.1 W
RT I
Lockable
Lockable Push Test Button
Lockable
Socket
Shock-Resistant, Vibration-Resistant
20 msec
Enclosed
Harmony(TM) RXM Series
Mfr. No. RXZE2S111M
R
Socket / Square / 11 / 0.09 in
CE Certified, CSA C22.2 No 14, CSA Certified, EN/IEC 61810-1, GOST, Lloyd's, UL 508, UL Listed
Mechanical Flag
Max 2500 VA/280 W; Min 170 mW 10 mA, 17 V
250 V IEC
1.28 oz
