Home / General Purpose Relay, 24V DC Coil Volts, Square, 14 Pin, 4PDT

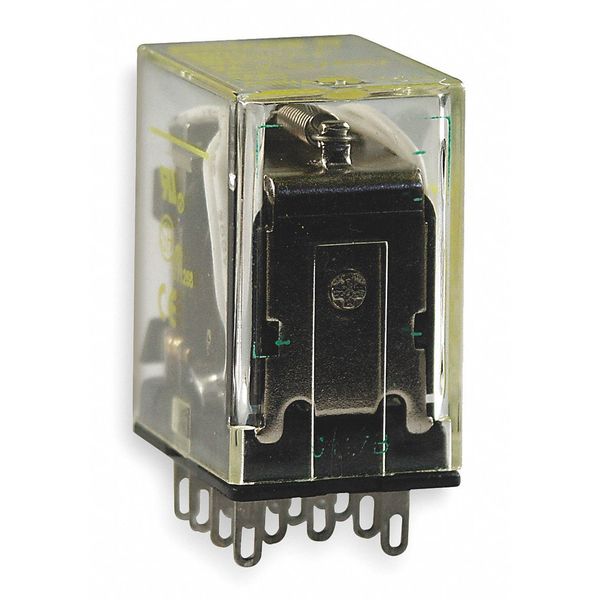

General Purpose Relay, 24V DC Coil Volts, Square, 14 Pin, 4PDT

General Purpose Relay, 24V DC Coil Volts, Square, 14 Pin, 4PDT

  • Schneider Electric
  • General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form 4PDT, Current Rating 6 A, Electrical Connection Quick-Connect, Flat Pin Width 0.09 in, Number of Pins 14, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 5 A @ 240V, Contact Rating (DC) 5 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC Not Rated, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.4 in, Body Height 2.09 in

    graingerSKU: 2DW65, mscSKU: , zoro_no: G6382451, mongo_id: 65bbe8339a749db82277c2ce

Web Price
$68.69 / each
Qty

Product Details

5A @ 240V
Square
Square
1.4 in
1.1 in
2.09 in
1.4 in
1.38 in
0.86 in
24V DC
DC
24V DC
8501NR45, 8501NR45B
8501NR45, 8501NR45B
8501NR45, 8501NR45B
8501NR45, 8501NR45B
4PDT
4PDT
Silver Alloy
5 A @ 240V
5 A @ 28V
China
6 A
5A @ 28V
Quick-Connect
Tab
Enclosed
Green Indicator Relay Energised LED
0.09 in
1/3 hp
Not Rated
Not Rated
Not Rated
General Purpose Relay
131 Degrees F
300V AC, 30V DC
-40 Degrees F
Yes
Side
Plug In
Socket
14
14
-40-131°F
20 ms - pick-up || 20 ms - drop-out
1.63 in
1.71 in
1
Flat
0.9 W
0.9 W
No
No Test Button
No Button
Socket
20 msec
Enclosed
Square D 8501R Miniature Series
G
Socket / Square / 14 / 0.09 in
CE Certified, CSA Certified, UL Listed
Mechanical Flag
300 V AC; 30 V DC
