Home / General Purpose Relay, 24V DC Coil Volts, Square, 14 Pin, 4PDT

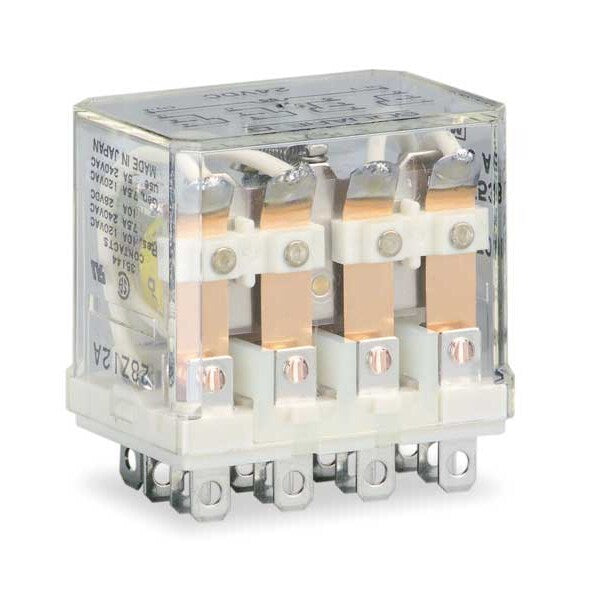

General Purpose Relay, 24V DC Coil Volts, Square, 14 Pin, 4PDT

General Purpose Relay, 24V DC Coil Volts, Square, 14 Pin, 4PDT

  • Schneider Electric
  • General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form 4PDT, Current Rating 15 A, Electrical Connection Quick-Connect, Flat Pin Width 0.18 in, Number of Pins 14, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 15 A @ 277V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC Not Rated, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.65 in, Body Height 1.07 in, Body Width 1.6 in

    graingerSKU: 2DW82, mscSKU: , zoro_no: G7445846, mongo_id: 65bbe85f22d7a989a98ee79a

Web Price
$56.99 / each
Qty

Product Details

15A @ 277V
Square
Square
Square
1.65 in
1.07 in
1.07 in
1.37 in
1.6 in
1.6 in
24V DC
DC
24V DC
8501NR34, 8501NR34B
8501NR34, 8501NR34B
8501NR34, 8501NR34B
8501NR34, 8501NR34B
4PDT
4PDT
Silver Alloy
10A @ 277VAC/28VDC
15 A @ 277V
10 A @ 28V
China
15 A
10A @ 28V
Quick-Connect
Tab
Enclosed
Spade Terminals, Standard Relay
0.18 in
RoHS 2011/65/EU Compliant
1/2 hp
Not Rated
Not Rated
Not Rated
General Purpose Relay
131 Degrees F
300V AC, 30V DC
-40 Degrees F
Yes
Plug In
Socket
14
14
-40-131°F
20 ms - pick-up || 20 ms - drop-out
1.65 in
1.65 in
1
Flat
14
1.6 W
1.6 W
No
No Test Button
No Button
Socket
20 msec
Enclosed
Square D 8501R Miniature Series
Mfr. No. 8501NR34
F
Socket / Square / 14 / 0.18 in
CE Certified, CSA Certified, UL Listed
Mechanical Flag
300 V AC; 30 V DC
